1979 Suzuki DS80 Rear Swinging ARM Diagram

← All diagrams

Find the part on the Rear Swinging ARM diagram for your 1979 Suzuki DS80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

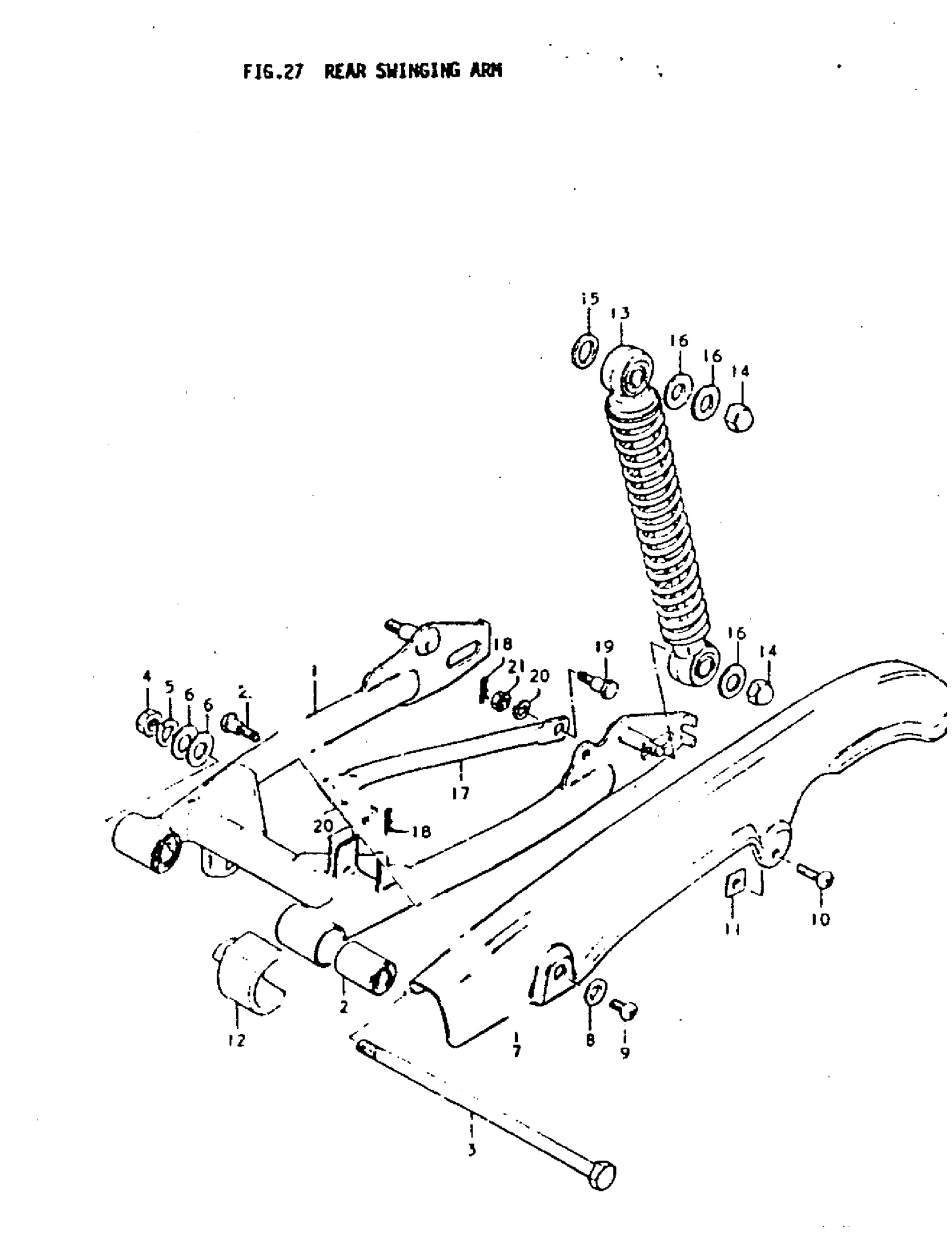

1979 Suzuki DS80 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 61100-46830-019.

61000-46201-019

1
Out of stock

2

BUSHING

09319-10024

2
Out of stock

3

SHAFT,RR SWGARM This part replaces 61211-46000.

61211-4600V

1
Out of stock

4

NUT This part replaces 08310-12108.

08310-00107

1
Out of stock

5

LOCK WASHER This part replaces 08321-21108.

08321-01107

1
Out of stock

6

WASHER This part replaces 08322-21108.

08322-01107

1
Out of stock

7

NO DESCRIPTION AVAILABLE This part replaces 61311-46200-019.

61311-46201-019

1
Out of stock

8

WASHER, FRONT

09169-06010

1
Out of stock

9

SCREW This part replaces 02112-06088.

02112-06087

1
Out of stock

10

SCREW This part replaces 02112-06128.

02112-06127

1
Out of stock

11

NUT

61316-43000

1
Out of stock

12

BUFFER CHAIN DE This part replaces 61273-46000.

61273-46001

1
Out of stock

13

NO DESCRIPTION AVAILABLE This part replaces 62100-46400.

62100-46401

2
Out of stock

14

NUT This part replaces 08313-11108.

08313-10107

4
Out of stock

15

WASHER This part replaces 08322-11128.

08322-01127

2
Out of stock

16

WASHER | 10.5X24X2.3

0916C-10001

—
Out of stock

17

NO DESCRIPTION AVAILABLE This part replaces 64311-46200.

64311-46200-019

1
Out of stock

18

CLIP This part replaces 09385-10001.

09385-10005

2
Out of stock

19

BOLT, REAR BRAKE PANEL

09111-08013

1
Out of stock

20

2

$2.28

In stock

21

NUT

09140-08008

2
Out of stock

22

BOLT, TORQUE LINK FRONT

09111-08015

1
Out of stock
