1972 Yamaha DS7 (DS7) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1972 Yamaha DS7 (DS7), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

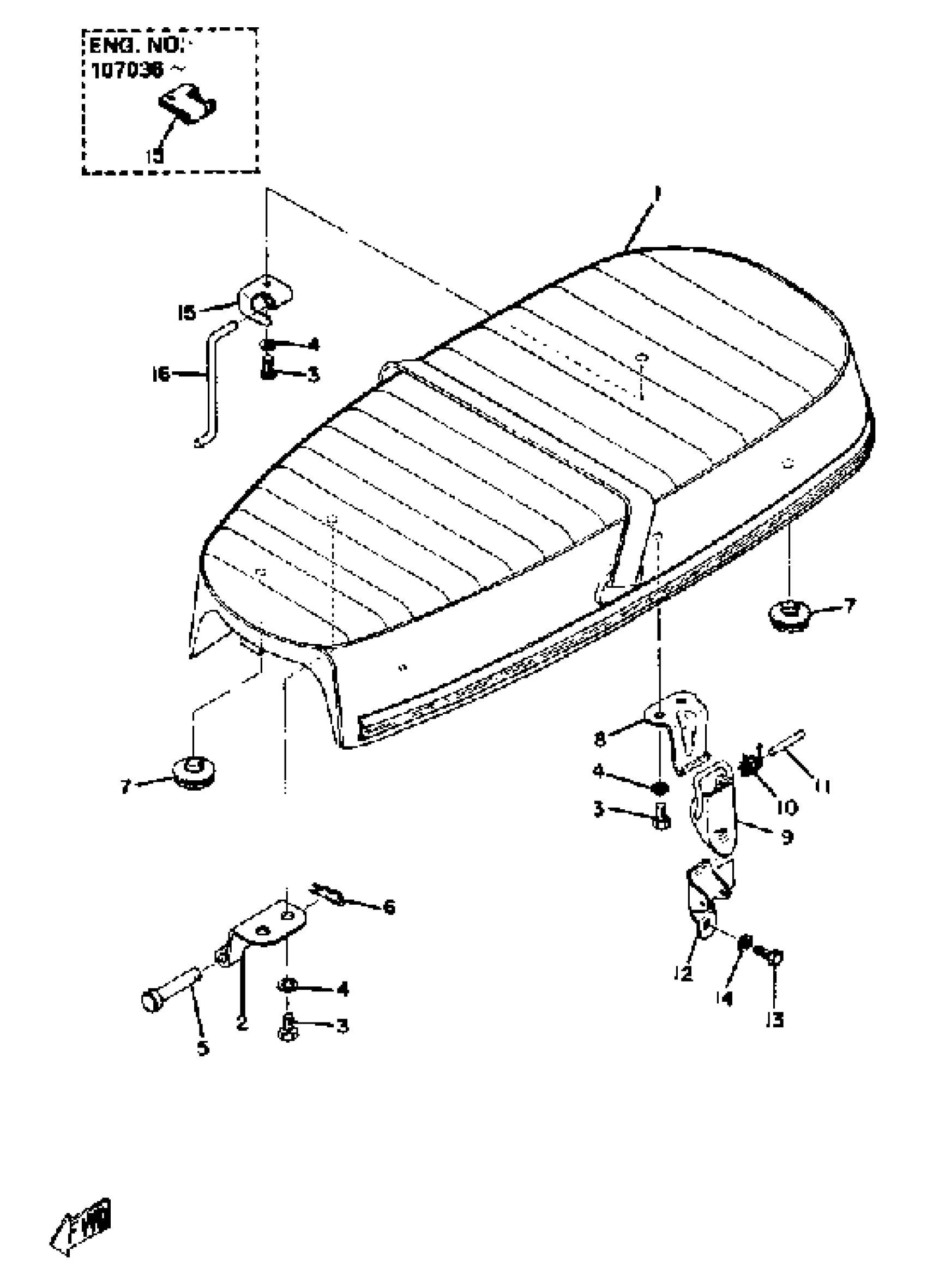

1972 Yamaha DS7 (DS7) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSEMBLY

360-24730-06-00

1
Out of stock

2

HINGE, SEAT

248-24726-00-33

1
Out of stock

3

BOLT (661)

97013-06012-00

1

$4.71

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

PIN, CLEVIS

91701-05055-00

1
Out of stock

6

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

7

PAD, SEAT

1L9-24741-00-00

1

$8.91

In stock

8

BRACKET, SEAT

278-24728-00-00

1
Out of stock

9

LEVER, SEAT

214-24776-00-33

1
Out of stock

10

. SPRING, TORSION

90508-10012-00

1
Out of stock

11

. PIN, SPECIAL SHAPE

90249-04068-00

1
Out of stock

12

BRACKET, SEAT

214-24718-00-00

1
Out of stock

13

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

14

WASHER, PLATE (371)

90201-06431-00

1
Out of stock

15

BRACKET, SEAT

(278-24748-00-00)

1
Out of stock

16

STOPPER

(278-24768-00-00)

1
Out of stock
