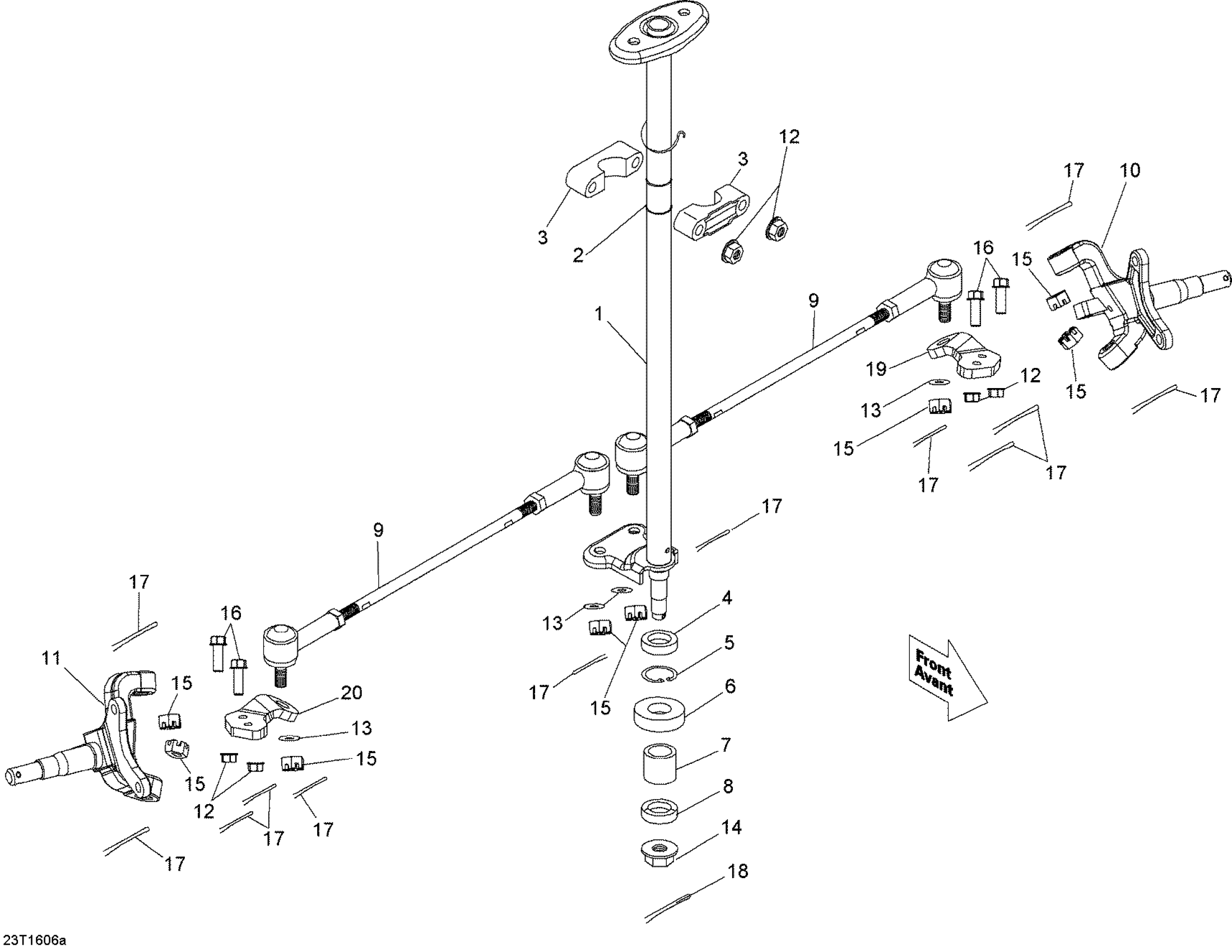

Can-Am DS 90 X, 2016 Steering Diagram

#

Description
Price

1

Steering Column, Black

V53200DGF08H

$80.57

2

Sleeve

V53217MAA020

$10.36

3

Steering Shaft Holder

V53434MAA020BK

$14.90

4

Oil Seal

V92101MAA000

$11.81

5

C-Circlip

V9452032000

$2.03

6

Radial Ball Bearing, 6002ZZ

A961006002ZZ

$21.61

7

Collar

V22112MAA010

$8.24

8

Oil Seal

V92102MAA000

$11.81

9

Tie-Rod Ass'y

V53180DGF03H

$164.15

10

LH Knuckle

V51215DGF05HLL

$136.54

11

RH Knuckle

V51210DGF04HLL

$135.04

12

Hex. Elastic Stop Nut M8

232581414

$0.54

13

Helicoidal Lock Washer M10 | XT Models

234101601

$1.06

14

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232571414

Unavailable

15

Lock Nut

V9035210000LL

$9.75

16

Hex. Flange Screw M8 X 35

207683544

$1.60

17

Cotter Pin

V9420117020LL

$6.16

18

Cotter Pin

V9420130032LL

$6.16

19

LH Tie Rod Plate

V51211DGF06H

$11.72

20

RH Tie Rod Plate

V51212DGF06H

$11.72
