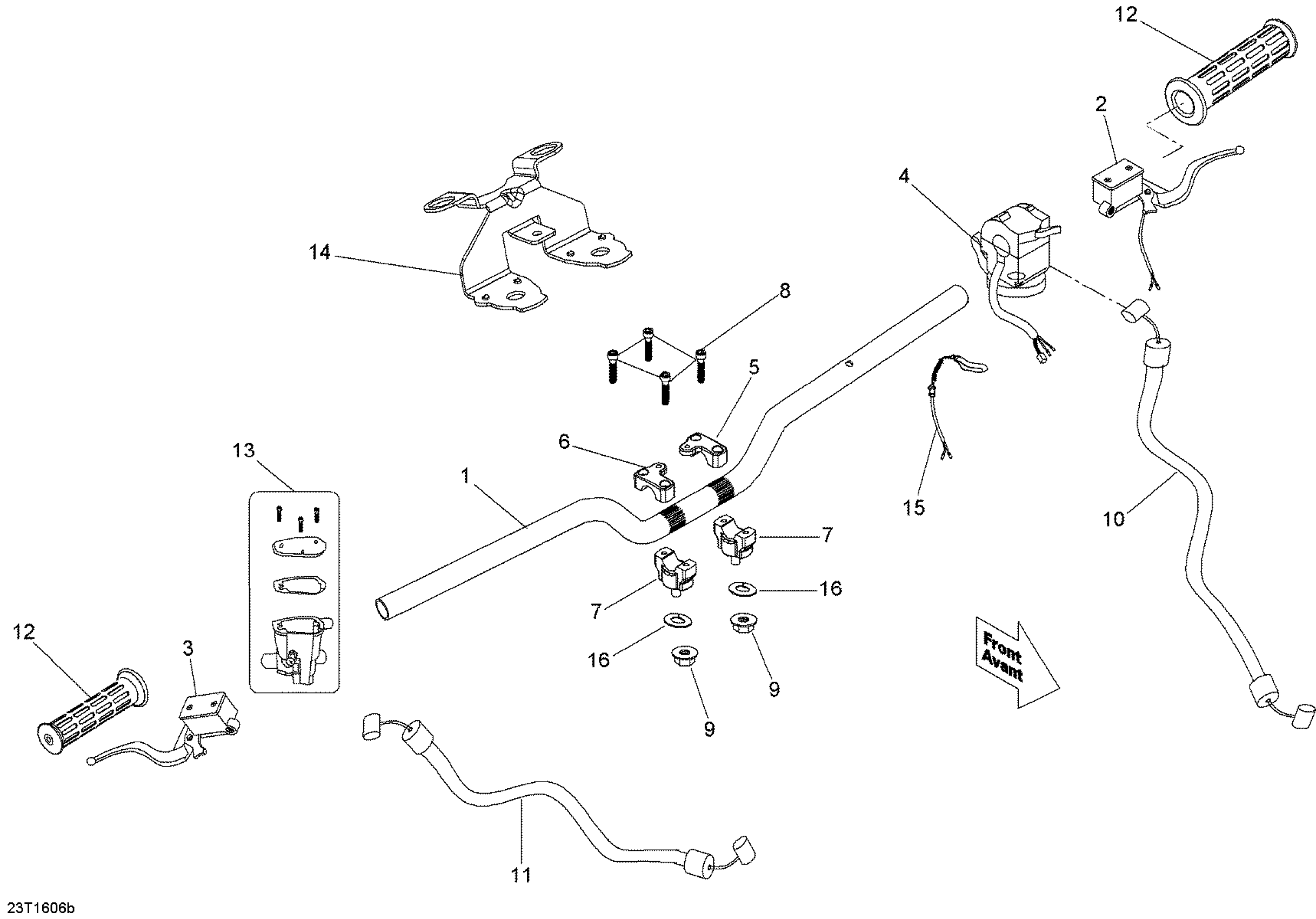

Can-Am DS 90 X, 2016 Handlebar Diagram

#

Description
Price

1

Handle Bar

V53100DGF06HLL

$59.97

2

LH Brake Lever

V53178DGF03HLL

$96.89

3

RH Brake Lever

V53179DGF02HLL

$161.51

4

Multi-Fonction Switch

V35160DGF04HLL

$87.66

5

LH Upper Handle Bar Clamp

V53170MAA020BKLL

$18.43

6

RH Upper Handle Bar Clamp

V53175MAA020BKLL

$18.43

7

Lower Handle Bar Clamp

V45517DGF04HLL

$9.29

8

Hexagonal Bolt M6 X 25

V9100006025LL

$3.98

9

Elastic Flange Nut M10

232501416

$1.25

10

Choke Cable

V43316DGF060LL

$23.05

11

Throttle Cable

V17910DGF03HLL

$32.28

12

Handle Grip

V53140DGF000BK

$18.43

13

Housing Throttle Ass.

V53177CEK010BKLL

$115.35

14

Support

V50223DGF03H

$17.66

15

Tether Cord

V35110DGF00H

Unavailable

16

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92
