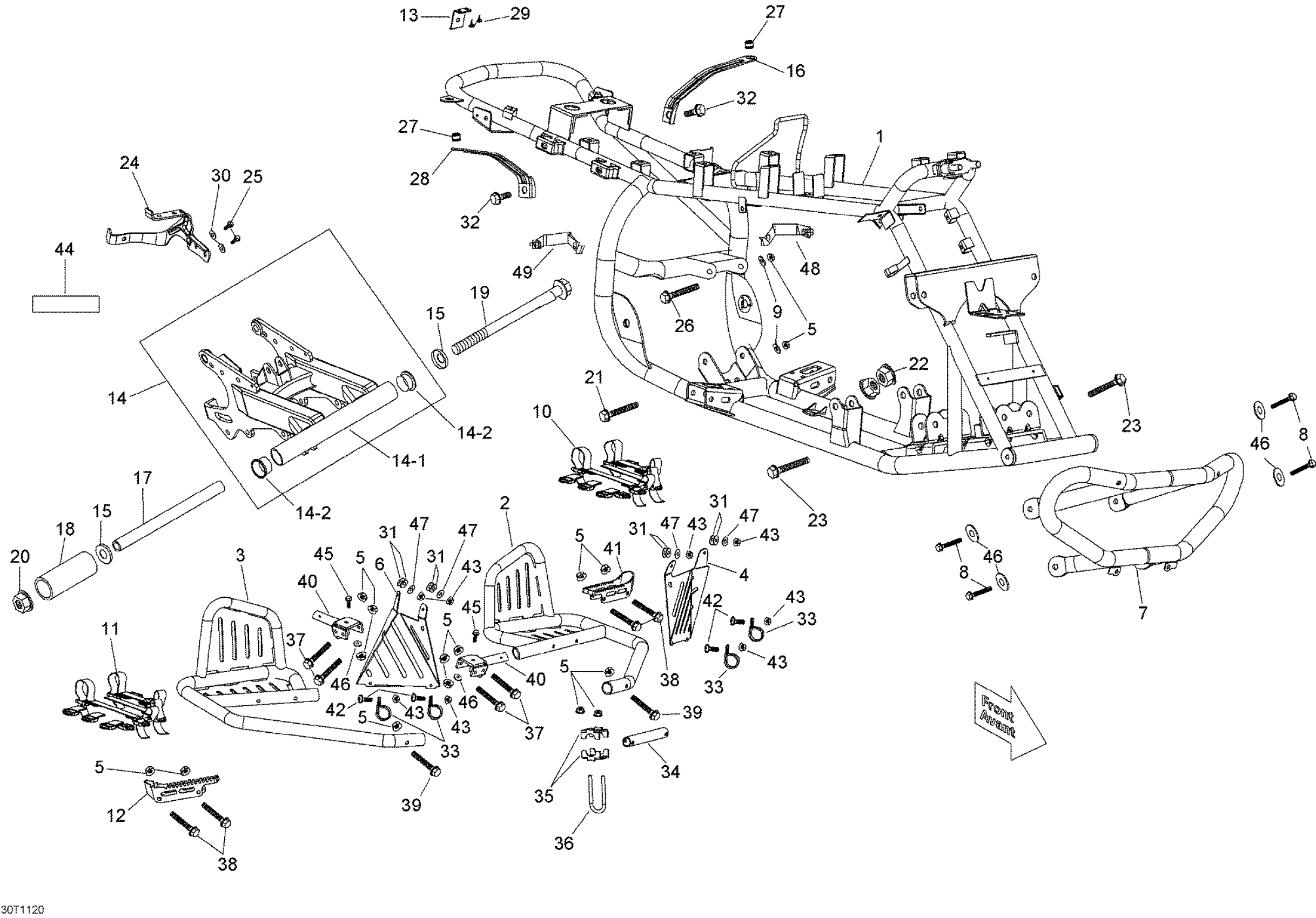

Can-Am DS 90 X, 2011 Frame Diagram

#

Description
Price

1

FRAME COMP - Call your local BRP dealership

V50100DGF06HLL

Unavailable

2

LH Bar

V50099DGF10HLL

$218.43

3

DH Bar

V50107DGF10HLL

$239.97

4

LH Foot Protector

V50108DGF04HLL

$17.66

5

Hex. Elastic Stop Nut M8

232581414

$0.47

6

RH Foot Protector

V50109DGF03HLL

$32.28

7

Front Bumper

V50270DGF07H

$159.97

8

Hex. Flange Screw

V9600008014

$3.98

9

Lock Washer 8 mm, Stainless

234181601

$0.46

10

LH Net

V70002DGF10HLL

$40.74

11

RH Net

V70001DGF10HLL

$40.74

12

Footrest

V50112DGF04HLL

$32.28

13

Reflector Bracket

V50266DGF020

$8.05

14

Swing Arm

V52370DGF16H

$253.82

14-1

Not Available As Spare Parts

XXX

Unavailable

14-2

Bushing

V22135MAA000

$11.06

15

Swing Arm Seal Cover

V11400MAA000

$10.98

16

LH Upper Fixed Plate

V50260DGF050BK

$19.20

17

Swing Arm Spacer

V44170MAA000

$18.43

18

Rubber Sleeve

V53436MAA020LL

$12.17

19

Hex. Flange Bolt

V9600014290010LL

$14.75

20

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232571414

Unavailable

21

Hex. Flange Screw

V9600008100

$6.45

22

Elastic Flange Nut M10

232501416

$1.25

23

Hex. Flange Screw M10 X 55

207605544

$2.78

24

Chain Cover Braket

V50268DGF040

$7.06

25

Hex. Flange Screw M6 X 12

207661244

$1.70

26

Hex. Flange Screw

V9600108125

$6.45

27

Rubber Cushion

V85278DGF020LL

$4.06

28

RH Upper Fixed Plate

V50261DGF050BK

$19.20

29

Tapping Screw

V9309304012LL

$2.31

30

Lock Washer Helical M6

234161601

$0.92

31

Rubber Cushion | Black Model

V15235DGF030

Unavailable

32

Hex. Flange Screw

207681244

$0.69

33

Clip

V50110DGF05HLL

$12.91

34

Connector

V50103DGF01H

$13.83

35

Clip

V50106DGF02H

$11.98

36

U-Bolt

V50105DGF02H

$9.22

37

Hex. Flange Bolt M8 X 68

V9600008068

$3.68

38

Hex. Flange Screw M8 X 45

207684544

$3.68

39

Hex. Flange Screw M8 X 40

207684044

$1.25

40

Support

V50118DGF05H

$18.43

41

Footrest

V50127DGF02HLL

$32.28

42

Round Head Screw

V930000601501LL

$2.31

43

Elastic Stop Nut M6

232561414

$1.55

44

Drive Chain Label

V87606DGF00HLL

$8.45

45

Hex. Flange Screw M8 X 20

207682044

$0.92

46

Washer

V941010816015LL

$4.98

47

WASHER - Call your local BRP dealership

V94101062201001

Unavailable

48

LH Support Fender

V50267DGF01H

$17.66

49

RH Support Fender

V50275DGF01H

$17.66
