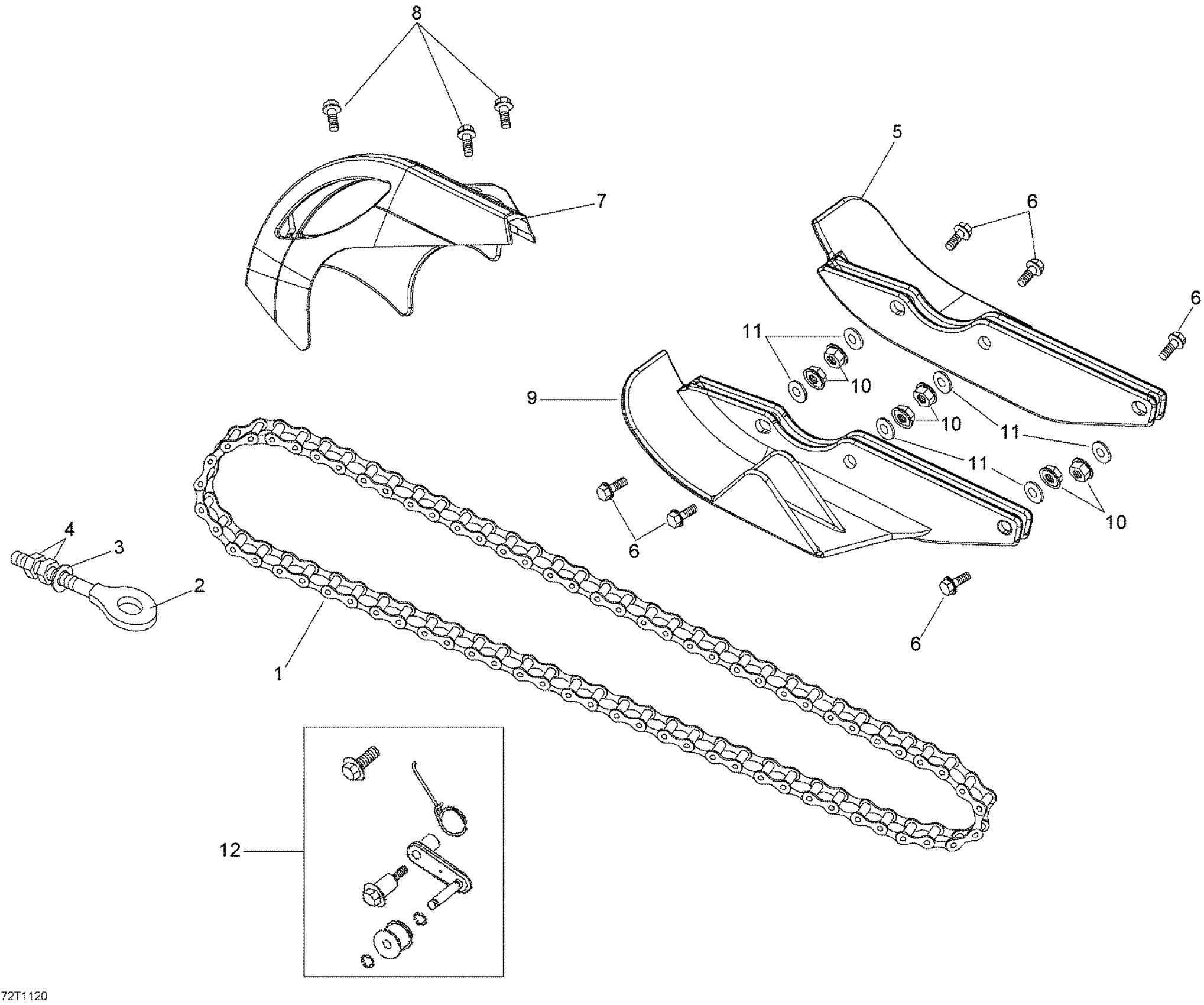

Can-Am DS 90 X, 2011 Chain Diagram

#

Description
Price

1

Chain

V14428DGF01HLL

$64.58

2

Chain Adjuster

V50205DGF010LL

$8.45

3

Washer

V941010816015LL

$4.98

4

Hexagonal Nut M8

V940010800001LL

$2.31

5

LH Skid

V80118DGF00H

$41.51

6

Hex. Flange Screw M8 X 25

207682534

$1.06

7

Chain Cover

V83750DGF020LL

$23.05

8

Round Head Screw

V930000601201LL

$2.31

9

RH Skid

V80119DGF01H

$50.74

10

Hex. Elastic Stop Nut M8

232581414

$0.47

11

Washer

V941010816015LL

$4.98

12

Chain Tensioner

V72301DGF000LL

$27.66
