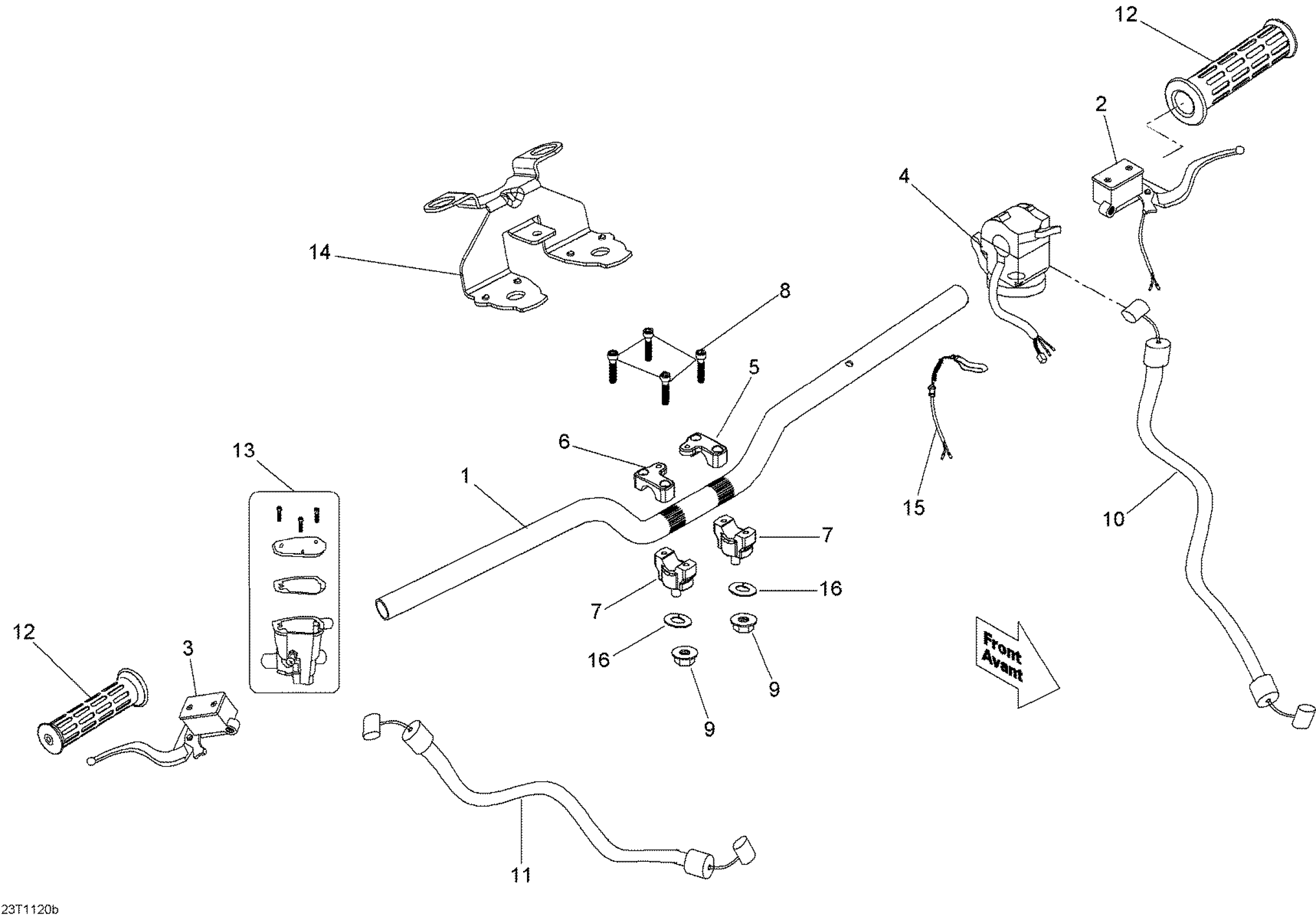

Can-Am DS 90 X, 2011 Handlebar Diagram
#
Description
Price
1
Handle Bar
V53100DGF06HLL
Unavailable
2
LH Brake Lever
V53178DGF03HLL
Unavailable
3
RH Brake Lever
V53179DGF02HLL
Unavailable
4
Multi-Fonction Switch
V35160DGF04HLL
Unavailable
5
LH Upper Handle Bar Clamp
V53170MAA020BKLL
Unavailable
6
RH Upper Handle Bar Clamp
V53175MAA020BKLL
Unavailable
7
Lower Handle Bar Clamp
V45517DGF04HLL
Unavailable
8
Hexagonal Bolt M6 X 25
V9100006025LL
Unavailable
9
Elastic Flange Nut M10
232501416
Unavailable
10
Choke Cable
V43316DGF060LL
Unavailable
11
Throttle Cable
V17910DGF03HLL
Unavailable
12
Handle Grip
V53140DGF000BK
Unavailable
13
Housing Throttle Ass.
V53177CEK010BKLL
Unavailable
14
Support
V50223DGF03H
Unavailable
15
Tether Cord
V35110DGF00H
Unavailable
16
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
