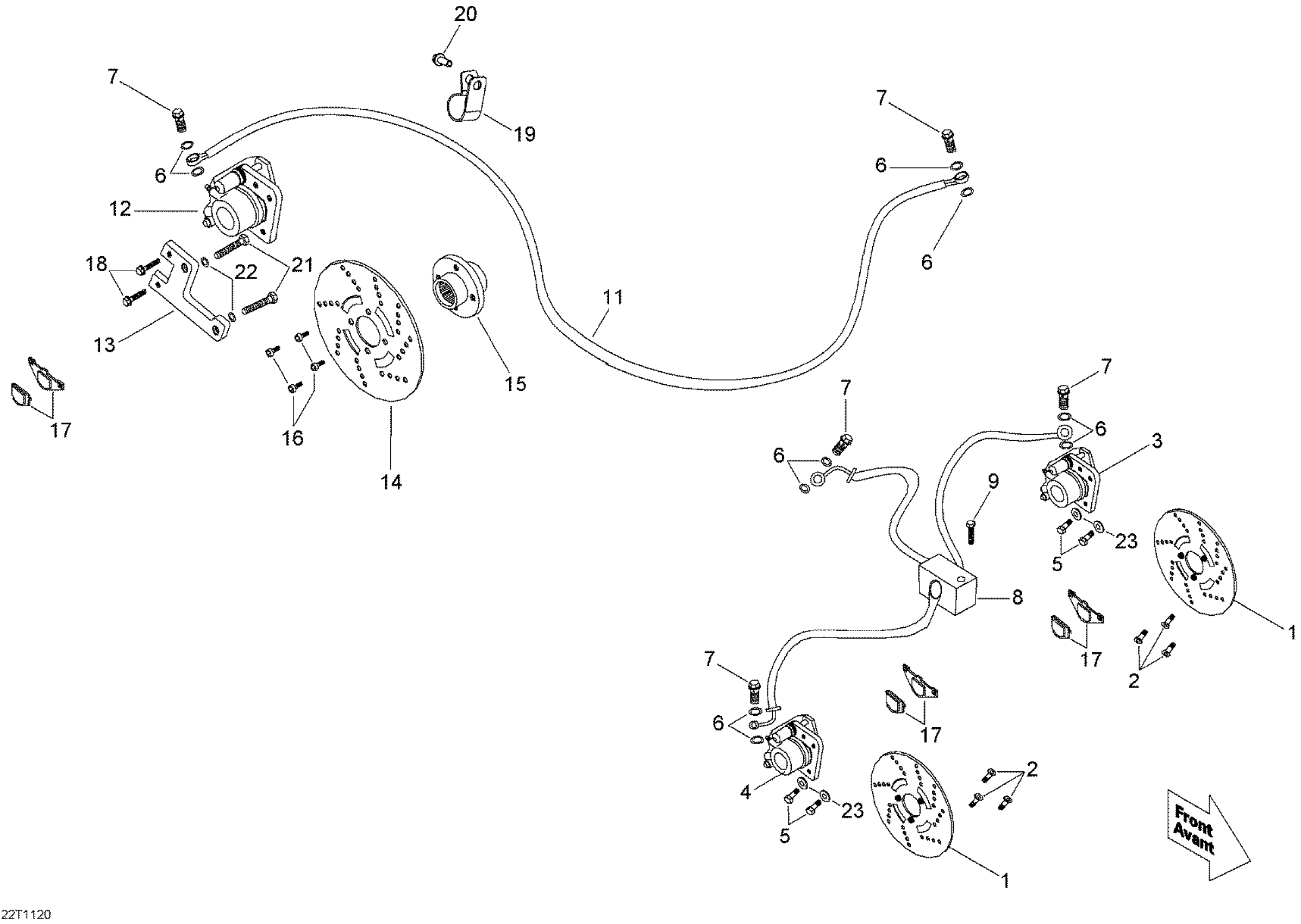

Can-Am DS 90 X, 2011 Brakes Diagram

#

Description
Price

1

Front Brake Disk

V45111CEK000LL

$115.35

2

Front Brake Disc Bolt

V9010508024

$10.14

3

LH Front Caliper

V45222DGF01HLL

$193.82

4

RH Front Caliper

V45221DGF01HLL

$193.82

5

Hex. Flange Screw M8 X 20

207682044

$0.92

6

Washer

V46964MAC000

$7.37

7

Bolt

V46963MAC020LL

$9.22

8

3 Way Brake

V46966DGF11HLL

$166.12

9

Hex. Flange Screw M6 X 25

207662544

$0.53

11

Boyau*Brake Hose

V46964DGF04HLL

$106.12

12

Rear Caliper

V45200MAC000LL

$244.58

13

Rear Caliper Bracket

V50295MAC020

$32.28

14

Rear Brake Disc

V45121MAC000

$129.20

15

Rear Brake Disc Bracket

V45122MAC000

Unavailable

16

Hexagonal Socket Bolt

A9100006012K

$0.69

17

Brake Pad Kit

V45151DGF00HBKLL

$36.12

18

Hex. Flange Screw M8 X 25

207682544

$0.90

19

Clip

V50126DGF00H

$11.98

20

Hex. Flange Screw M6 X 12

207661244

$1.70

21

Hex. Screw

V9200012050

$7.60

22

Spring Washer

V9411112000

$2.31

23

Washer

V941010816015LL

$4.98
