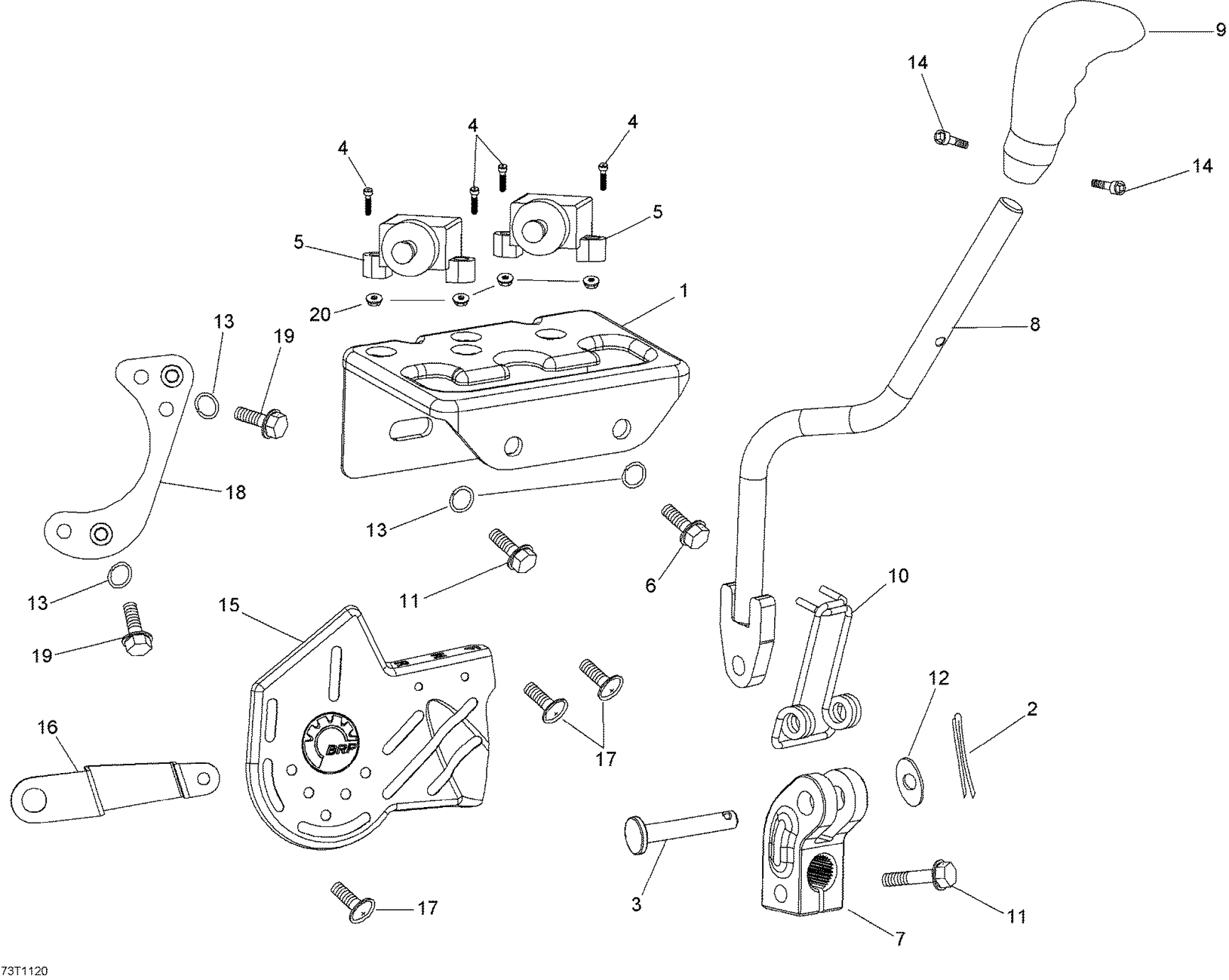

Can-Am DS 90 X, 2011 Shift Lever Diagram

#

Description
Price

1

Shift Plate

V72101DGF01H

$59.97

2

Cotter Pin

V9420130032LL

$6.45

3

Pin

V50226MAF040

$8.45

4

PAN HEAD PHILLIPS BOLT M5 X 15 - Call your local BRP dealership

V9350005015

Unavailable

5

Switch

V35152DGF060

$78.43

6

Hex. Flange Screw M6 X 16

207661644

$0.61

7

Support Shifter

V72315MAD040

$19.20

8

Shifter

V72314DGF050LL

$23.05

9

Handle

V72201CEK040LL

$12.91

10

Spring

V54294MAF030LL

$13.83

11

Hex. Flange Screw M6 X 20

207662044

$1.66

12

Washer

V941010816015LL

$4.98

13

Lock Washer Helical M6

234161601

$0.92

14

Socket Head Screw

V9105005006

$3.98

15

Front Chain Guard

V50122DGF03HLL

$36.12

16

Chain Guard Bracket

V50124DGF00H

$4.06

17

Round Head Bolt M6 X 12, White

V9300006012BLL

$3.85

18

Rear Chain Guard

V50242DGF02H

$12.91

19

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

20

Lock Washer Helical M6

234161601

$0.92
