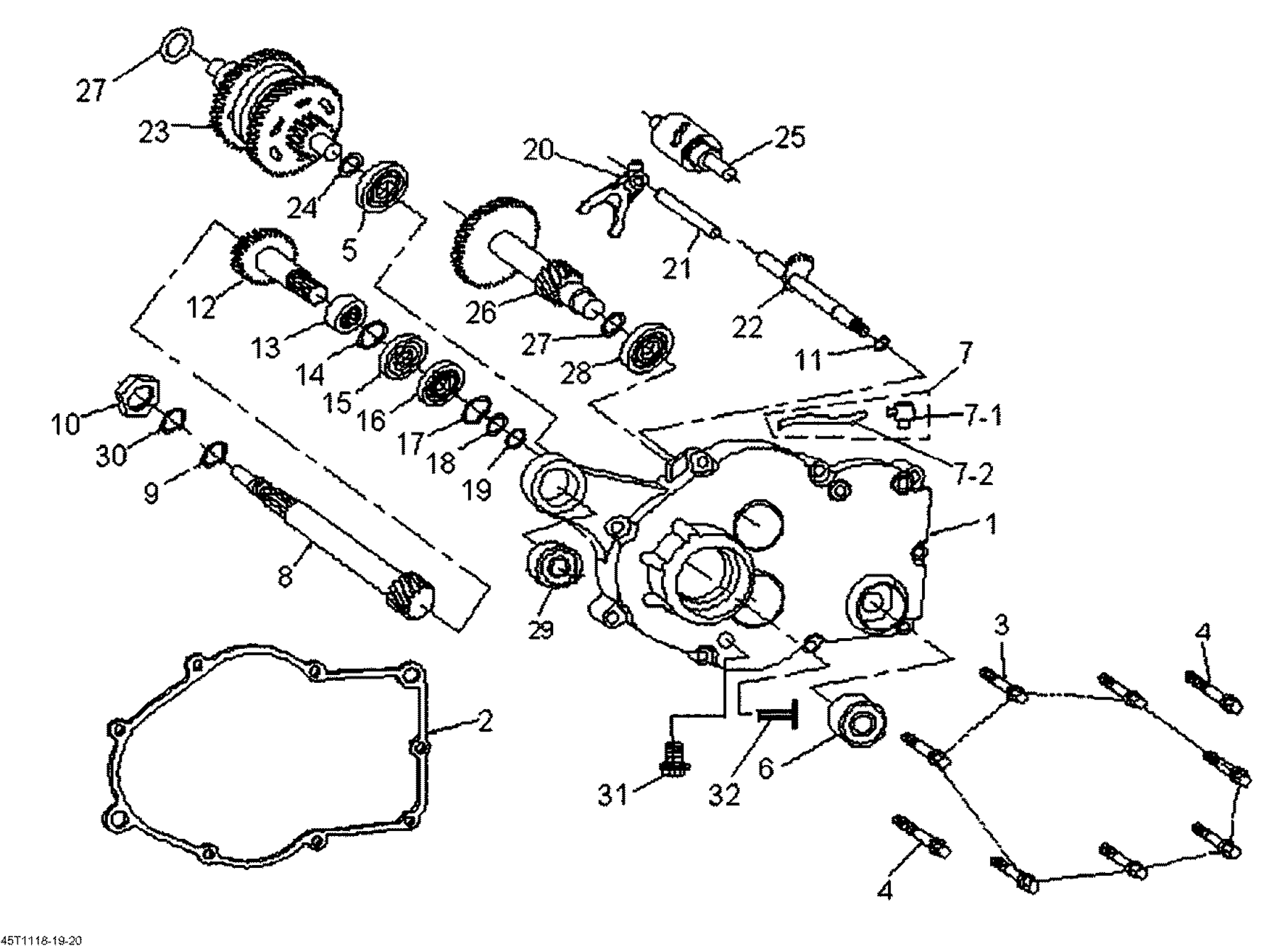

Can-Am DS 90 X, 2011 Gear Box Diagram

#

Description
Price

1

Cover

V213004DMR030LL

$175.35

2

Transmission Cover Gasket

V213954DMR020

$14.75

3

Hex. Flange Screw M6 X 35

207663544

$0.74

4

Hex. Flange Screw M6 X 40

207664044

$2.18

5

Ball Bearing

V961006202310

$17.66

6

Oil Seal

V92104MAA000

$8.45

7

Breather

V11220CJF020

$23.05

7-1

Not Available As Spare Parts

XXX

Unavailable

7-2

Not Available As Spare Parts

XXX

Unavailable

8

Primary Drive Gear

V234114DMR00

$62.28

9

Circlip

V9451017000

$12.91

10

Nut

V9400310000

$3.98

11

Circlip

V9451013000

$11.98

12

Main Shaft

V234303XGR01

$123.82

13

Needle Bearing

V91130253315

$35.14

14

Circlip

V9453032000

$12.91

15

Oil Seal

V912044DM000

$8.45

16

Bearing

V961506004010

$36.89

17

Circlip

V9453042000

$12.91

18

Flat Washer

V941012028010

$7.37

19

Circlip

V9451019000

$12.91

20

Shifting Fork

V242114DMR000

$50.74

21

Pin

V242414DMR01

$36.89

22

Shift Shaft

V246104DMR000

$46.12

23

Reverse Axle

V234504DMR00

$119.97

24

Flat Washer

V941011522010

$8.45

25

Shift Drum

V243014DMR000

$161.51

26

Reverse Axle

V234204DMR00

$115.35

27

Flat Washer

V941011218010

$8.45

28

Ball Bearing

V961006201310

$17.66

29

Rubber Bushing

V112034DM000

$8.49

30

O-Ring

V91304DGF000

$3.08

31

Hex. Flange Screw

207681244

$0.69

32

Main Shaft

V234303XGR01

$123.82
