Description

Price

1

CVT Cover

V13341CJF020LL

$133.82

2

Dowel Pin

A9430110140

$4.60

3

Cvt Cover Gasket

V11359CJF010

$16.89

4

Hex. Flange Screw M6 X 20

207662044

$1.66

5

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

6

Spring Torsion

V282814DM00

$14.75

7

Washer

V9410415010LL

$7.37

8

Circlip

V9451015000

$2.75

9

Rubber Bushing

V282544DM00

$17.66

10

Kick Shaft

V282504DM02LL

$69.20

11

Pinion Ass'y, Kick

V2823A4DM02

$59.97

12

Kick Starter

V28301DGF020LL

$11.06

13

Shaft Idle Gear

V281024DM02

$19.97

14

CVT Duct

V11345DGF030LL

$23.05

15

Clip

V95002025030010LL

$12.91

16

Bearing

V96100638ZZ

$45.35

17

Hex. Flange Screw M6 X 25

207662544

$0.53

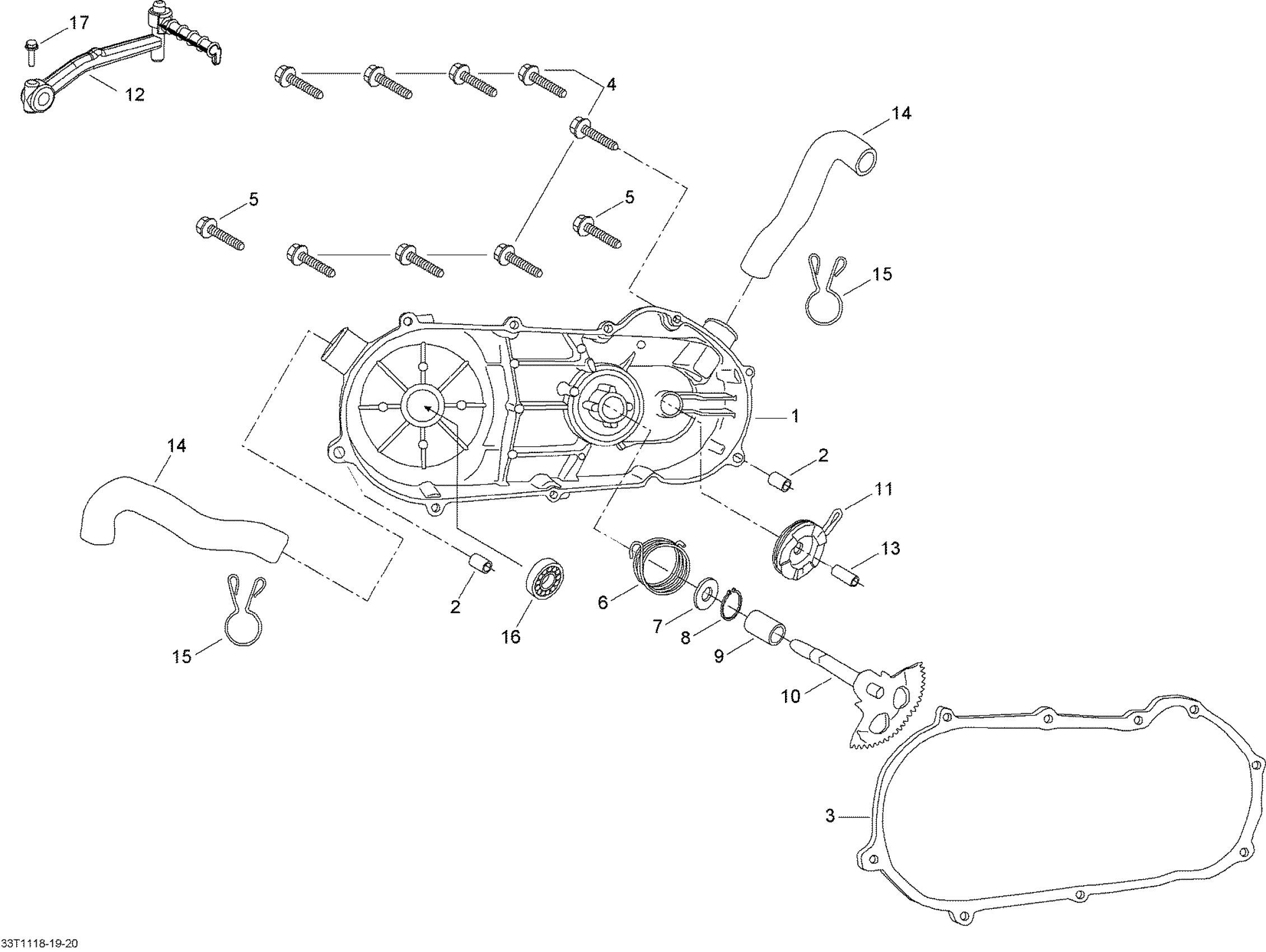

Can-Am DS 90 X, 2011 CVT Cover And Kick Stater Diagram
