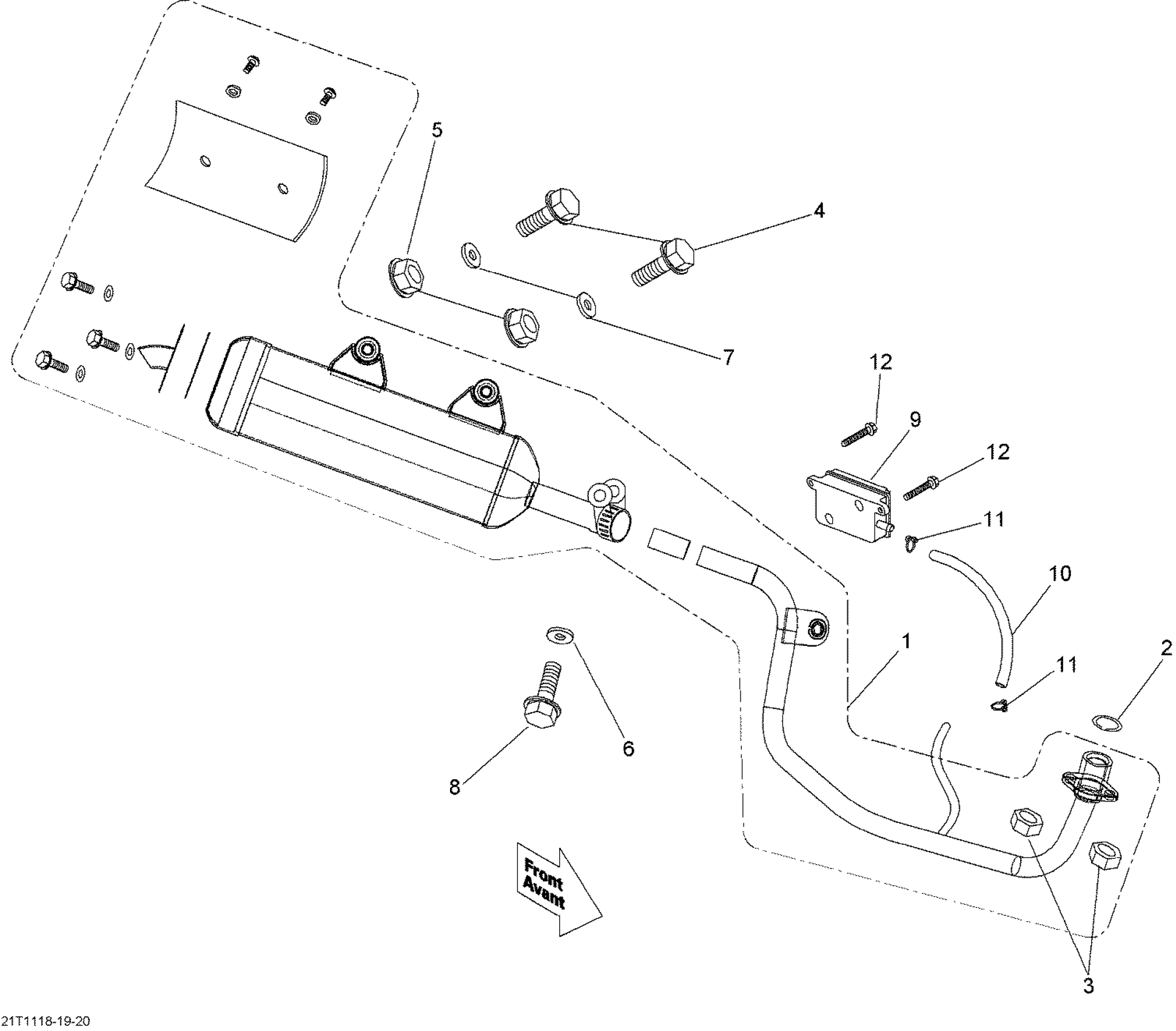

Can-Am DS 90 X, 2011 Exhaust System Diagram

#

Description
Price

1

Muffler

V18301DGF05HLL

$323.05

2

Exhaust Pipe Gasket

V18291MAD000

$15.22

3

Nut M6

V9400106000LL

$6.45

4

Hex. Flange Screw M8 X 35

207683544

$1.39

5

Hex. Elastic Stop Nut M8

232581414

$0.47

6

Lock Washer 8 mm, Stainless

234181601

$0.46

7

Washer

V941010816015LL

$4.98

8

Hex. Flange Screw M8 X 40

207684044

$1.25

9

Air Cleaner Box

V18350DGF02HLL

$78.43

10

Air Hose

V18401DGF02HLL

$17.66

11

Clip

V0940115101

$5.52

12

Hex. Flange Screw M6 X 16

207661644

$0.61
