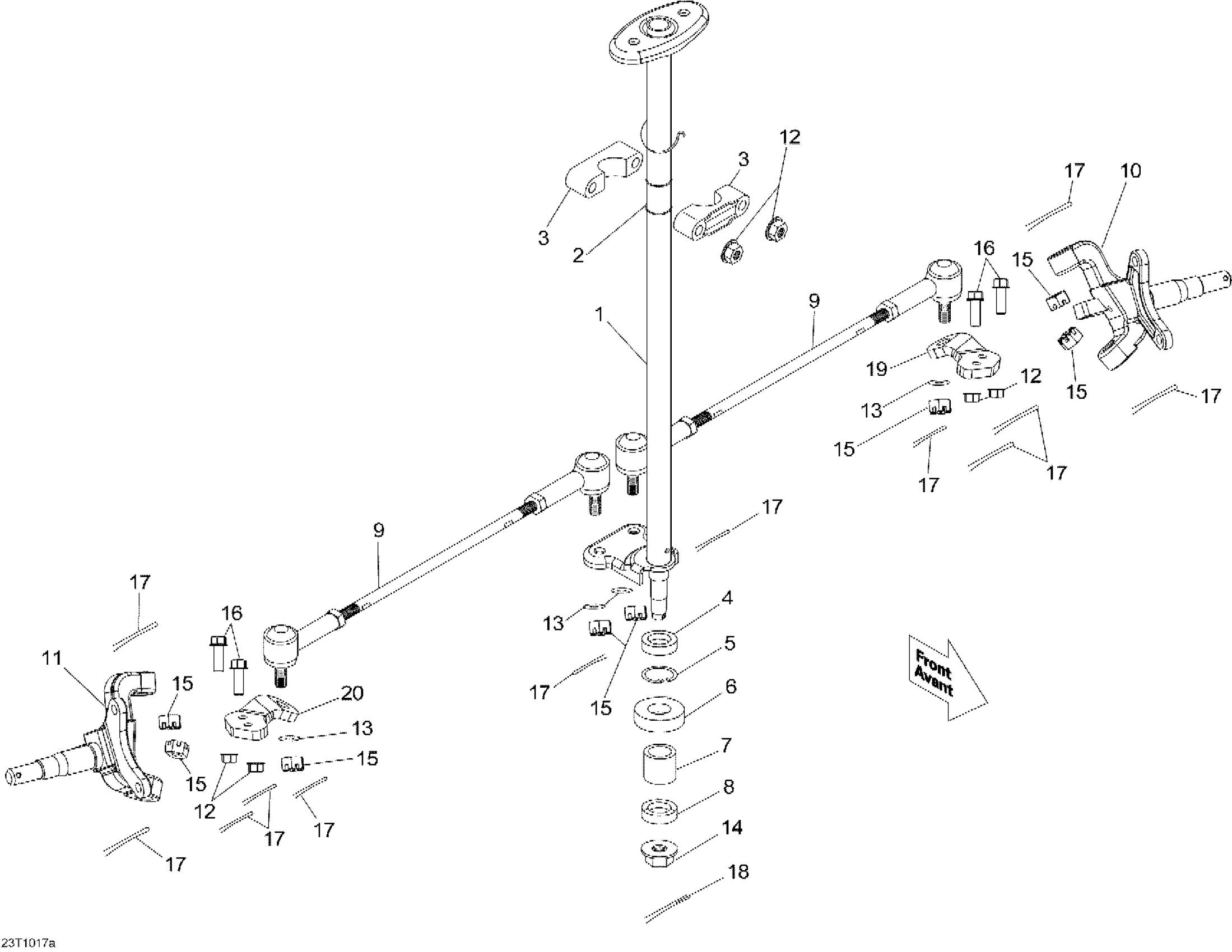

Can-Am DS 90 X, 2010 Steering Diagram
#
Description
Price
2
Sleeve
V53217MAA020
Unavailable
3
Steering Shaft Holder
V53434MAA020BK
Unavailable
4
Oil Seal
V92101MAA000
Unavailable
5
C-Circlip
V9452032000
Unavailable
6
Radial Ball Bearing, 6002ZZ
A961006002ZZ
Unavailable
7
Collar
V22112MAA010
Unavailable
8
Oil Seal
V92102MAA000
Unavailable
12
Hex. Elastic Stop Nut M8
232581414
Unavailable
13
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
14
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232571414
Unavailable
15
Lock Nut
V9035210000LL
Unavailable
17
Cotter Pin
V9420117020LL
Unavailable
18
Cotter Pin
V9420130032LL
Unavailable
