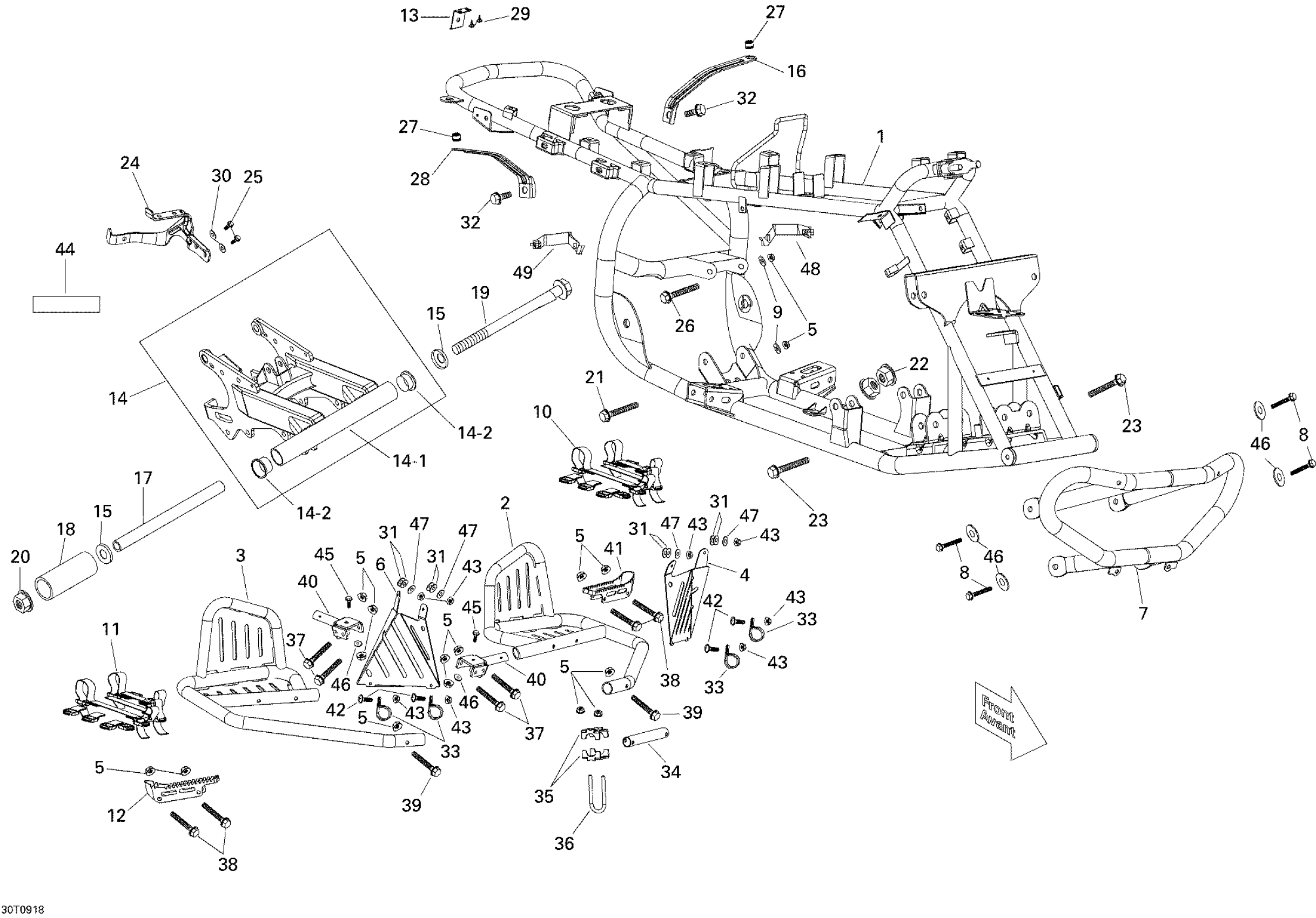

Can-Am DS 90 X, 2009 Frame Diagram

#

Description
Price

1

Frame

V50100DGF03H

Unavailable

2

LH Bar

V50099DGF10HLL

$211.91

3

DH Bar

V50107DGF10HLL

$226.84

4

LH Foot Protector

V50108DGF04HLL

$16.39

5

Hex. Elastic Stop Nut M8

232581414

$0.54

6

RH Foot Protector

V50109DGF03HLL

$27.58

7

Front Bumper

V50270DGF07H

$146.29

8

Hex. Flange Screw

V9600008014

$3.29

9

Lock Washer 8 mm, Stainless

234181601

$0.52

10

LH Net

V70002DGF10HLL

$39.52

11

RH Net

V70001DGF10HLL

$39.52

12

Footrest

V50112DGF04HLL

$32.06

13

Reflector Bracket

V50266DGF020

$7.81

14

Swing Arm

V52370DGF16H

$241.01

14-1

Not Available As Spare Parts

NASP/NDPR

Unavailable

14-2

Bushing

V22135MAA000

$10.85

15

Swing Arm Seal Cover

V11400MAA000

$10.37

16

LH Upper Fixed Plate

V50260DGF050BK

$18.63

17

Swing Arm Spacer

V44170MAA000

$17.88

18

Rubber Sleeve

V53436MAA020LL

$11.81

19

Hex. Flange Bolt

V9600014290010LL

$14.34

20

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232571414

Unavailable

21

Hex. Flange Screw

V9600008100

$5.90

22

Elastic Flange Nut M10

232501416

$1.43

23

Hex. Flange Screw M10 X 55

207605544

$3.19

24

Chain Cover Braket

V50268DGF040

$6.85

25

Hex. Flange Screw M6 X 12

207661244

$1.96

26

Hex. Flange Screw

V9600108125

$5.90

27

Rubber Cushion

V85278DGF020LL

$3.94

28

RH Upper Fixed Plate

V50261DGF050BK

$18.63

29

Tapping Screw

V9309304012LL

$1.67

30

Lock Washer Helical M6

234161601

$1.06

31

Cushion Rubber

V15235DGF030LL

$1.97

32

Hex. Flange Screw

207681244

$0.79

33

Clip

V50110DGF05HLL

$12.34

34

Connector

V50103DGF01H

$12.64

35

Clip

V50106DGF02H

$11.33

36

U-Bolt

V50105DGF02H

$8.24

37

Hex. Flange Bolt M8 X 68

V9600008068

$3.33

38

Hex. Flange Screw M8 X 45

207684544

$3.57

39

Hex. Flange Screw M8 X 40

207684044

$1.43

40

Support

V50118DGF05H

$17.88

41

Footrest

V50127DGF02HLL

$32.06

42

Round Head Screw

V930000601501LL

$1.67

43

Elastic Stop Nut M6

232561414

$1.78

44

Drive Chain Label

V87604DGF00H

Unavailable

45

Hex. Flange Screw M8 X 20

207682044

$1.06

46

Washer

V941010816015LL

$4.09

47

WASHER - Call your local BRP dealership

V94101062201001

Unavailable

48

LH Support Fender

V50267DGF01H

$16.39

49

RH Support Fender

V50275DGF01H

$16.39
