Description

Price

1

Front Tire

V42711DGF01HLL

$103.70

2

Rear Tire

V42712DGF01HLL

$88.03

3

Front Rim

V42701DGF01HLL

$146.24

4

Rear Rim

V42702DGF02HLL

$180.99

5

Rim Valve

V42751MAA000LL

$18.63

6

Front Hub

V44650CEK010LL

$162.66

7

Rear Wheel Axle Fixed Bracket

V44630CEK010SLLL

$72.36

8

Auminium Nut M10

V9030210017LL

$9.75

9

Washer

V55002MAA010LL

$13.40

10

Castle Nut M14

V9405214000LL

$6.21

11

Cotter Pin

V9420130032LL

$6.16

12

Rear Wheel Washer

V55002MEM010ZCLL

$12.34

13

Rubber Cap

V53456CEK030LL

$12.79

14

Hex. Flange Screw M6 X 10 | Not Illustrated

A9600006010

$5.90

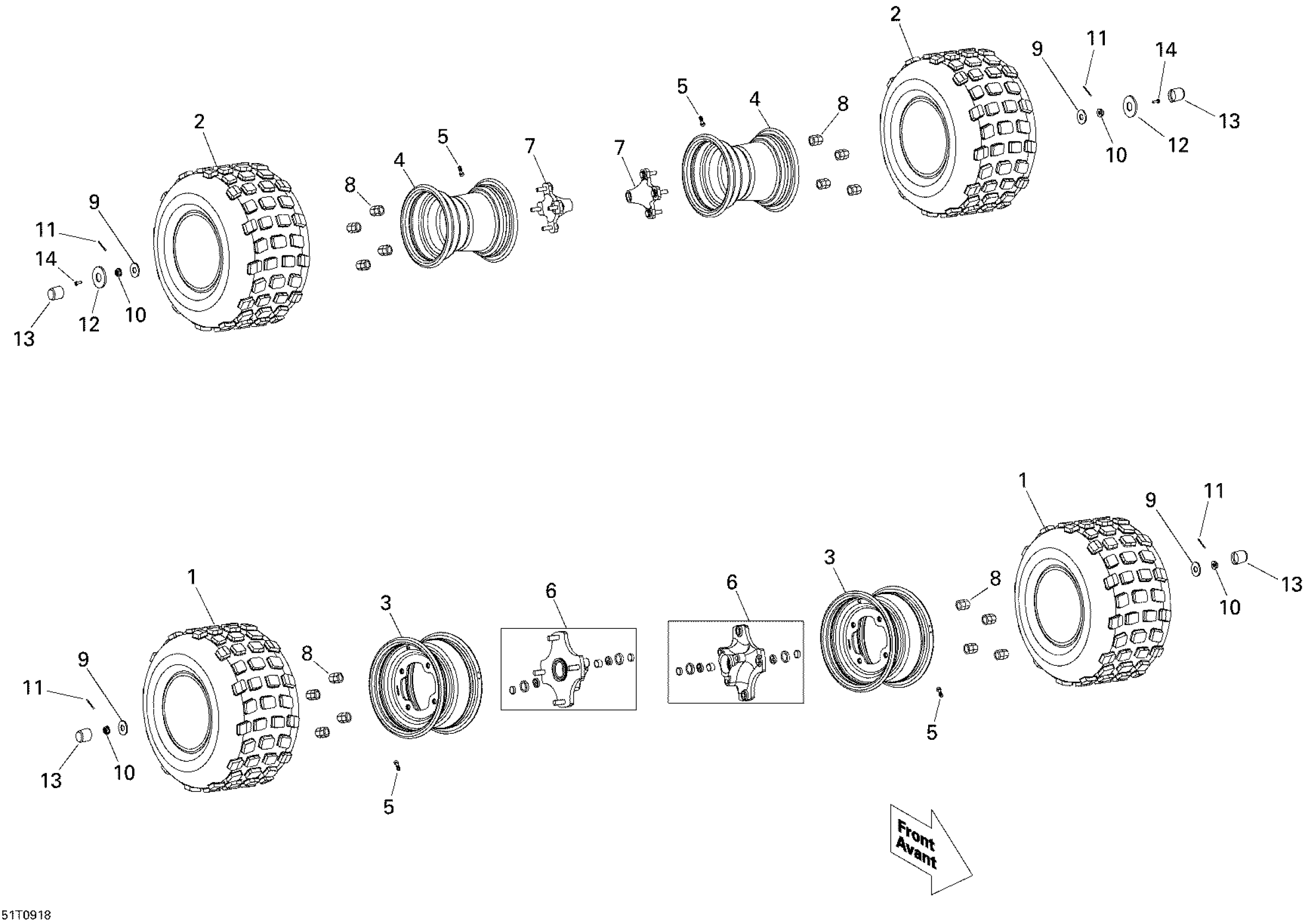

Can-Am DS 90 X, 2009 Wheels And Tires Diagram
