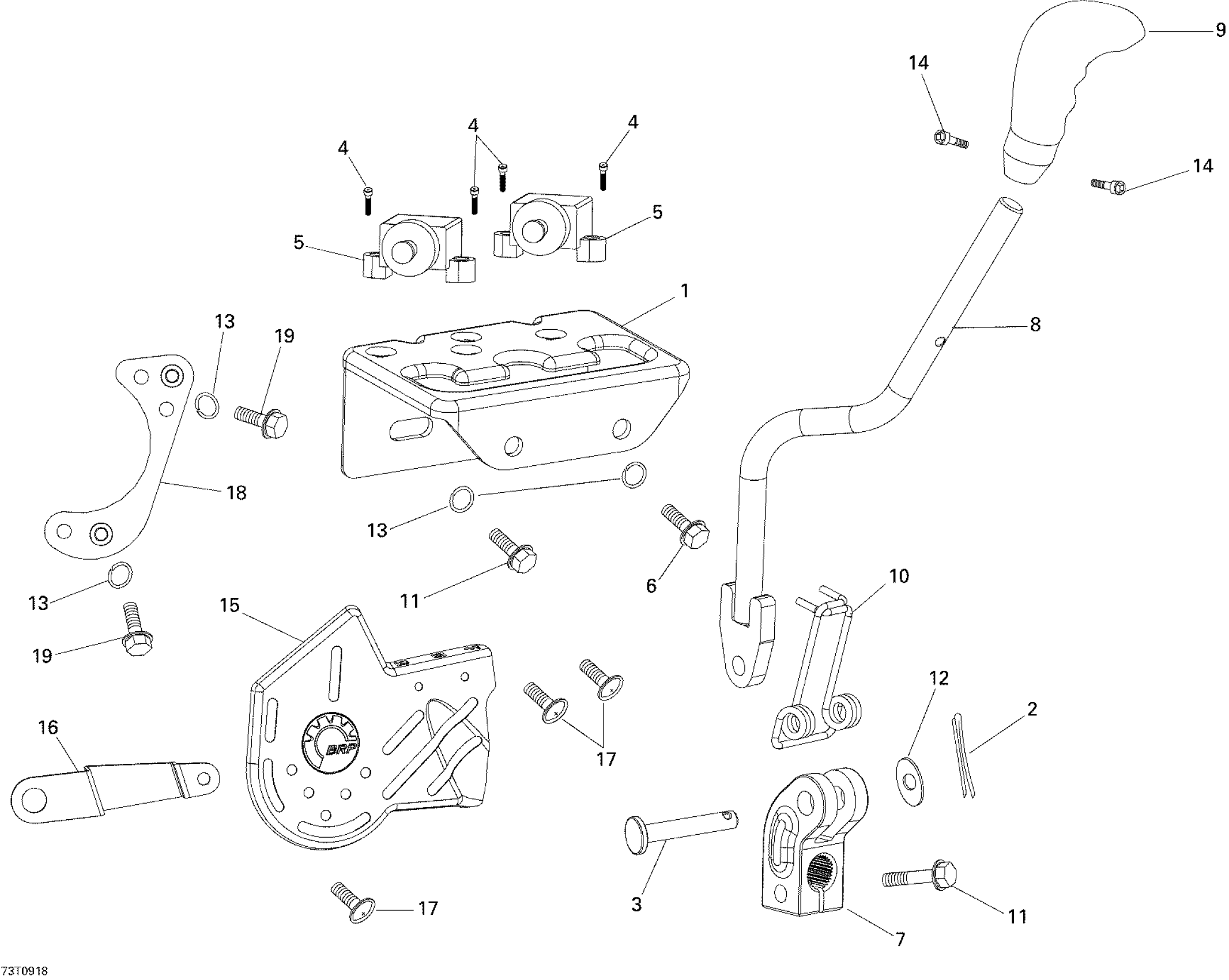

Can-Am DS 90 X, 2009 Shift Lever Diagram

#

Description
Price

1

Shift Plate

V72101DGF00H

Unavailable

2

Cotter Pin

V9420130032LL

$6.45

3

Pin

V50226MAF040

$8.45

4

BOLT - Call your local BRP dealership

V935000501501

Unavailable

5

Switch

V35152DGF060

$78.43

6

Hex. Flange Screw M6 X 16

207661644

$0.61

7

Support Shifter

V72315MAD030

Unavailable

8

Shifter

V72314DGF050LL

$23.05

9

Handle Plastic

V72201CEK030

Unavailable

10

Spring

V54294MAF030LL

$13.83

11

Hex. Flange Screw M6 X 20

207662044

$1.66

12

WASHER - Call your local BRP dealership

V941010817016

Unavailable

13

Lock Washer Helical M6

234161601

$0.92

14

Socket Head Screw

V9105005006

$3.98

15

Front Chain Guard

V50122DGF03HLL

$36.12

16

Chain Guard Bracket

V50124DGF00H

$4.06

17

Round Head Bolt M6 X 12, White

V9300006012BLL

$3.85

18

Rear Chain Guard

V50242DGF02H

$12.91

19

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74
