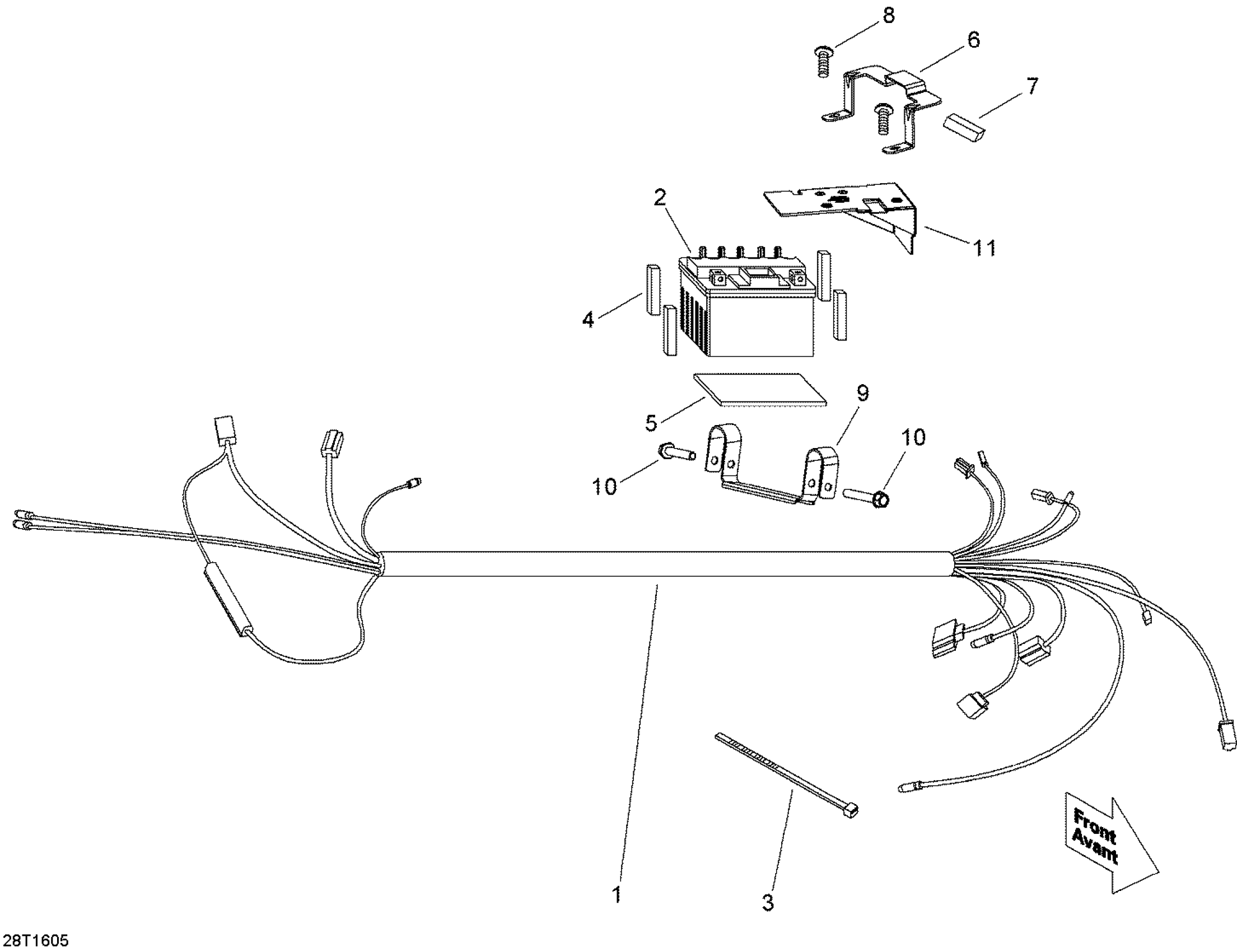

Can-Am DS 90, 2016 Main Harness Diagram

#

Description

Price

1

Main Harness

V32100DGF140

$156.89

2

Battery

V31500MAA020

Unavailable

3

Tie-Rap 180 mm

414115200

$0.09

4

Cushion Rubber

V81149MAA000

Unavailable

5

Foam

V81151DGF020

Unavailable

6

Battery Bracket

V50296DGF030

Unavailable

7

Cushion Rubber

V81152DGF010

Unavailable

8

Round Head Screw

V930000601201LL

Unavailable

9

BATTERY BRACKET - Call your local BRP dealership

V50229DGF01H

Unavailable

10

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

11

Battery Cover | USA Model

V80115DGF000

Unavailable
