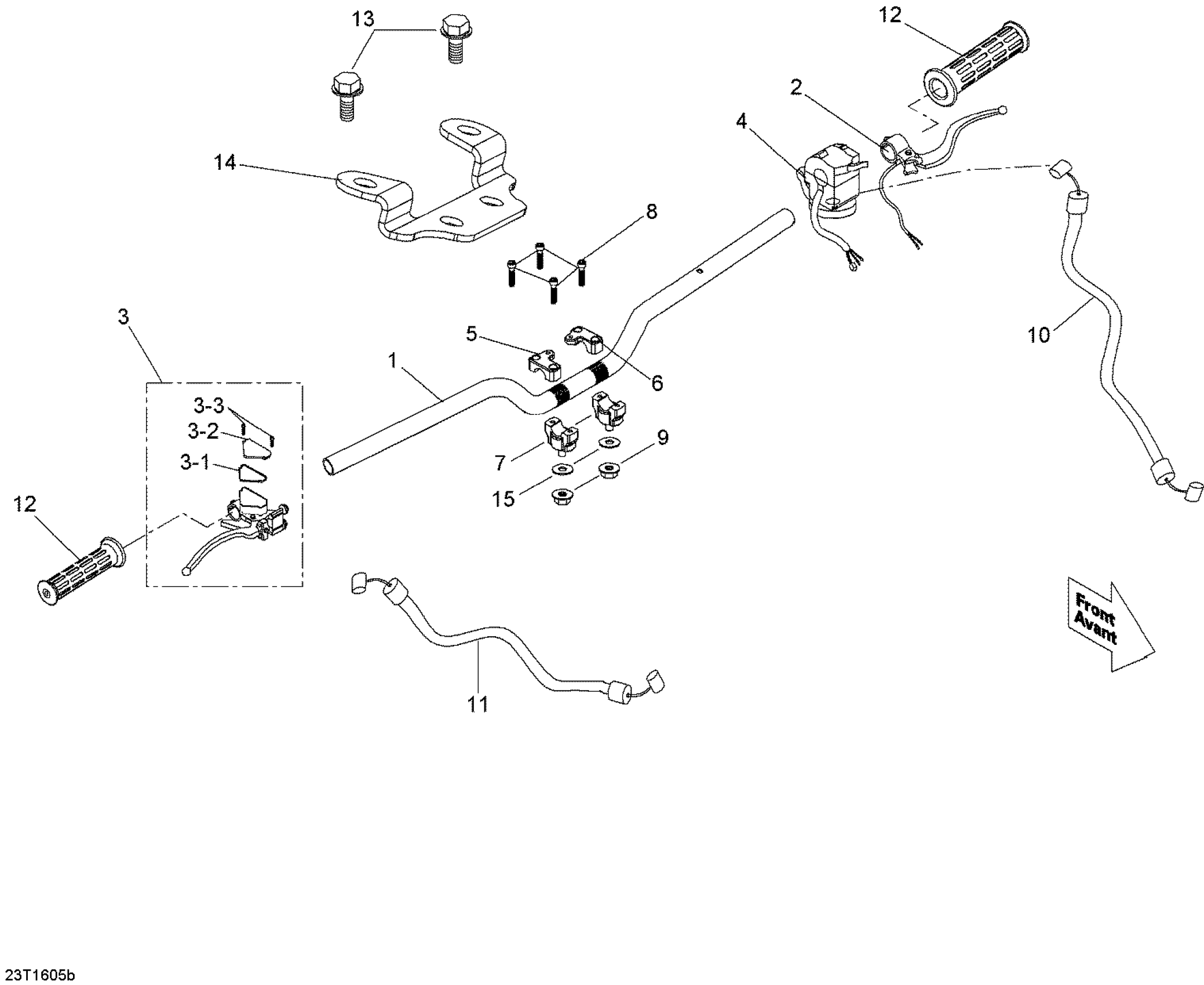

Can-Am DS 90, 2016 Handlebar Diagram
#
Description
Price
1
Handle Bar
V53100DGF060BKLL
Unavailable
2
LH Brake Lever
V53178MAA020BKLL
Unavailable
3-1
Not Available As Spare Parts
XXX
Unavailable
3-2
Not Available As Spare Parts
XXX
Unavailable
3-3
Not Available As Spare Parts
XXX
Unavailable
4
Multi-Fonction Switch
V35160DGF04HLL
Unavailable
5
LH Upper Handle Bar Clamp
V53170MAA020BKLL
Unavailable
6
RH Upper Handle Bar Clamp
V53175MAA020BKLL
Unavailable
7
Lower Handle Bar Clamp
V45517MAA040BK
Unavailable
8
Hexagonal Bolt M6 X 25
V9100006025LL
Unavailable
9
Nylon Nut M10
V9035010000010LL
Unavailable
12
Handle Grip
V53140DGF000BK
Unavailable
13
Round Head Screw
V930000601201LL
Unavailable
14
Support
V50223DGF030
Unavailable
15
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
