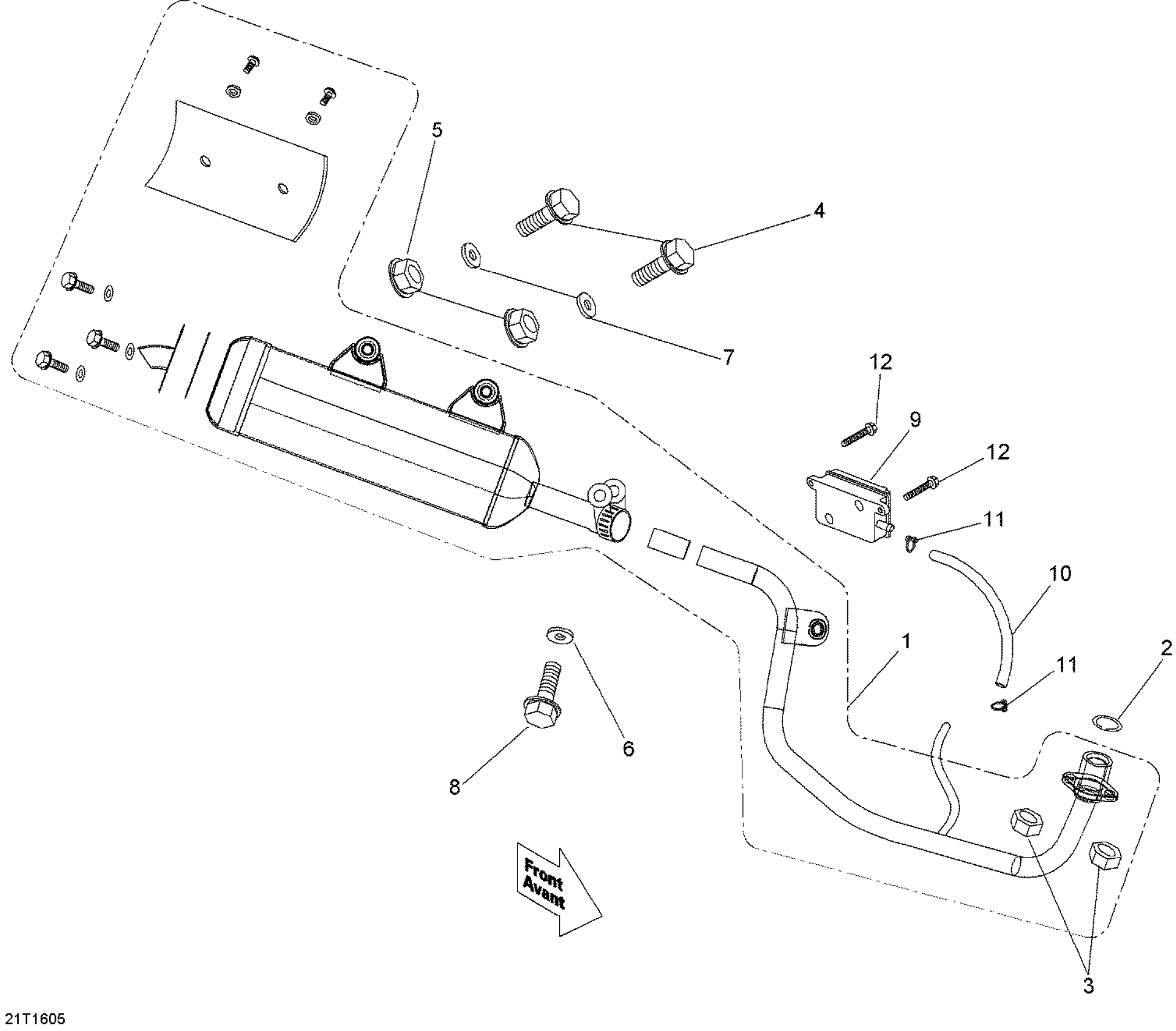

Can-Am DS 90, 2016 Exhaust System Diagram

#

Description

Price

1

Muffler

V18301DGF110LL

Unavailable

2

Exhaust Pipe Gasket

V18291MAD000

Unavailable

3

Nut M6

V9400106000LL

Unavailable

4

Hex. Flange Screw M8 X 35

207683544

$1.39

5

Hex. Elastic Stop Nut M8

232581414

Unavailable

6

Lock Washer 8 mm, Stainless

234181601

Unavailable

7

Washer

V941010816015LL

$4.98

8

Hex. Flange Screw M8 X 40

207684044

Unavailable

9

Air Cleaner Box

V18350DGF02HLL

Unavailable

10

Air Hose

V18401DGF02H

$17.66

11

Clip

V0940115101

Unavailable

12

Hex. Flange Screw M6 X 16

207661644

Unavailable
