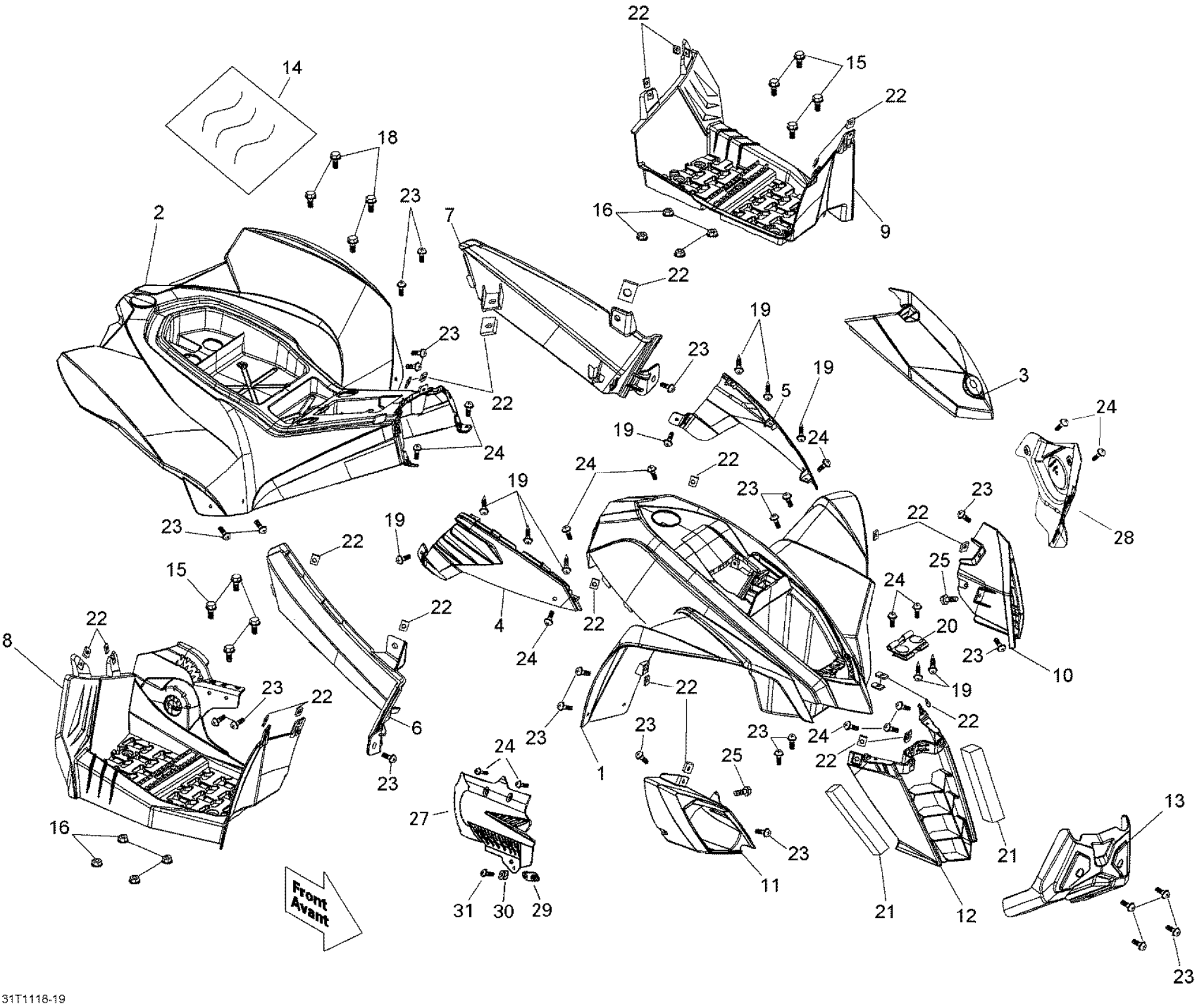

Can-Am DS 90, 2011 Body And Accessories Diagram

#

Description
Price

1

FRONT FENDER YELLOW (EN) - Call your local BRP dealership

V83001DGE000

Unavailable

2

Rear Fender, Yellow

V82013DGF000LL

$189.97

3

Black Cargo Cover

V83008DGF000

$46.12

4

RH Front Side Panel

V80104DGF010BKLL

$20.74

5

LH Front Side Panel

V80105DGF010BKLL

$20.74

6

RH Rear Side Panel

V80116DGF000BKLL

$16.89

7

LH Rear Side Panel

V80117DGF000BKLL

$16.89

8

RH Footrest

V80106DGF020BKLL

$78.43

9

LH Footrest

V80107DGF020BKLL

$78.43

10

RH Headlamp Housing

V80110DGF020BKLL

$39.20

11

LH Headlamp Housing

V80111DGF020BKLL

$39.20

12

Front Grille

V80114DGF000BK

$32.28

13

Skid Plate

V80113DGF010BKLL

$23.05

14

Heat Insulation Sheet

V18450DGF000LL

$10.14

15

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

16

Elastic Stop Nut M6

232561414

$1.55

18

Hex. Flange Screw M6 X 12

207661244

$1.70

19

Tapping Screw

V9309304012LL

$2.31

20

Cargo Cover Hinge

V50262DGF030LL

$17.66

21

Waterproof Strip

V81146DGF020

$4.98

22

Spring Nut

V9034506000KLL

$7.60

23

Round Head Screw

V930000601501LL

$2.31

24

Round Head Screw

V930000601201LL

$2.31

25

Round Head Screw

V9200006017

$3.98

27

RH Cover | Black Model

V80118DGF00BK

$46.12

28

Couvercle*Left Cover | Black Model

V80119DGF01BK

$56.89

29

Bracket | Black Model

V50302DGF000

$12.28

30

Cushion Rubber

V15235DGF030LL

$2.31

31

Round Head Bolt M6 X 20

V9300006020

$2.31
