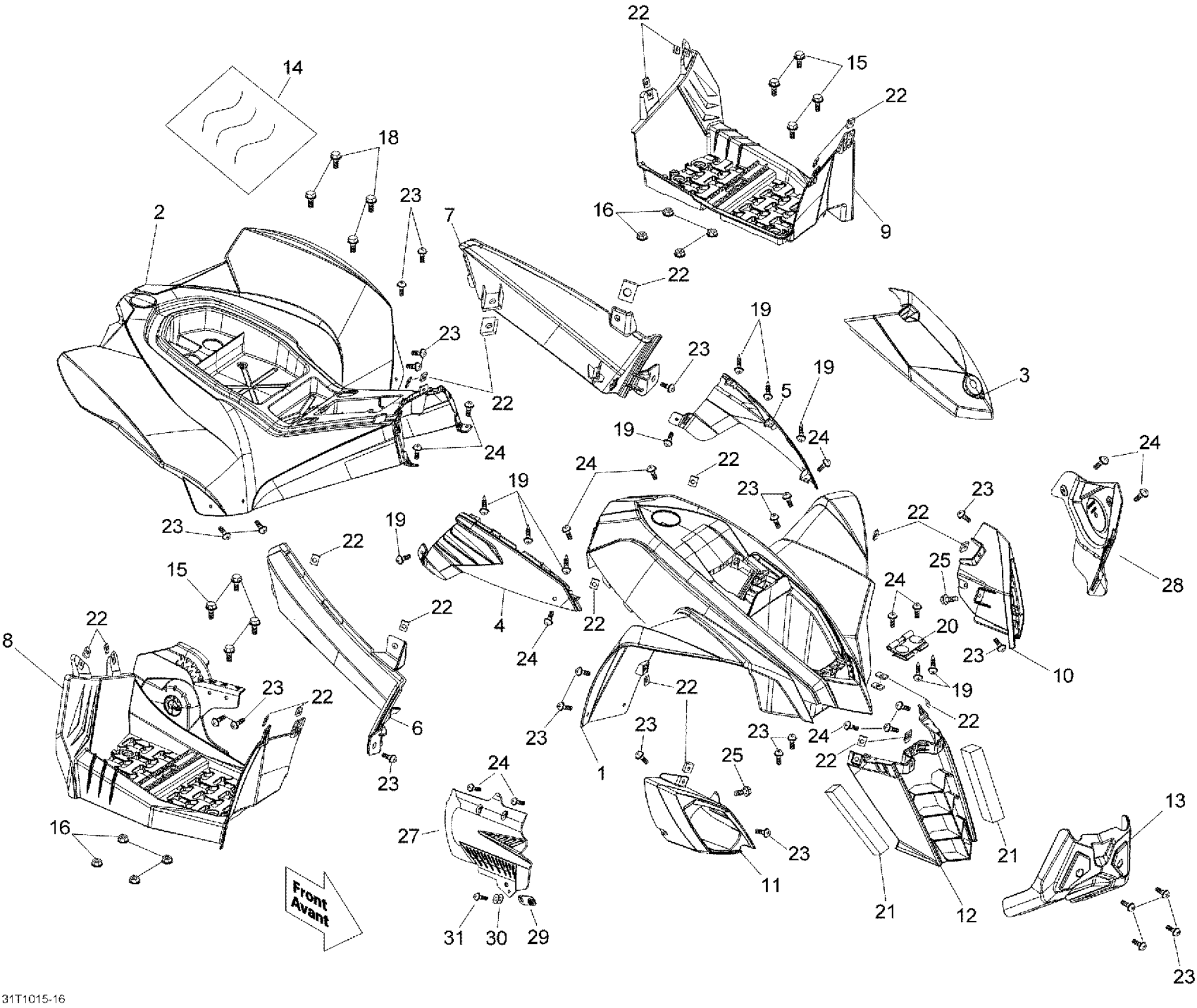

Can-Am DS 90, 2010 Body And Accessories Diagram

#

Description
Price

1

FRONT FENDER YELLOW (EN) - Call your local BRP dealership

V83001DGE000

$443.05

1

Front Fender, Black | Black Model

V84010DGF000

Unavailable

2

Rear Fender, Black | Black Model

V85010DGF000

Unavailable

2

Rear Fender, Yellow

V82013DGF000LL

$189.97

3

Black Cargo Cover

V83008DGF000

$46.12

4

RH Front Side Panel

V80104DGF000B

Unavailable

5

LH Front Side Panel

V80105DGF000B

Unavailable

6

RH Rear Side Panel

V80116DGF000BKLL

Unavailable

7

LH Rear Side Panel

V80117DGF000BKLL

Unavailable

8

RH Footrest

V80106DGF020BKLL

Unavailable

9

LH Footrest

V80107DGF020BKLL

Unavailable

10

LH Headlamp Housing

V80110DGF020BK

Unavailable

11

RH Headlamp Housing

V80111DGF020BK

Unavailable

12

Front Grille

V80114DGF000BK

Unavailable

13

Skid Plate

V80113DGF010BKLL

Unavailable

14

Heat Insulation Sheet

V18450DGF000LL

Unavailable

15

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

16

Elastic Stop Nut M6

232561414

Unavailable

18

Hex. Flange Screw M6 X 12

207661244

Unavailable

19

Tapping Screw

V9309304012LL

Unavailable

20

Cargo Cover Hinge

V50262DGF030LL

$17.66

21

Waterproof Strip

V81146DGF020

Unavailable

22

Spring Nut

V9034506000KLL

Unavailable

23

Round Head Screw

V930000601501LL

Unavailable

24

Round Head Screw

V930000601201LL

Unavailable

25

Round Head Screw

V9200006017

Unavailable

27

RH Cover | Black Model

V80118DGF00BK

Unavailable

28

Couvercle*Left Cover | Black Model

V80119DGF01BK

$56.89

29

Bracket | Black Model

V50302DGF000

Unavailable

30

Rubber Cushion | Black Model

V15235DGF030

$2.31

31

Round Head Bolt M6 X 20

V9300006020

Unavailable
