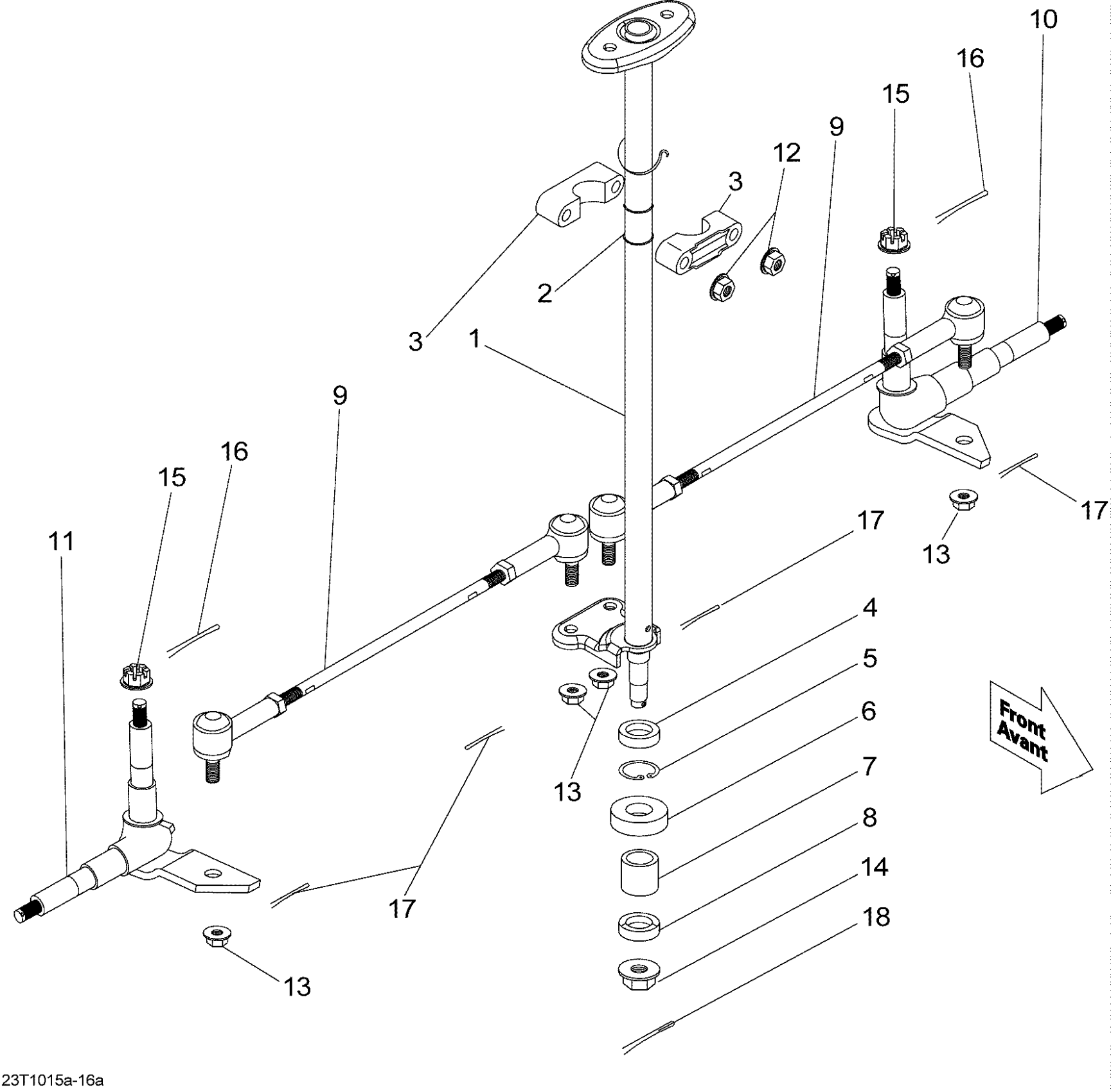

Can-Am DS 70, 2010 Steering Diagram

#

Description
Price

1

Steering Column

V53200DGF090

$76.84

2

Sleeve

V53217MAA020

$10.36

3

Steering Shaft Holder

V53434MAA020BK

$14.90

4

Oil Seal

V92101MAA000

$11.81

5

C-Circlip

V9452032000

$2.03

6

Radial Ball Bearing, 6002ZZ

A961006002ZZ

$21.61

7

Collar

V22112MAA010

$8.24

8

Oil Seal

V92102MAA000

$11.81

9

Tie Rod Ass'y

V53180MAA020LL

$88.03

10

LH Knuckle

V51215MAA000

$100.72

11

RH Knuckle

V51210MAA000

$96.99

12

Hex. Elastic Stop Nut M8

232581414

$0.54

13

Elastic Flange Nut M10

232501416

$1.43

14

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232571414

Unavailable

15

Lock Nut

V9035210000LL

$9.75

16

Cotter Pin

V9420117020LL

$6.16

17

Cotter Pin

V9420125030

$6.16

18

Cotter Pin

V9420130032LL

$6.16
