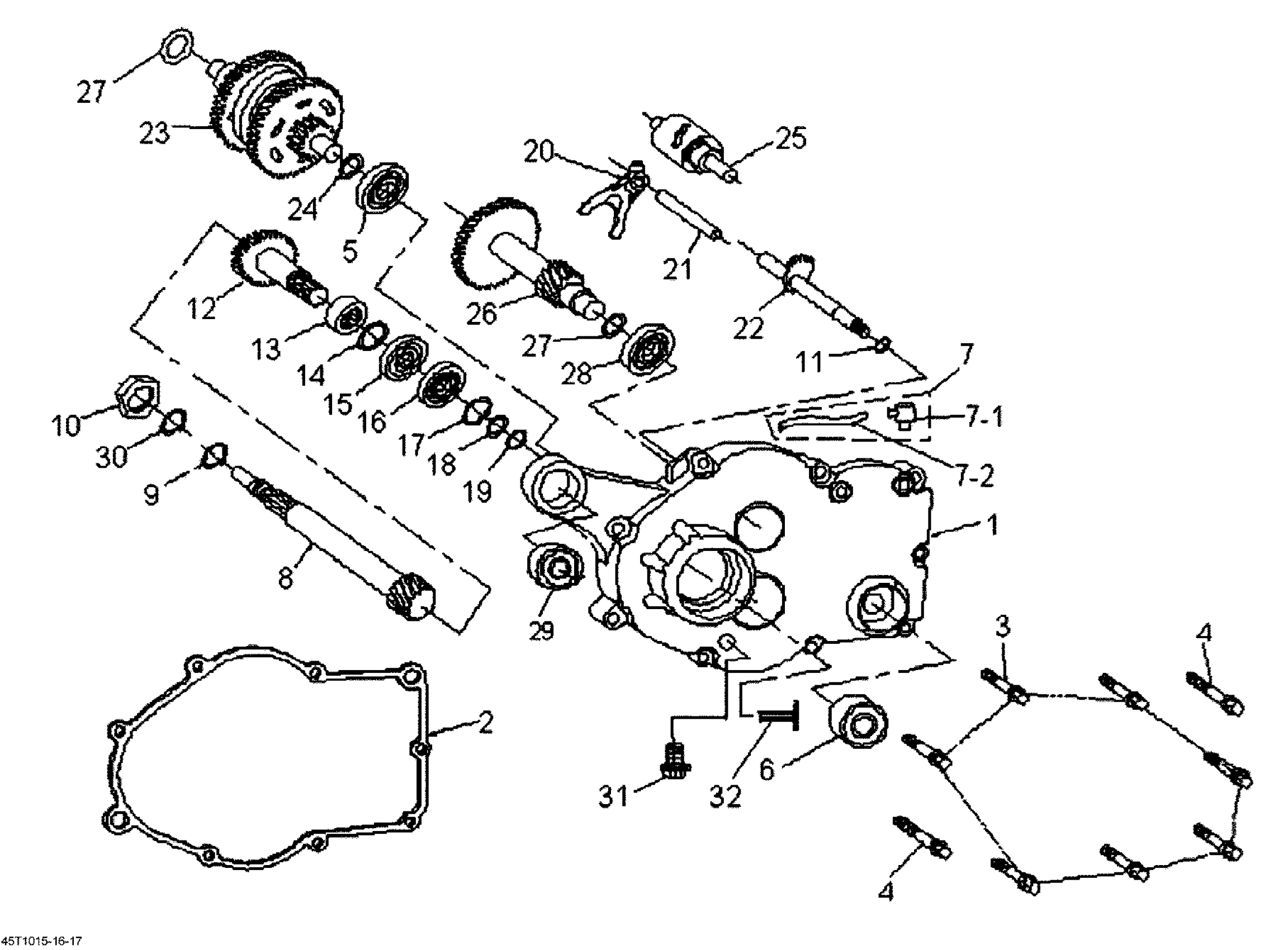

Can-Am DS 70, 2010 Gear Box Diagram

#

Description
Price

1

Cover

V21300CJE000

Unavailable

2

Transmission Cover Gasket

V213954DMR020

$14.33

3

Hex. Flange Screw M6 X 35

207663544

$0.85

4

Hex. Flange Screw M6 X 40

207664044

$2.12

5

Ball Bearing

V961006202310

$17.13

6

Oil Seal

V92104MAA000

$7.64

7

Breather

V11220CJF020

$19.37

7-1

Not Available As Spare Parts

NASP/NDPR

Unavailable

7-2

Not Available As Spare Parts

NASP/NDPR

Unavailable

8

Primary Drive Gear

V234114DMR00

$60.42

9

Circlip

V9451017000

$12.34

10

Nut

V9400310000

$3.50

11

Circlip

V9451013000

$11.33

12

Main Shaft

V234303XGR01

$120.12

13

Needle Bearing

V91130253315

$34.30

14

Circlip

V9453032000

$12.34

15

Oil Seal

V912044DM000

$7.64

16

Bearing

V961506004010

$35.79

17

Circlip

V9453042000

$12.34

18

Flat Washer

V941012028010

$7.21

19

Circlip

V9451019000

$12.34

20

Shifting Fork

V242114DMR000

$46.99

21

Pin

V242414DMR01

$34.30

22

Shift Shaft

V246104DMR000

$44.75

23

Reverse Axle

V234504DMR00

$115.64

24

Flat Washer

V941011522010

$8.24

25

Shift Drum

V243014DMR000

$152.96

26

Reverse Axle

V234204DMR00

$110.42

27

Flat Washer

V941011218010

$8.24

28

Ball Bearing

V961006201310

$17.13

29

Rubber Bushing

V112034DM000

$8.24

30

O-Ring

V91304DGF000

$2.84

31

Hex. Flange Screw

207681244

$0.79

32

Main Shaft

V234303XGR01

$120.12
