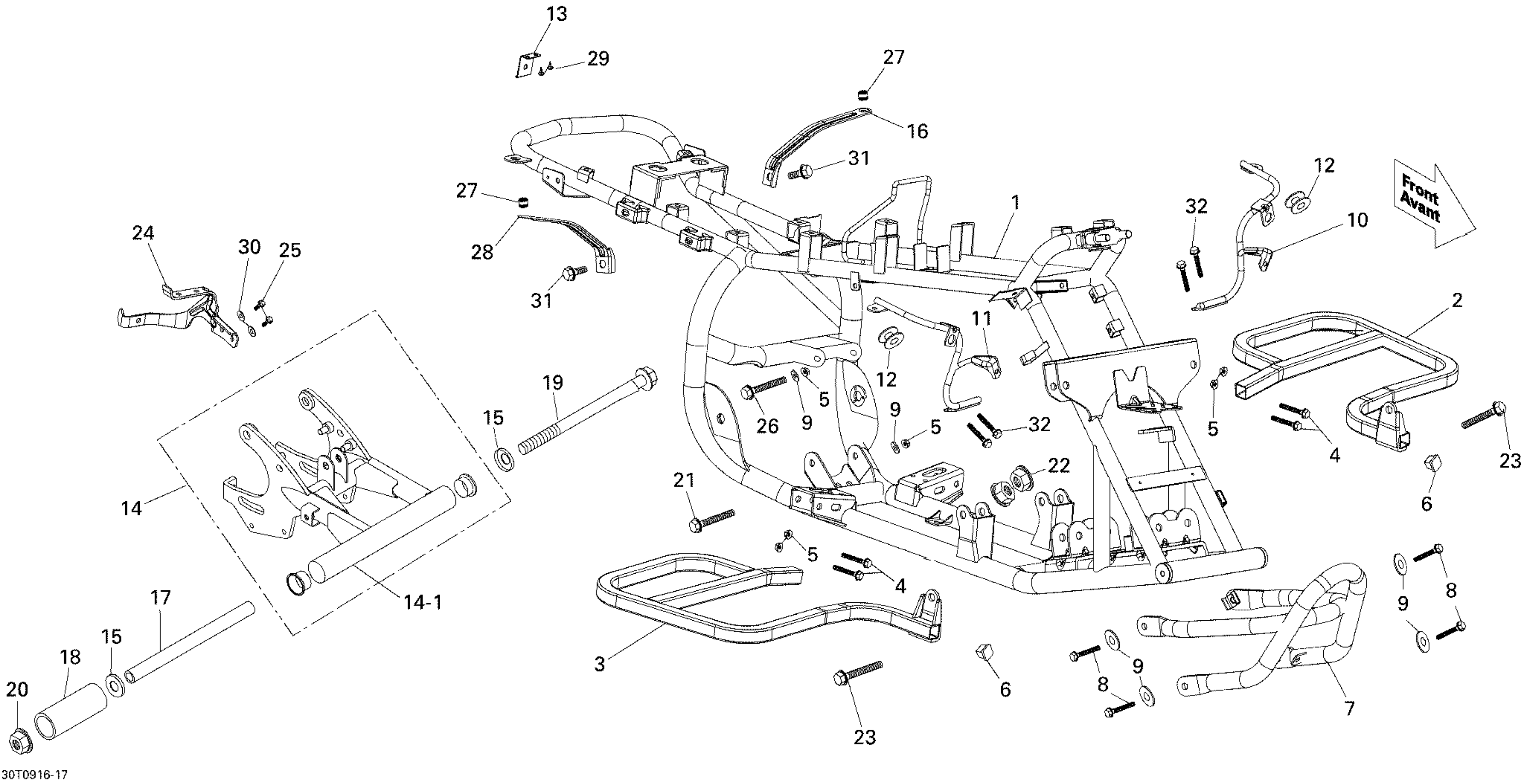

Can-Am DS 70, 2009 Frame Diagram
#
Description
Price
2
LH Footrest Support
V50099DGF060BK
Unavailable
3
RH Footrest Support
V50107DGF050BK
Unavailable
5
Hex. Elastic Stop Nut M8
232581414
Unavailable
6
Plug
V64312DGF020LL
Unavailable
7
Front Bumper
V50270DGF040BK
Unavailable
8
Hex. Flange Screw
V9600008014
Unavailable
9
Lock Washer 8 mm, Stainless
234181601
Unavailable
12
Cushion Rubber
V15235DGF030LL
Unavailable
14
Swing Arm
V52370DGF110
Unavailable
14-1
Bushing
V22135MAA000
Unavailable
15
Swing Arm Seal Cover
V11400MAA000
Unavailable
16
LH Upper Fixed Plate
V50260DGF050BK
Unavailable
17
Swing Arm Spacer
V44170MAA000
Unavailable
18
Rubber Sleeve
V53436MAA020LL
Unavailable
19
Hex. Flange Bolt
V9600014290010LL
Unavailable
20
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232571414
Unavailable
21
Hex. Flange Screw
V9600008100
Unavailable
22
Elastic Flange Nut M10
232501416
Unavailable
25
Hex. Flange Screw M6 X 12
207661244
Unavailable
26
Hex. Flange Screw
V9600108125
Unavailable
27
Rubber Cushion
V85278DGF020LL
Unavailable
28
RH Upper Fixed Plate
V50261DGF050BK
Unavailable
29
Tapping Screw
V9309304012LL
Unavailable
30
Lock Washer Helical M6
234161601
Unavailable
31
Hex. Flange Screw
207681244
Unavailable
32
Hex. Flange Screw M6 X 16
207661644
Unavailable
