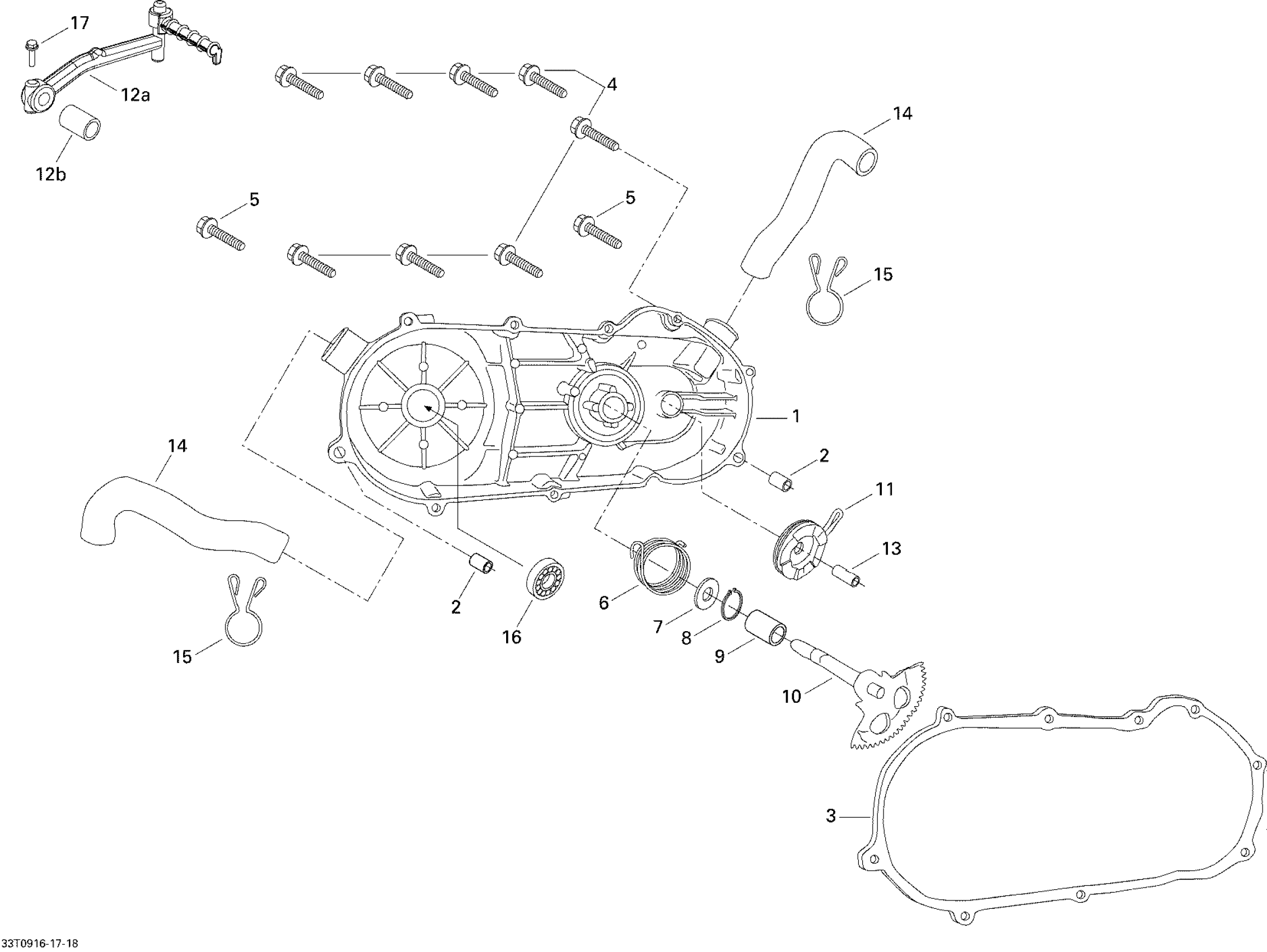

Can-Am DS 70, 2009 CVT Cover And Kick Stater Diagram
#
Description
Price
1
CVT Cover
V13341CJF020LL
Unavailable
2
Dowel Pin
A9430110140
Unavailable
3
Cvt Cover Gasket
V11359CJF010
Unavailable
4
Hex. Flange Screw M6 X 20
207662044
Unavailable
5
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
6
Spring Torsion
V282814DM00
Unavailable
7
Washer
V9410415010LL
Unavailable
8
Circlip
V9451015000
Unavailable
9
Rubber Bushing
V282544DM00
Unavailable
10
Kick Shaft
V282504DM02LL
Unavailable
11
Pinion Ass'y, Kick
V2823A4DM02
Unavailable
12a
Kick Starter
V28301DGF020LL
Unavailable
12b
Kick Starter Spinder Cap
V52255MAA000
Unavailable
13
Shaft Idle Gear
V281024DM02
Unavailable
14
CVT Duct
V11345DGF030LL
Unavailable
15
Clip
V95002025030010LL
Unavailable
16
Bearing
V96100638ZZ
Unavailable
17
Hex. Flange Screw M6 X 25
207662544
Unavailable
