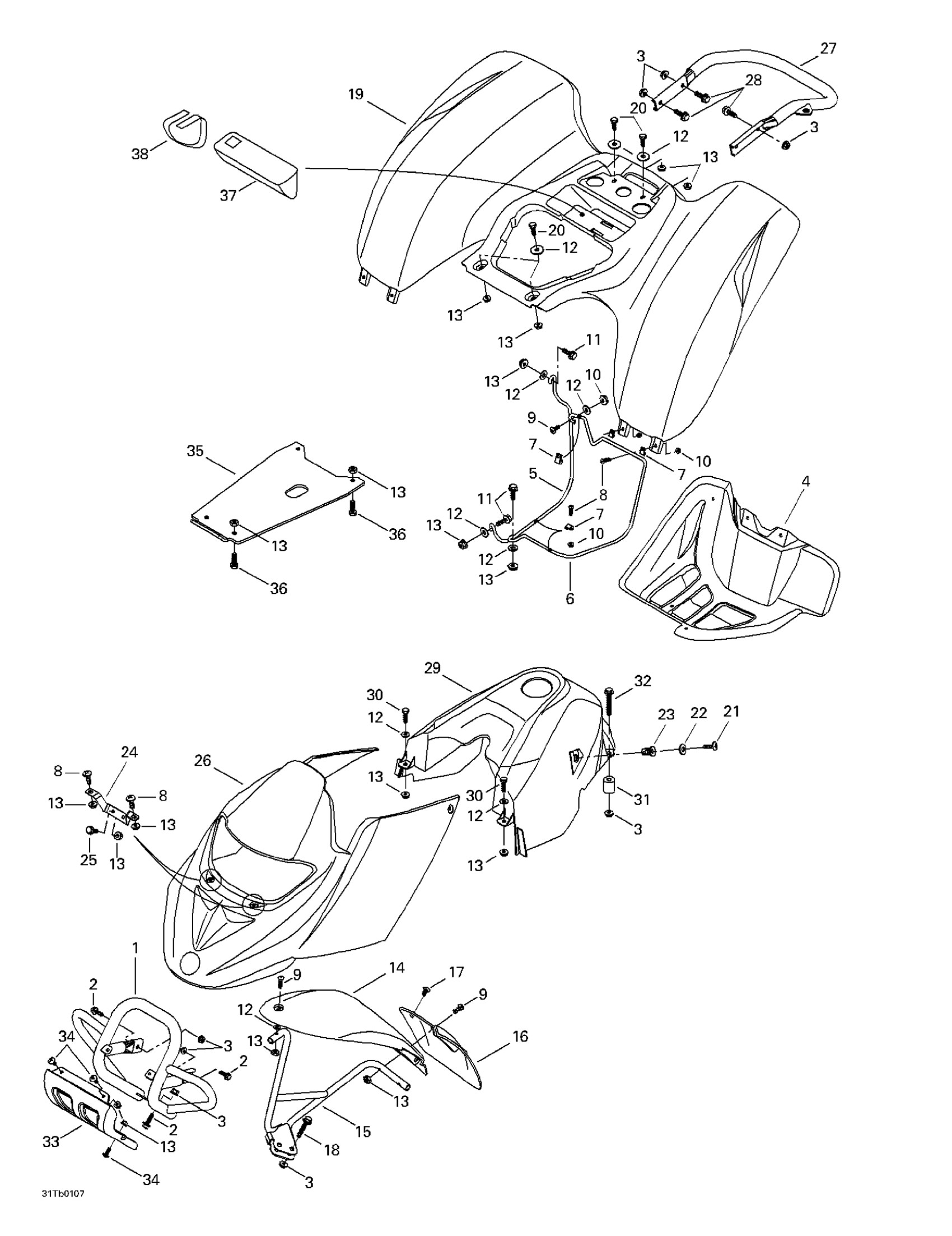

Can-Am DS 650 (supplement), 7482, 2001 Body Diagram

#

Description
Price

1

BUMPER DS - Call your local BRP dealership | DS 650

715000172

Unavailable

2

Hex. Flange Screw M8 X 25

207682544

$0.90

3

Hex. Flange Elastic Nut M8

233281414

$1.14

4

RH FOOT PROTECTOR - Call your local BRP dealership

705000301

$27.66

LH FOOT PROTECTOR - Call your local BRP dealership

705000302

Unavailable

5

RH Support

705000116

$29.97

LH Support

705000119

Unavailable

6

RH FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership

705000117

$45.35

LH FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership

705000120

$39.97

7

Gear Clamp

293650111

Unavailable

8

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

9

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

250000032

Unavailable

10

Elastic Stop Nut M6

232561414

$1.55

11

Hex. Flange Screw M6 X 25

207662544

$0.53

12

Flat Washer

224061201

$1.11

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

14

RH FRONT FENDER, BLACK - Call your local BRP dealership | DS 650 X

705000360

Unavailable

LH Front Fender Kit

705000361

Unavailable

15

RH Fender Support

705000150

Unavailable

LH Fender Support

705000151

Unavailable

16

RH FRONT MUDGUARD - Call your local BRP dealership

705000095

Unavailable

LH FRONT MUDGUARD - Call your local BRP dealership

705000096

$20.74

17

Dart

414939500

$0.86

18

Hex. Flange Screw M8 X 35

207683544

$1.39

19

Rear Fender (Black)

705000362

Unavailable

20

Hex. Screw M6 X 18

207161844

$0.62

21

Phillips Screw M6 X 20, Scotch Grip

250000043

Unavailable

22

BUSHING - Call your local BRP dealership

506117300

Unavailable

23

JACK NUT M6 - Call your local BRP dealership

732610057

$4.32

24

FASCIA BRACKET, BLACK - Call your local BRP dealership

705000146

$36.89

25

Hex. Flange Screw M6 X 16

207661644

$0.61

26

Front Fascia

705000363

Unavailable

27

Rear Bumper

705000143

Unavailable

28

Hex. Flange Screw M8 X 20

207682044

$0.92

29

Tank Cover Kit

705000276

Unavailable

30

Hex. Screw M6 X 30

207063044

$0.98

31

SPACER - Call your local BRP dealership

705000114

Unavailable

32

Hex. Flange Screw M8 x 60

207686044

$2.56

33

Protective Plate

705000303

Unavailable

34

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

35

Skid Plate | DS 650

705000304

Unavailable

36

Hex. Flange Screw M6 X 20

207662044

$1.66

37

Tool Kit

295000178

Unavailable

38

STRAP - Call your local BRP dealership

708200008

$8.68
