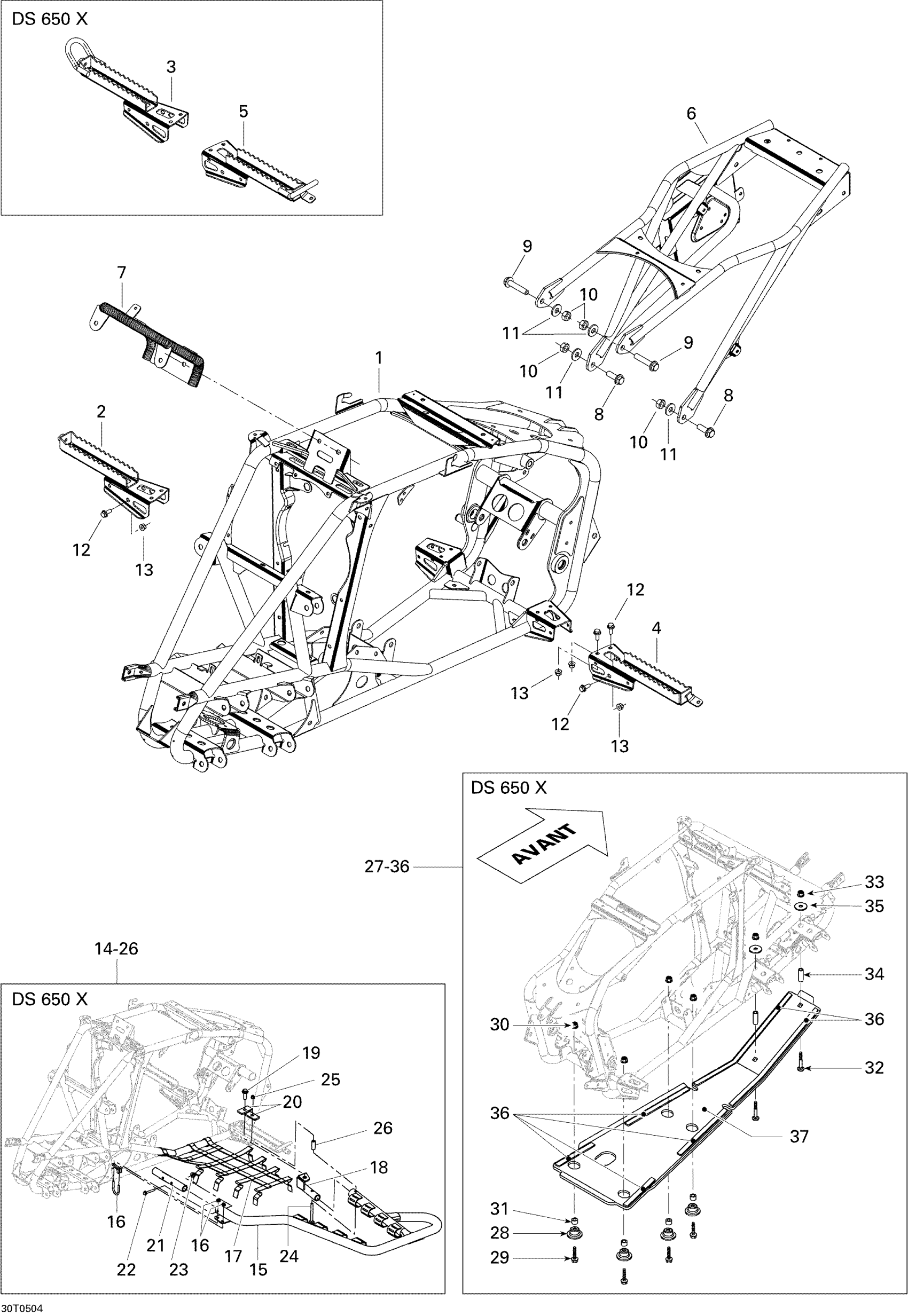

Can-Am DS 650/DS 650 X, 2005 Frame Diagram

#

Description
Price

1

FRAME - Call your local BRP dealership

705200922

$1,739.99

2

RH Footrest, Black | DS650

705200684

Unavailable

3

RH FOOTREST, BLACK - Call your local BRP dealership | DS650 X

705200688

$60.74

4

LH Footrest, Black | DS650

705200691

Unavailable

5

LH FOOTREST, BLACK - Call your local BRP dealership | DS650 X

705200695

$58.43

6

Frame Extension

705200716

Unavailable

7

Box Support

705200717

Unavailable

8

HEX. FLANGED SCREW M10 X 25, SCOTCH GRIP - Call your local BRP dealership

207502587

$5.62

9

HEX. FLANGED SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership

207505087

$5.29

10

Hex. Nut M10

232001487

Unavailable

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Hex. Flange Screw M6 X 16

207661644

$0.61

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

14

Nerf Bar Kit | Includes 14 to 26

705001165

Unavailable

15

LH Nerf Bar

705001135

Unavailable

15

RH NERF BAR - Call your local BRP dealership

705001134

$344.58

16

U-bolt Ass'y

705001136

Unavailable

17

RH NET - Call your local BRP dealership

705001137

Unavailable

17

LH NET - Call your local BRP dealership

705001138

Unavailable

18

RH Support

705001139

Unavailable

18

LH SUPPORT - Call your local BRP dealership

705001140

$56.89

19

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

20

PLATE - Call your local BRP dealership

705001141

$29.97

21

SUPPORT - Call your local BRP dealership

705001142

$53.05

22

Hex. Flange Screw M6 X 45

207664544

$1.07

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

24

M8 X 80 CARRIAGE BOLT - Call your local BRP dealership

207788044

$2.89

25

Hex. Flange Elastic Nut M8

233281414

$1.14

26

BUSHING - Call your local BRP dealership

503189064

$11.28

27

Protector Kit | Includes 27 to 36

705001166

Unavailable

28

CUP - Call your local BRP dealership

705200533

$5.35

29

Hex. Flange Screw M6 X 25

207662544

$0.53

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

31

Bushing

293900028

$12.91

32

Carriage Bolt M8 X 60

207786044

$10.54

33

Hex. Flange Elastic Nut M8

233281414

$1.14

34

Bushing

293900051

Unavailable

35

Flat Washer

224081301

$0.86

36

Neoprene Seal (1PAC=3M)

219704364

$22.72

37

Motor Skid

705001133

Unavailable
