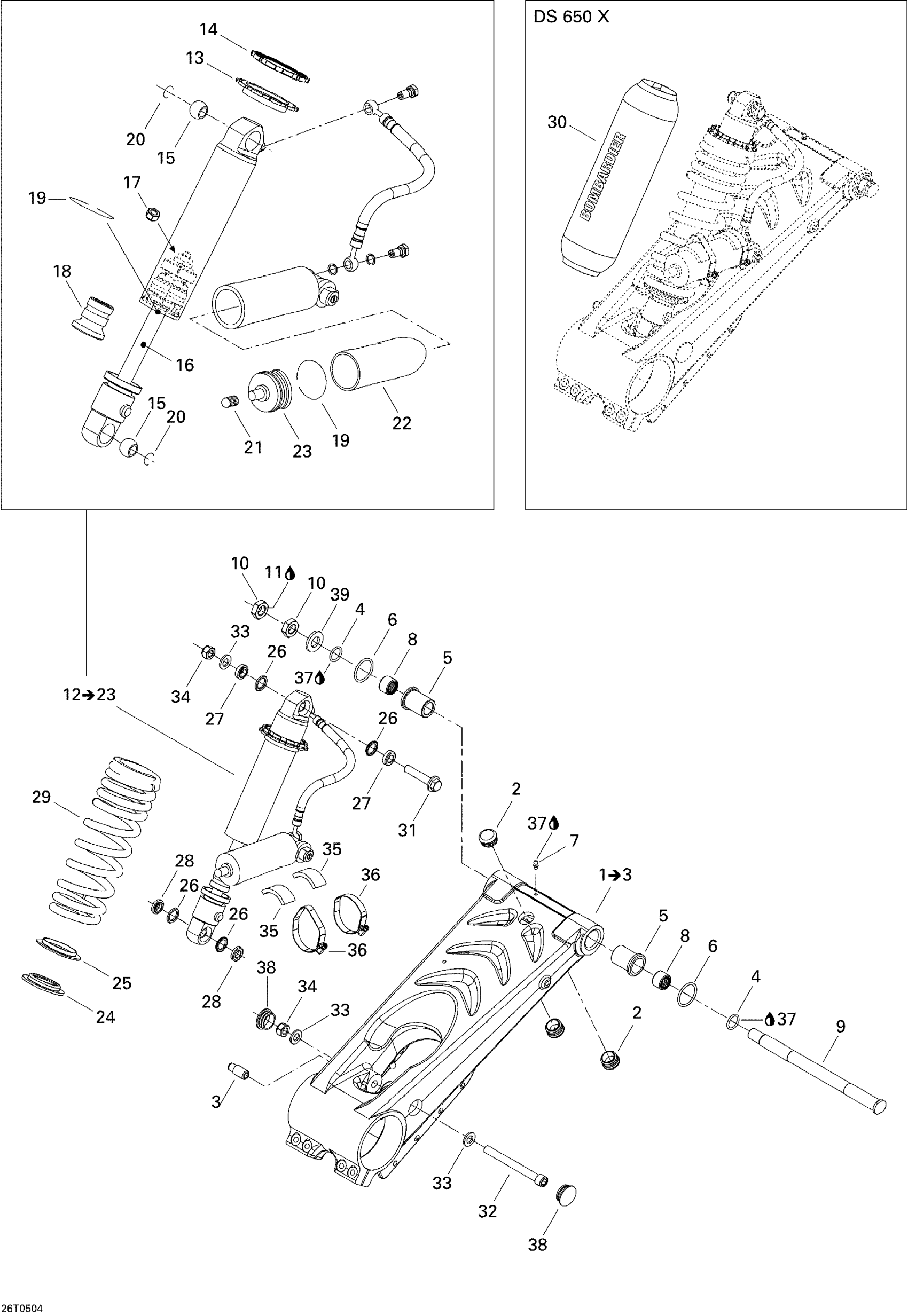

Can-Am DS 650/DS 650 X, 2005 Rear Suspension Diagram

#

Description
Price

1

SWING ARM ASS'Y - Call your local BRP dealership | Includes 1 to 3

706000252

$286.89

2

PLUG 1-1/8 - Call your local BRP dealership

706200309

$10.74

3

GUIDE SUPPORT - Call your local BRP dealership

706000253

$29.97

4

O-RING - Call your local BRP dealership

293300074

$5.35

5

Cushion

706000284

Unavailable

6

O-Ring

293300068

$5.29

7

Grease Fitting

408200700

$2.80

8

NEEDLE BEARING - Call your local BRP dealership

293350050

Unavailable

9

PIVOT AXLE - Call your local BRP dealership

706000286

$102.28

10

HEX. JAM NUT M18 - Call your local BRP dealership

232180411

$4.00

11

Loctite 243, 10 ml

293800060

$20.77

12

Rear Shock Ass'y | Includes 12 to 23

706000231

Unavailable

13

SHOCK SPRING STOPPER - Call your local BRP dealership

706000062

$12.28

14

STOPPER RING - Call your local BRP dealership

706000082

$30.74

15

Ball Joint

706000105

Unavailable

16

Piston Rod

706000230

Unavailable

17

U-NUT - Call your local BRP dealership

706000188

$13.05

18

BUMPER PAD - Call your local BRP dealership

706000189

$16.89

19

CIRCLIP 46 MM - Call your local BRP dealership

706000190

$5.35

20

CIRCLIP 25.3 MM - Call your local BRP dealership

706000191

$5.35

21

Valve Cap

706000192

Unavailable

22

Reservoir

706000193

Unavailable

23

Guide

706000194

Unavailable

24

SPRING STOPPER - Call your local BRP dealership

706000061

$15.35

25

SPRING GUIDE - Call your local BRP dealership

706000060

$9.97

26

SEAL - Call your local BRP dealership

293250111

$4.58

27

CUSHION - Call your local BRP dealership

706000103

$5.35

28

INFERIOR CUSHION - Call your local BRP dealership

706000247

$7.66

29

Red Spring | DS 650

706000255

Unavailable

29

Spring, Red | DS 650 X

706000292

Unavailable

30

PROTECTOR - Call your local BRP dealership | DS 650 X

706000166

Unavailable

31

SHOCK SCREW - Call your local BRP dealership

250000095

$10.74

32

SOCKET HEAD SCREW M12 X 120 - Call your local BRP dealership

231022087

$9.20

33

Flat Washer 12 mm

234021410

$0.68

34

Elastic Stop Nut M12

232521416

$1.40

35

PROTECTOR - Call your local BRP dealership

293830083

$6.49

36

Norma Gear Clamp

293650118

$9.74

37

Synthetic Grease, 400 G

293550010

Unavailable

38

Plug 1-1/4"

706200308

$6.92

39

WASHER - Call your local BRP dealership

250200019

$2.02
