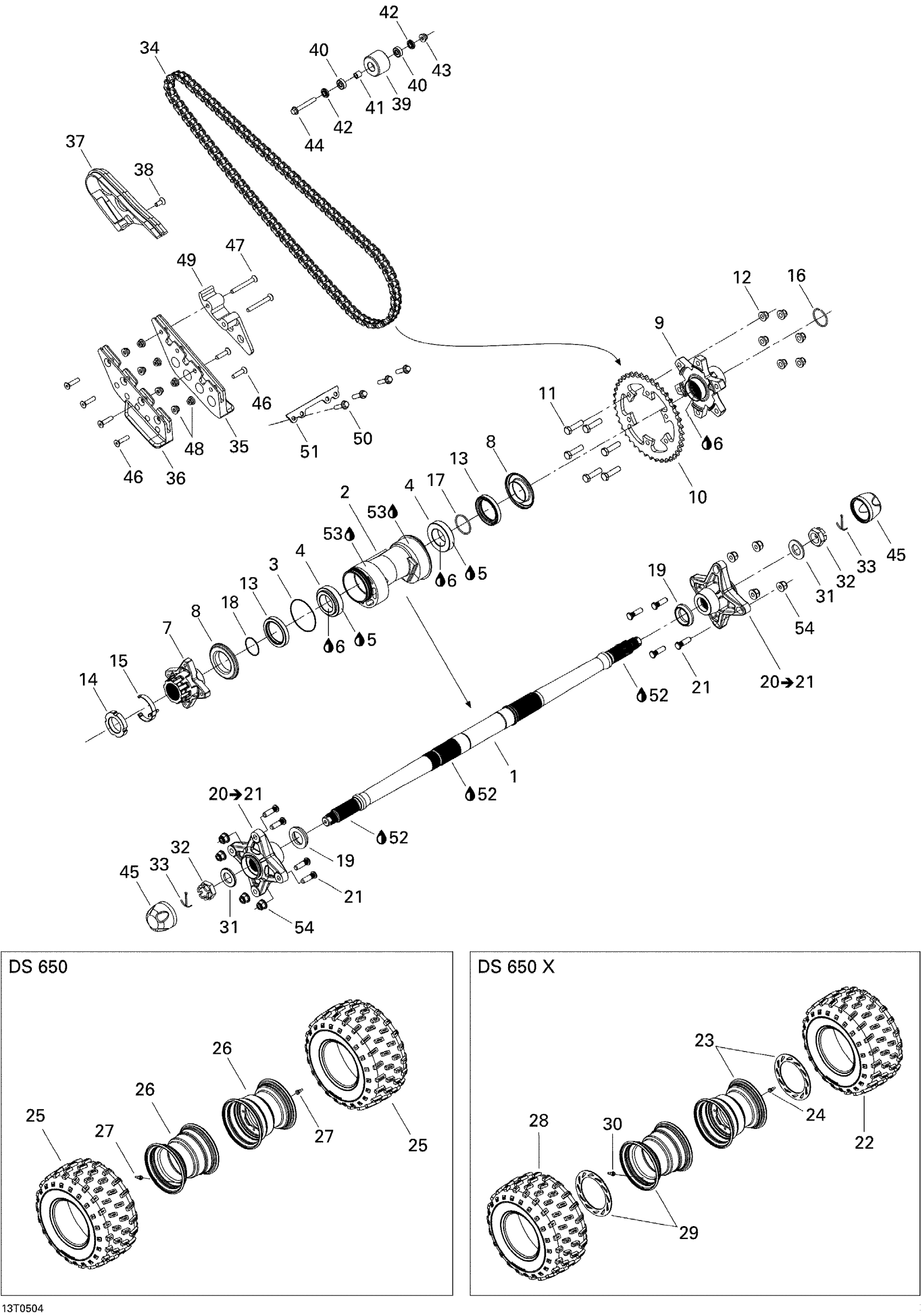

Can-Am DS 650/DS 650 X, 2005 Drive System, Rear Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

705500387

$437.66

2

CHAIN TIGHTENER - Call your local BRP dealership

705500388

Unavailable

3

O-RING - Call your local BRP dealership

293300085

$6.12

4

Cone Bearing

293350043

$32.28

5

Loctite 609, 10 ml

413703100

$24.58

6

Synthetic Grease, 400 G

293550010

Unavailable

7

BRAKE HUB - Call your local BRP dealership

705500406

$85.35

8

WEAR RING - Call your local BRP dealership

705500408

Unavailable

9

Wheel Hub

705500344

Unavailable

10

Sprocket, 40 Teeth

705500390

Unavailable

11

HEX. SCREW M10 X 40 - Call your local BRP dealership

207004046

$1.92

12

Hex. Flange Elastic Nut M10

233201436

$1.74

13

Joint Etanche *Oil Seal

293250222

$18.43

14

Slotted Round Nuts M38

250100037

Unavailable

15

Tab Lock

250100038

Unavailable

16

RING RETAINER - Call your local BRP dealership

705500108

$5.52

17

O-RING - Call your local BRP dealership

293300099

$4.86

18

O-Ring

293300100

$5.52

19

RING SUPPORT - Call your local BRP dealership

705500067

Unavailable

20

REAR HUB ASS'Y - Call your local BRP dealership | Includes 20 to 21

705500452

Unavailable

21

Wheel Stud

250000138

Unavailable

22

Rear Tire | DS 650 X

705500331

Unavailable

23

RH REAR RIM - Call your local BRP dealership | DS 650 X

705500332

Unavailable

24

Rim Valve With Cap

705400193

$6.69

25

Rear Tire | DS 650 X

705500331

Unavailable

26

Rear Rims | DS 650

705500321

Unavailable

27

Rim Valve With Cap

705400193

$6.69

28

Rear Tire | DS 650 X

705500331

Unavailable

29

LH Rear Rim | DS 650 X

705500336

Unavailable

30

Rim Valve With Cap

705400193

$6.69

31

HARDENED WASHER - Call your local BRP dealership

250200004

$5.45

32

HEX. CASTELLATED NUT M24 - Call your local BRP dealership

250100006

$9.40

33

Cotter Pin

371003400

$0.69

34

CHAIN - Call your local BRP dealership

705500672

$230.74

35

PROTECTOR - Call your local BRP dealership

705500414

$39.20

36

PROTECTOR - Call your local BRP dealership

705500415

$39.97

37

Shoe Slider

705500442

Unavailable

38

Socket Head Screw M8 X 20, Scotch Grip

205882044

Unavailable

39

CHAIN ROLLER - Call your local BRP dealership

705500368

Unavailable

40

BALL BEARING - Call your local BRP dealership

293350039

$12.28

41

Spacer

705500397

Unavailable

42

SPACER - Call your local BRP dealership

705500398

$6.89

43

Hex. Flange Elastic Nut M8

233281414

$1.14

44

Hex. Flange Screw M8 x 60

207686044

$2.56

45

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

46

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205383544

$1.20

47

SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership

205387044

$3.75

48

Hex. Flange Elastic Nut M8

233281414

$1.14

49

PROTECTOR - Call your local BRP dealership

705500116

$16.12

50

Hex. Flange Screw M8 X 35

207683544

$1.39

51

SEAL - Call your local BRP dealership

705500443

$5.35

52

Graisse *Grease

293550062

$15.35

53

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

54

Flange Nut M10

732610084

$5.49
