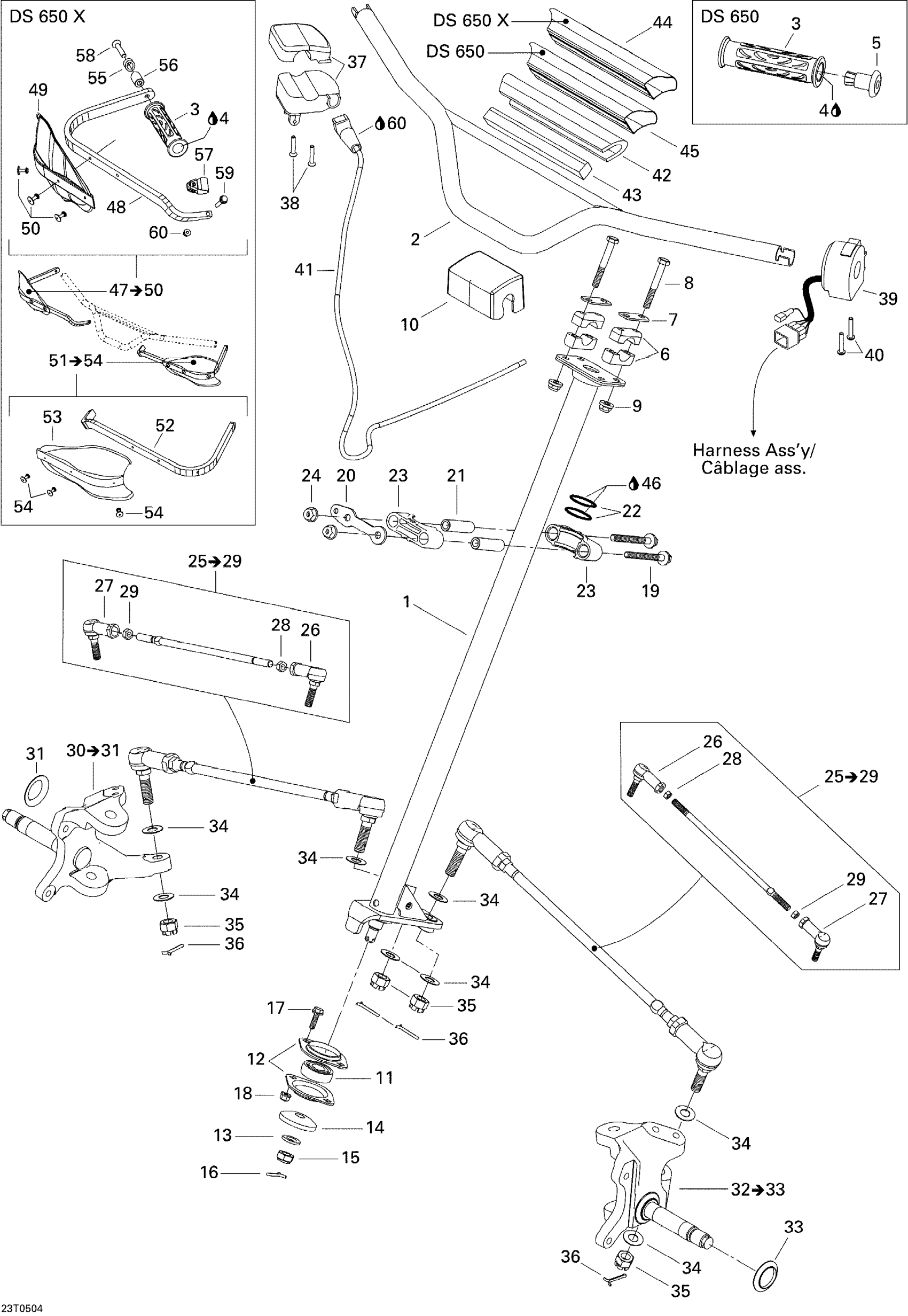

Can-Am DS 650/DS 650 X, 2005 Steering System Diagram

#

Description
Price

1

MAIN TUBE - Call your local BRP dealership

709400222

$184.58

2

Handle Bar, Black

709400218

Unavailable

3

Handle Grip

709400493

$14.75

4

Loctite 406, 7 Oz

293800100

$36.99

5

END-PIECE - Call your local BRP dealership | DS 650

709400189

Unavailable

6

Steering Support

709400919

$20.74

7

Stiffner

709400509

$4.43

8

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

$1.80

9

Hex. Flange Elastic Nut M8

233281414

$1.14

10

COVER - Call your local BRP dealership

705000371

$7.66

11

Ball Bearing

709400439

$18.43

12

FLANGE, BEARING - Call your local BRP dealership

709400152

$8.83

13

Flat Washer 12 mm

234021410

$0.68

14

WASHER - Call your local BRP dealership

250200017

Unavailable

15

HEX. CASTELLATED NUT M12 - Call your local BRP dealership

232220413

$2.14

16

Cotter Pin

211400017

$0.25

17

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

19

Hex. Flange Screw M8 X 75

207687544

$7.23

20

STOPPER PLATE - Call your local BRP dealership

709400053

$10.57

21

BUSHING - Call your local BRP dealership

709400072

Unavailable

22

O-Ring

293300068

$5.29

23

Half Bushing

709400471

$13.63

24

Hex. Flange Elastic Nut M8

233281414

$1.14

25

ROD-TIE ASS'Y - Call your local BRP dealership

709400489

Unavailable

26

RH Ball Joint

709402302

$35.35

27

LH Ball Joint

709402303

$35.35

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

RH Knuckle

709400208

Unavailable

31

WEAR RING - Call your local BRP dealership

705400056

$13.82

32

LH Knuckle

709400210

Unavailable

33

WEAR RING - Call your local BRP dealership

705400056

$13.82

34

Hardened Washer

706200281

$2.34

35

Nut M12

250100099

$1.64

36

Cotter Pin

211400013

$0.32

37

THROTTLE HANDLE - Call your local BRP dealership

709400016

$55.35

38

SCREW M5 X 30 - Call your local BRP dealership

205353060

Unavailable

39

MULTI FUNCTION SWITCH - Call your local BRP dealership

710000072

Unavailable

40

SCREW M5 X 30 - Call your local BRP dealership

205453046

Unavailable

41

THROTTLE CABLE - Call your local BRP dealership

709400048

Unavailable

42

Steering Cover Foam

709400087

Unavailable

43

FOAM INSERT - Call your local BRP dealership

709400094

$5.35

44

Steering Cover | DS 650 X

709400243

Unavailable

45

Steering Cover | DS 650

709400298

Unavailable

46

Synthetic Grease, 400 G

293550010

Unavailable

47

RH PROTECTOR ASSY - Call your local BRP dealership | DS 650 X

709400177

$57.66

48

RH HANDLE PROTECTOR - Call your local BRP dealership | DS 650 X

709400159

$36.89

49

Protector Plate | DS 650 X

705000461

Unavailable

50

Pop Rivet 3/16"

293150103

$0.54

51

LH Protector Ass’y | DS 650 X

709400179

Unavailable

52

LH Handle Protector | DS 650 X

709400160

Unavailable

53

Protector Plate | DS 650 X

705000461

Unavailable

54

Pop Rivet 3/16"

293150103

$0.54

55

Small Bracket | DS 650 X

709400161

$20.74

56

Large Bracket | DS 650 X

709400162

$16.89

57

HANDLE BRACKET - Call your local BRP dealership | DS 650 X

709400174

$7.66

58

Socket Head Screw M8 X 40 | DS 650 X

205384044

Unavailable

59

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

60

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

61

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable
