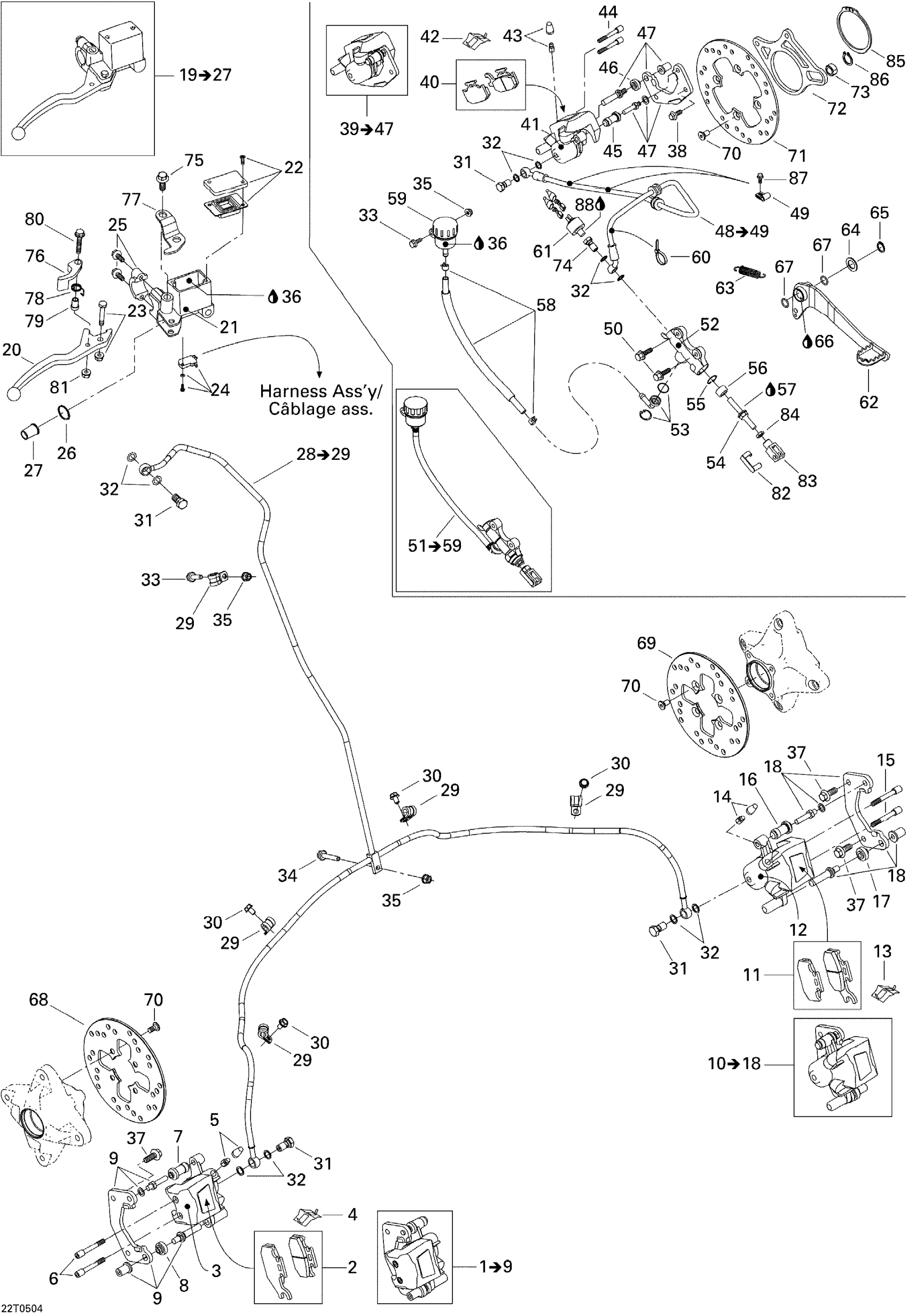

Can-Am DS 650/DS 650 X, 2005 Hydraulic Brake Diagram

#

Description
Price

1

RH CALIPER - Call your local BRP dealership | Includes 1 To 9

705600043

Unavailable

2

Brake Pad Kit

705600004

$48.48

3

Piston Set

705600078

$35.79

4

Spring

705600079

$13.51

5

Bleeding Screw

705600080

$14.49

6

Pin Set (2)

705600081

$18.63

7

Compression Boot

705600082

$9.30

8

Compression Boot

705600083

$9.30

9

RH BRAKE SUPPORT - Call your local BRP dealership

705600062

Unavailable

10

LH CALIPER - Call your local BRP dealership | Includes 10 To 18

705600044

Unavailable

11

Brake Pad Kit

705600014

$48.48

12

Piston Set

705600078

$35.79

13

Spring

705600079

$13.51

14

Bleeding Screw

705600080

$14.49

15

Pin Set (2)

705600081

$18.63

16

Compression Boot

705600082

$9.30

17

Compression Boot

705600083

$9.30

18

LH BRAKE SUPPORT - Call your local BRP dealership

705600061

Unavailable

19

MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27

705600045

Unavailable

20

ARM LEVER - Call your local BRP dealership

705600057

Unavailable

21

Piston Kit

705600058

Unavailable

22

Cap Set

705600084

$23.10

23

BOLT KIT - Call your local BRP dealership

705600085

Unavailable

24

SWITCH KIT - Call your local BRP dealership

705600086

Unavailable

25

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

26

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

27

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

28

Front Brake Hose | Includes 28 To 29

705600303

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Hex. Forming Screw M6 X 10

210261050

$1.63

31

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

32

Washer

414920600

$1.75

33

Hex. Flange Screw M6 X 20

207662044

$1.91

34

Hex. Flange Screw M6 X 20

207662044

$1.91

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

36

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

36

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

37

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

38

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.06

39

Rear Caliper | Includes 39 To 47

705600599

Unavailable

40

Brake Pad Kit

705600014

$48.48

41

Piston Set

705600078

$35.79

42

Spring

705600079

$13.51

43

Bleeding Screw

705600080

$14.49

44

Pin Set (2)

705600081

$18.63

45

Compression Boot

705600082

$9.30

46

Compression Boot

705600083

$9.30

47

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

48

Rear Brake Hose | Includes 48 To 49

705600304

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.00

51

Master Cylinder Ass'y | Includes 51 To 59

705600300

Unavailable

52

Piston Set

705600063

Unavailable

53

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

54

ROD ASSY - Call your local BRP dealership | Includes 54 To 57

705600301

Unavailable

55

Circlip

705600068

Unavailable

56

Compression Boot

705600090

Unavailable

57

Not Available As Spare Part - Friction Washer

Unavailable

58

HOSE ASS'Y - Call your local BRP dealership

705600190

Unavailable

59

Oil Tank, Brake Fluid Reservoir

705600182

$35.04

60

Tie-Rap 180 mm

414115200

$0.10

61

Interrupteur *Brake Switch

710001345

Unavailable

62

Brake Pedal

705600094

Unavailable

63

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

Unavailable

64

WASHER - Call your local BRP dealership

503107800

Unavailable

65

CIRCLIP - Call your local BRP dealership

293370012

Unavailable

66

Synthetic Grease, 400 G

293550010

Unavailable

67

O-RING - Call your local BRP dealership

293300053

Unavailable

68

RH BRAKE DISC - Call your local BRP dealership

705600042

Unavailable

69

LH BRAKE DISC - Call your local BRP dealership

705600093

Unavailable

70

Torx Screw M8 X 16, Scotch Grip

235381646

$2.40

71

Brake Disc

705500059

Unavailable

72

REAR CALIPER SUPPORT - Call your local BRP dealership

705600305

Unavailable

73

Caliper Guide

705500068

Unavailable

74

BANJO BOLT - Call your local BRP dealership

705600092

Unavailable

75

HEX. SCREW M10 X 16 - Call your local BRP dealership

250000029

Unavailable

76

LEVER ARM - Call your local BRP dealership

705600095

Unavailable

77

LEVER STOPPER - Call your local BRP dealership

705600389

Unavailable

78

SPRING - Call your local BRP dealership

705600055

Unavailable

79

SNAP RING - Call your local BRP dealership

705600097

Unavailable

80

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

81

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

82

Pin Kit

219702305

$30.57

83

Yoke

705600100

Unavailable

84

Hex. Jam Nut M8

232180600

$0.64

85

CIRCLIP - Call your local BRP dealership

293370014

Unavailable

86

CIRCLIP - Call your local BRP dealership

293370015

Unavailable

87

Hex. Flange Screw M6 X 16

210261650

$1.40

88

Was 293800013 Loctite 56765

219704454

$63.40
