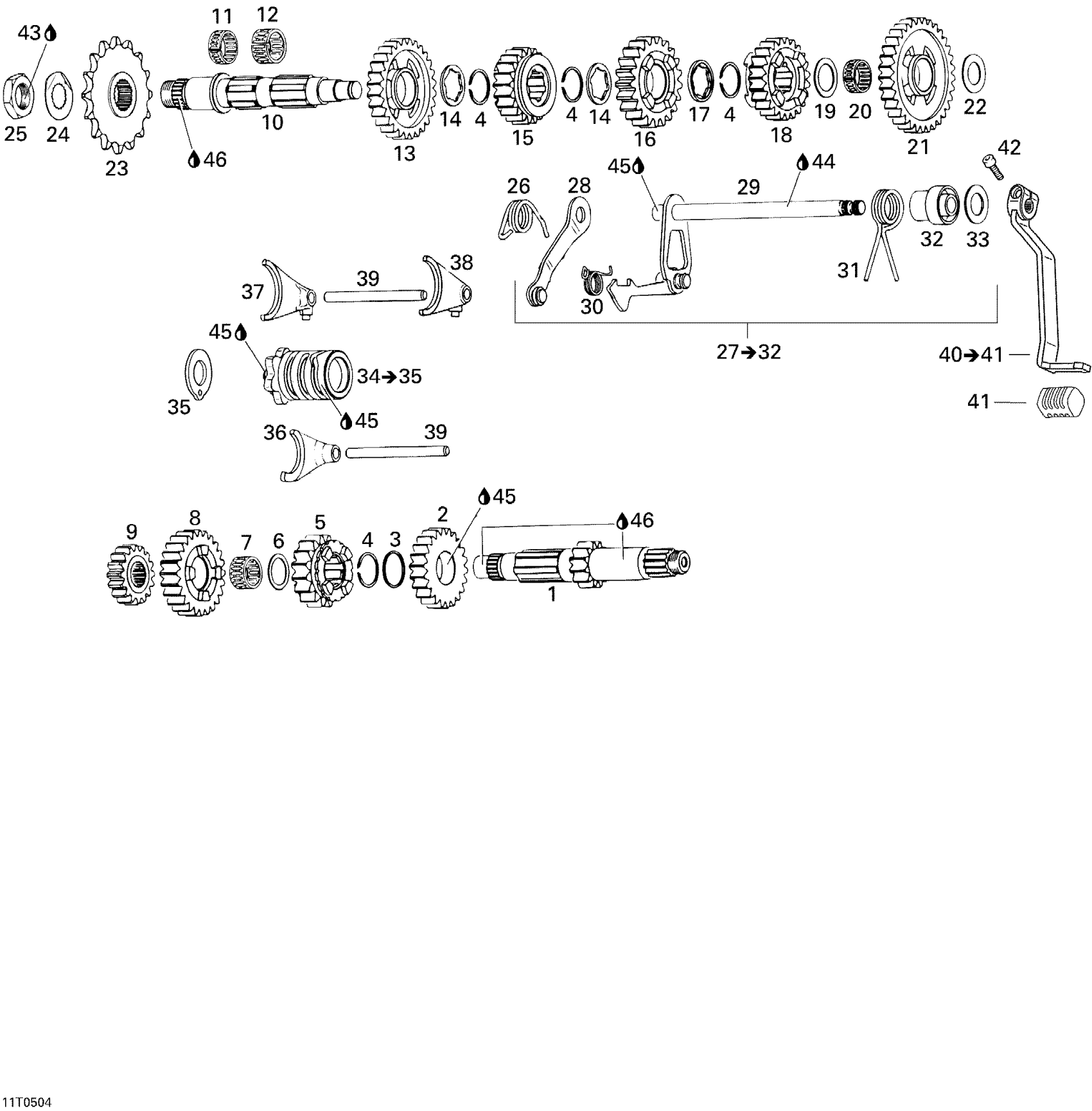

Can-Am DS 650/DS 650 X, 2005 Gear Shift Diagram

#

Description
Price

1

GEAR SET, 1 SPEED - Call your local BRP dealership

420281410

$349.97

2

Gear Set, 4 Speed

420281416

Unavailable

3

THRUST WASHER - Call your local BRP dealership

420227825

$7.66

4

Circlip

420445302

$4.03

5

GEAR SET, 3 SPEED - Call your local BRP dealership

420281414

$280.74

6

THRUST WASHER - Call your local BRP dealership

420227445

Unavailable

7

NEEDLE BEARING - Call your local BRP dealership

420232805

$15.35

8

Gear Set, 5 Speed

420281418

Unavailable

9

Gear Set, 2 Speed

420281412

Unavailable

10

MAIN SHAFT - Call your local BRP dealership

420220730

$317.99

11

NEEDLE BEARING - Call your local BRP dealership

420232520

$18.43

12

Needle Bearing

420232530

$26.89

13

Not Available As Spare Part - Friction Washer

Unavailable

14

THRUST RING - Call your local BRP dealership

420627051

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

ANGULAR RING - Call your local BRP dealership

420627061

$14.58

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Thrust Washer

420244100

Unavailable

20

Needle Bearing

420232742

$17.66

21

Not Available As Spare Part - Friction Washer

Unavailable

22

THRUST WASHER - Call your local BRP dealership

420227430

$5.68

23

CHAIN WHEEL - Call your local BRP dealership

420236470

$93.05

24

Tab Washer

420245391

$18.43

25

Ecrou Hex.M20 *Nut-Hex.M20

420242656

$17.66

26

INDEX SPRING - Call your local BRP dealership

420239095

$10.74

27

Shift-Shaft Ass'y | Includes 27 to 32

420620230

Unavailable

28

Index Lever

420248346

Unavailable

29

Shift-Shaft

420237929

Unavailable

30

Spring

420239075

Unavailable

31

SPRING - Call your local BRP dealership

420239084

$12.28

32

SPACER - Call your local BRP dealership

420247900

$11.85

33

THRUST WASHER - Call your local BRP dealership

420227430

$5.68

34

DRUM-SHIFT - Call your local BRP dealership | Includes 34 to 35

420258275

$119.99

35

ISOLATING WASHER - Call your local BRP dealership

420227562

$4.58

36

FORK-SHIFT - Call your local BRP dealership

420258038

$73.05

37

FORK-SHIFT - Call your local BRP dealership

420258028

$73.82

38

FORK-SHIFT - Call your local BRP dealership

420258018

$75.35

39

FORK SPINDLE - Call your local BRP dealership

420258782

$14.58

40

Gearshift Lever

420248317

Unavailable

41

Rubber Sleeve

420260205

$6.31

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Loctite 243, 10 ml

293800060

$20.77

44

Grease, Super Lube

293550030

$24.67

45

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

46

Petamo Grease, GHY133N, 400 g

420899271

$57.17
