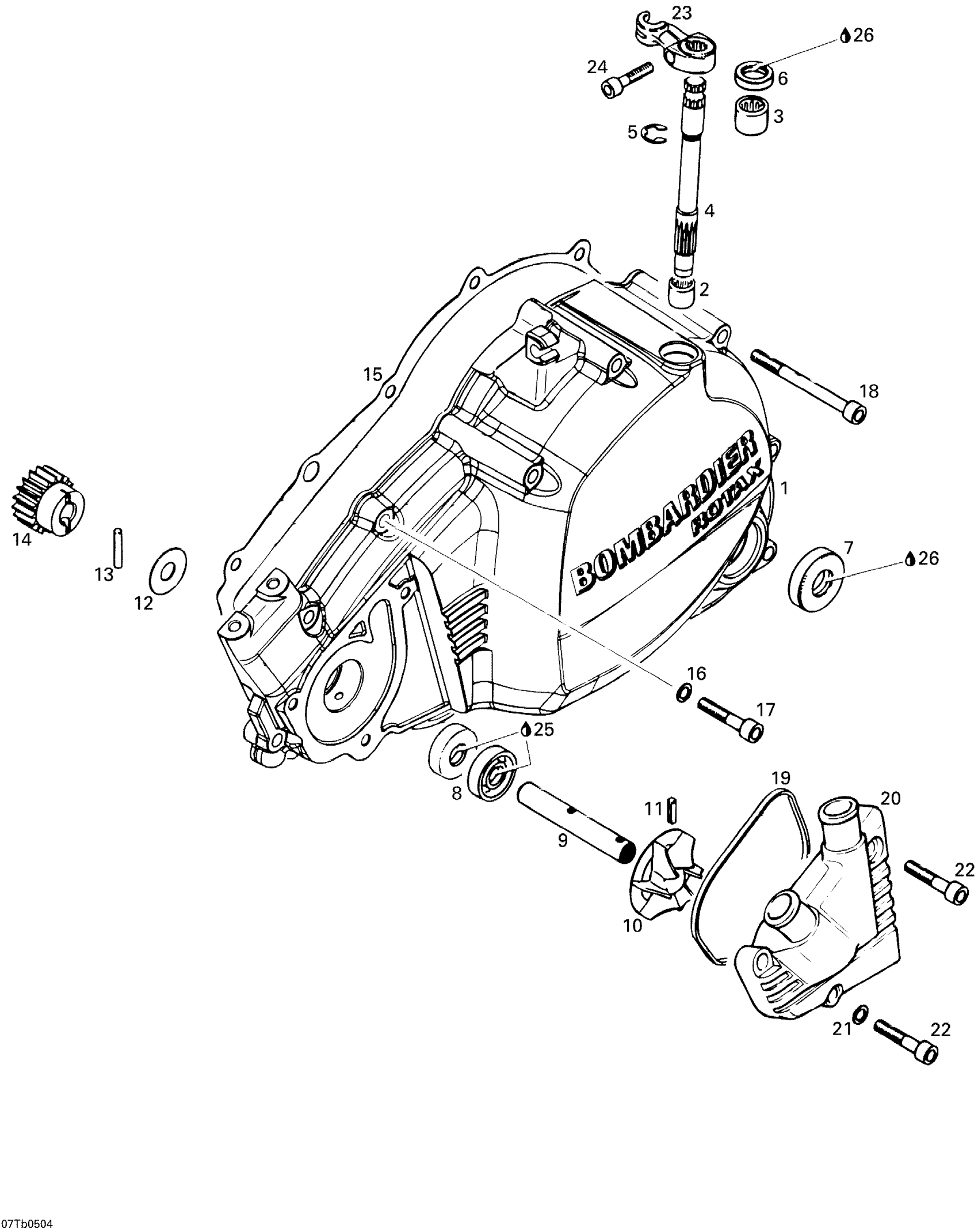

Can-Am DS 650/DS 650 X, 2005 Clutch Housing And Water Pump Diagram

#

Description
Price

1

CLUTCH COVER - Call your local BRP dealership

420610120

Unavailable

2

Needle Bushing

420232275

Unavailable

3

Needle Bushing

420232482

$17.88

4

Clutch Shaft Release, 11 Dents

420237023

Unavailable

5

RETAINING RING - Call your local BRP dealership

420845390

Unavailable

6

OIL SEAL - Call your local BRP dealership

420250992

Unavailable

7

Oil Seal

420250450

$15.64

8

Oil Seal

420230195

$14.52

9

SHAFT-PUMP WATER - Call your local BRP dealership

420237041

Unavailable

10

Water Pump Impeller

420222272

$13.58

11

Spring Pin

420229280

$4.91

12

Thrust Washer

420827590

$3.75

13

Needle Pin

420232420

$3.75

14

Gear, 18 Tooth

420234620

Unavailable

15

Gasket

420230581

$17.13

16

Seal Washer

420230415

$1.72

17

Socket Head Screw M6 X 30

205063044

$1.63

18

SOCKET HEAD SCREW M6 X 75 - Call your local BRP dealership

420240532

Unavailable

19

O-RING - Call your local BRP dealership

420850430

Unavailable

20

WATER PUMP COVER - Call your local BRP dealership

420211270

Unavailable

21

Seal Washer

420230415

$1.72

22

Socket Head Screw M6 X 25

205062544

$1.01

23

Lever-Release Clutch

420248305

Unavailable

24

Socket Head Screw M6 X 25

205062544

$1.01

25

Dow Corning 111, 150 g

413707000

$59.99

26

Grease, Super Lube

293550030

$28.33
