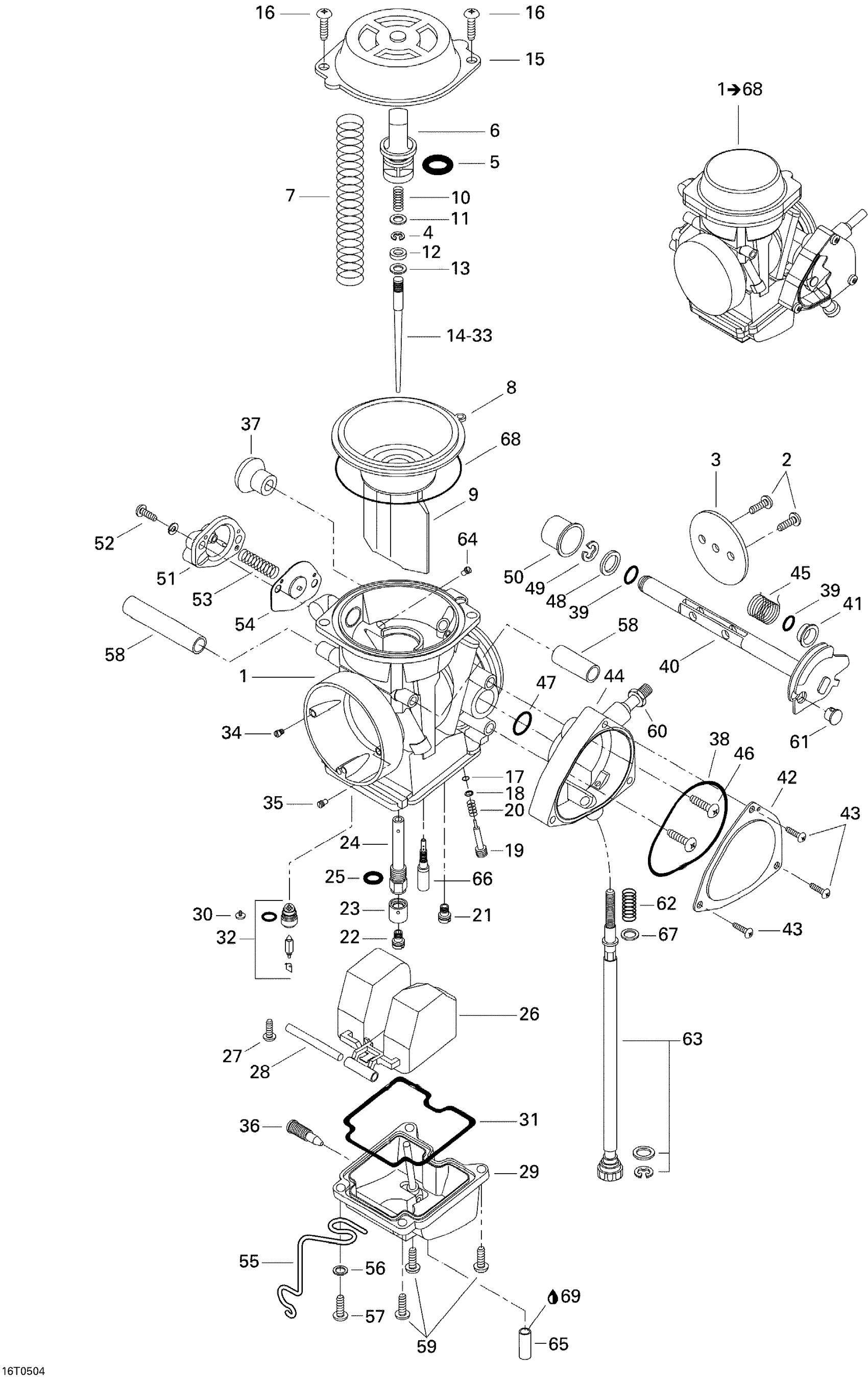

Can-Am DS 650/DS 650 X, 2005 Carburetor Diagram

#

Description
Price

1

Carburator Bsr42-4

707200142

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

E-Ring

404152200

$4.29

5

O-RING - Call your local BRP dealership

270500144

$10.74

6

HOLDER - Call your local BRP dealership

707200067

$9.97

7

SPRING - Call your local BRP dealership

707200147

$11.51

8

DIAPHRAGM - Call your local BRP dealership

707200113

Unavailable

9

Piston Valve

707200114

Unavailable

10

SPRING - Call your local BRP dealership

707200071

Unavailable

11

WASHER - Call your local BRP dealership

707200072

$7.66

12

RING - Call your local BRP dealership

707200065

$7.66

13

WASHER - Call your local BRP dealership

707200064

$7.17

14

NEEDLE J8-6BCY22-60 - Call your local BRP dealership

707200137

$30.74

15

DIAPHRAGM COVER - Call your local BRP dealership

707200116

$49.97

16

Screw

404161903

$3.19

17

O-RING - Call your local BRP dealership

404139900

Unavailable

18

WASHER - Call your local BRP dealership

707200018

Unavailable

19

ADJUSTER - Call your local BRP dealership

707200117

Unavailable

20

Spring

707200078

Unavailable

21

Starter Jet 45.0

707200108

Unavailable

22

MAIN JET 165 - Call your local BRP dealership

270500411

$3.97

23

RING - Call your local BRP dealership

707200148

$23.82

24

Jet Holder

707200080

Unavailable

25

O-RING - Call your local BRP dealership

270500119

Unavailable

26

FLOAT ASS?Y - Call your local BRP dealership

707200103

Unavailable

27

SCREW - Call your local BRP dealership

404138600

$2.89

28

Pin

404123400

Unavailable

29

FLOAT BODY ASS?Y - Call your local BRP dealership

707200119

Unavailable

30

SCREW - Call your local BRP dealership

404161861

$3.89

31

O-Ring

707200083

$17.66

32

VALVE-NEEDLE 3.0 - Call your local BRP dealership

707200139

Unavailable

33

Jet-needle

707200121

Unavailable

34

PILOT JET 110 - Call your local BRP dealership

707200122

$13.82

35

JET 120 - Call your local BRP dealership

707200123

Unavailable

36

SCREW - Call your local BRP dealership

707200024

Unavailable

37

PLUNGER ASS'Y - Call your local BRP dealership

707200124

Unavailable

38

O-RING - Call your local BRP dealership

707200092

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

COVER - Call your local BRP dealership

707200093

Unavailable

43

SCREW - Call your local BRP dealership

707200091

Unavailable

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Not Available As Spare Part - Friction Washer

Unavailable

51

Cover Ass’y

707200105

Unavailable

52

SCREW - Call your local BRP dealership

404901400

$3.20

53

SPRING - Call your local BRP dealership

707200129

$9.97

54

DIAPHRAGM ASS?Y - Call your local BRP dealership

707200106

Unavailable

55

CLIP - Call your local BRP dealership

707200130

$25.35

56

Washer

707200101

Unavailable

57

Screw

404138700

$3.69

58

Hose

707200131

Unavailable

59

SCREW - Call your local BRP dealership

404159300

Unavailable

60

NUT - Call your local BRP dealership

707200132

Unavailable

61

CABLE GUIDE - Call your local BRP dealership

707200058

$15.35

62

Spring

404101700

$4.29

63

Cable-Adjuster

707200140

Unavailable

64

AIR JET 1.3 - Call your local BRP dealership

707200134

Unavailable

65

Hose

707200135

Unavailable

66

Jet-Pilot 40

707200136

Unavailable

67

WASHER - Call your local BRP dealership

707200141

$7.66

68

Ring

404162023

Unavailable

69

Glue Tube, Loctite 454, 20 G

413708300

$59.97
