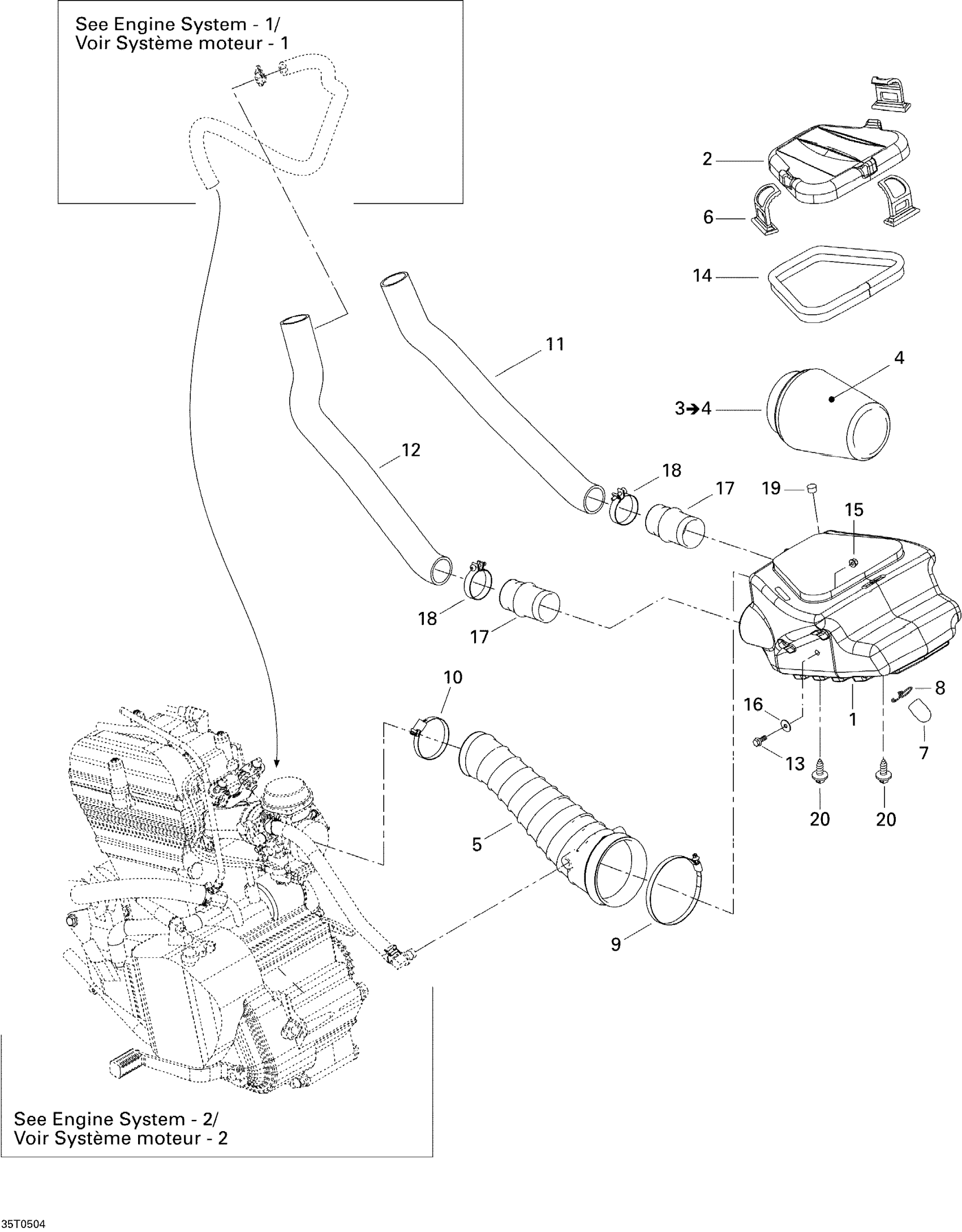

Can-Am DS 650/DS 650 X, 2005 Air Intake Diagram

#

Description
Price

1

Air Silencer

707800021

Unavailable

2

Air Silencer Cover

707800022

Unavailable

3

Air Filter | Includes 3 To 4

707800023

Unavailable

4

Foam

707800074

Unavailable

5

Intake Adaptor

707800142

Unavailable

6

COVER LATCH - Call your local BRP dealership

708200003

Unavailable

7

Drain Tube

707800080

$6.99

8

RETAINER CLIP - Call your local BRP dealership

707800081

Unavailable

9

Norma Gear Clamp

514052983

$14.90

10

Norma Gear Clamp

293650118

$11.18

11

Vent Hose

707800093

Unavailable

12

Vent Hose

707800094

Unavailable

13

Hex. Flange Screw M6 X 20

207662044

$1.91

14

Neoprene Seal 3000Mm Long

219704371

$50.34

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

16

Flat Washer

250200082

$0.40

17

DEFLECTOR - Call your local BRP dealership

707800038

Unavailable

18

GEMI CLAMP - Call your local BRP dealership

293650160

Unavailable

19

Cap

572051500

$5.22

20

Mount Dart

293730040

$0.99
