Description

Price

1

Camshaft, Inlet

420220190

Unavailable

2

CAMSHAFT, EXHAUST - Call your local BRP dealership

420220200

$358.43

3

TIMING GEAR, 34 TEETH - Call your local BRP dealership

420634280

Unavailable

4

HEX. SCREW M10 X 20 - Call your local BRP dealership

207102044

$0.98

5

WASHER - Call your local BRP dealership

420627040

Unavailable

6

CHAIN-TIMING - Call your local BRP dealership

420297891

$176.12

7

Chain Guide

420236230

Unavailable

8

CHAIN TENSION GUIDE - Call your local BRP dealership

420236221

Unavailable

9

HEX. SCREW M18 X 10 - Call your local BRP dealership

420552277

$12.28

10

Crush Washer

420552280

$2.99

11

Chain Tensioner

415129408

$52.62

12

Bearing Screw M6

420240943

$4.29

13

Chain Guide Bow

420236240

Unavailable

14

DISTANCE SCREW M6 X 16 - Call your local BRP dealership

420240960

$10.52

15

CENTRIFUGAL WEIGHT - Call your local BRP dealership

420231045

$89.20

16

PEG - Call your local BRP dealership

420232910

$8.29

17

SPRING - Call your local BRP dealership

420239920

$3.82

18

Loctite 243, 10 ml

293800060

$20.77

19

Sealant Loctite 648

219703000

$35.72

20

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

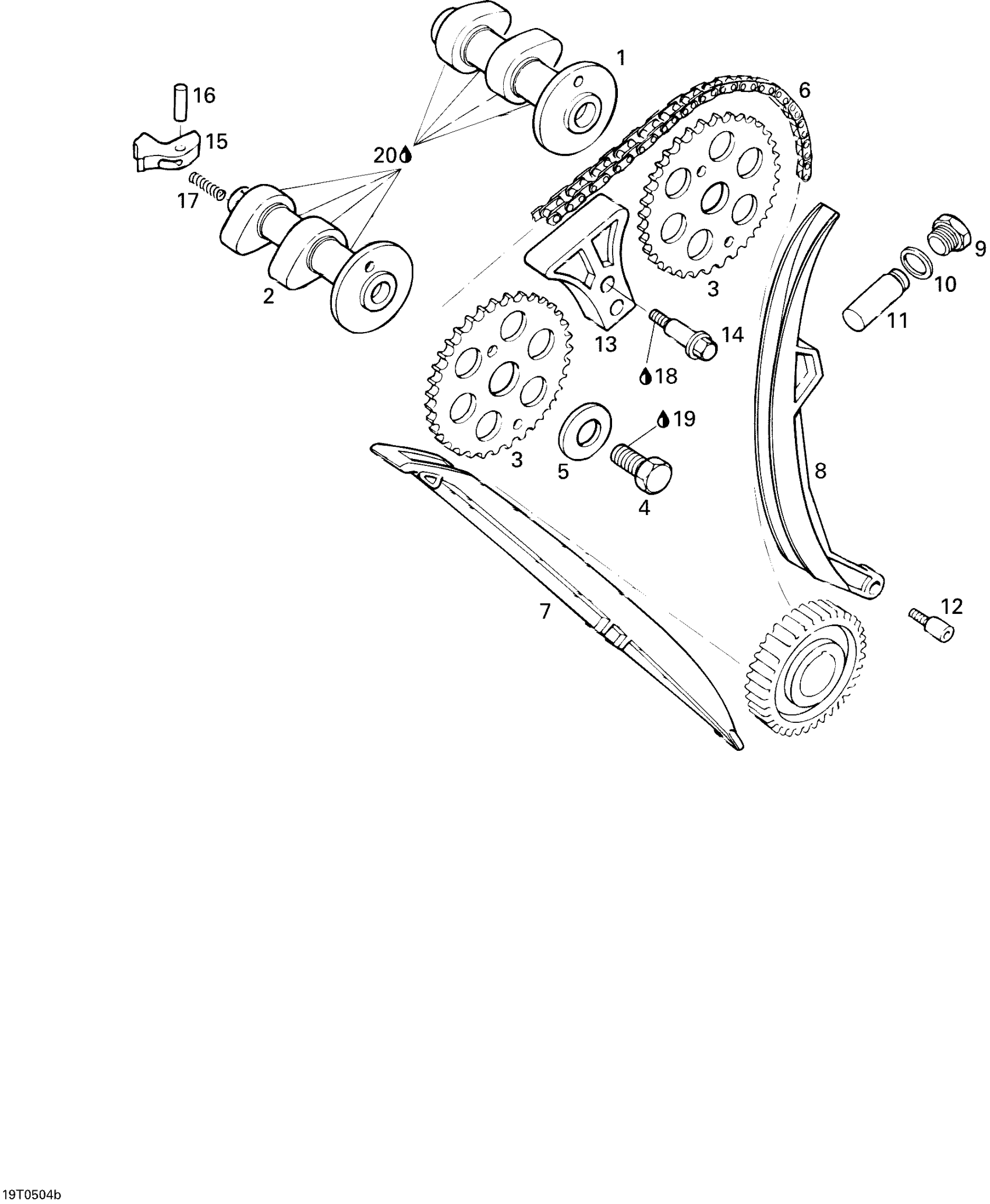

Can-Am DS 650/DS 650 X, 2005 Valve 2 Diagram

Camshaft, Inlet

TIMING GEAR, 34 TEETH - Call your local BRP dealership

WASHER - Call your local BRP dealership

Chain Guide

CHAIN TENSION GUIDE - Call your local BRP dealership

Chain Guide Bow

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
