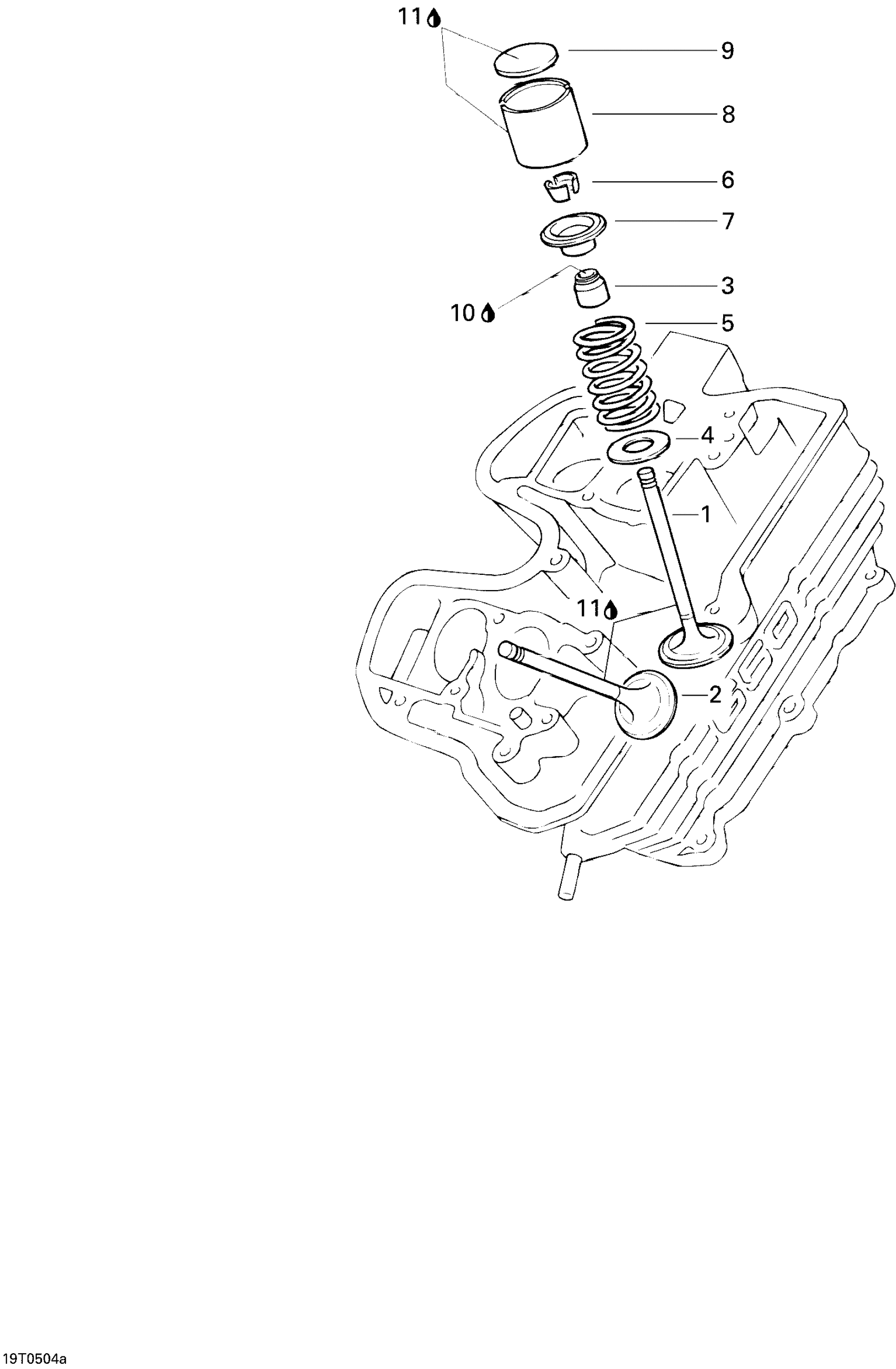

Can-Am DS 650/DS 650 X, 2005 Valve 1 Diagram

#

Description
Price

1

Inlet Valve

420253770

$59.97

2

EXHAUST VALVE - Call your local BRP dealership

420253780

$69.20

3

Seal

420230510

$11.77

4

THRUST WASHER - Call your local BRP dealership

420227982

$7.89

5

VALVE SPRING - Call your local BRP dealership

420239290

$14.23

6

Valve Cotter

420253645

$6.11

7

VALVE SPRING RETAINER - Call your local BRP dealership

420253760

$15.35

8

VALVE TAPPET - Call your local BRP dealership

420253545

$39.97

9

SHIM 2,1 - Call your local BRP dealership

420253741

$13.43

9

SHIM 2,2 - Call your local BRP dealership

420253742

$13.43

9

SHIM 2,3 - Call your local BRP dealership

420253743

Unavailable

9

SHIM 2,4 - Call your local BRP dealership

420253744

$13.05

9

SHIM 2,5 - Call your local BRP dealership

420253745

$14.23

9

SHIM 2,6 - Call your local BRP dealership

420253746

$13.05

9

Shim 2,7"

420253747

Unavailable

9

SHIM 2,8 - Call your local BRP dealership

420253748

$13.05

9

SHIM 2,9 - Call your local BRP dealership

420253749

Unavailable

9

SHIM 2,15 - Call your local BRP dealership

420253752

$13.43

9

SHIM 2,25 - Call your local BRP dealership

420253753

$13.43

9

Shim 2,35"

420253754

Unavailable

9

SHIM 2,45 - Call your local BRP dealership

420253755

$13.43

9

Shim 2,55"

420253756

Unavailable

10

Grease, Super Lube

293550030

$24.67

11

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
