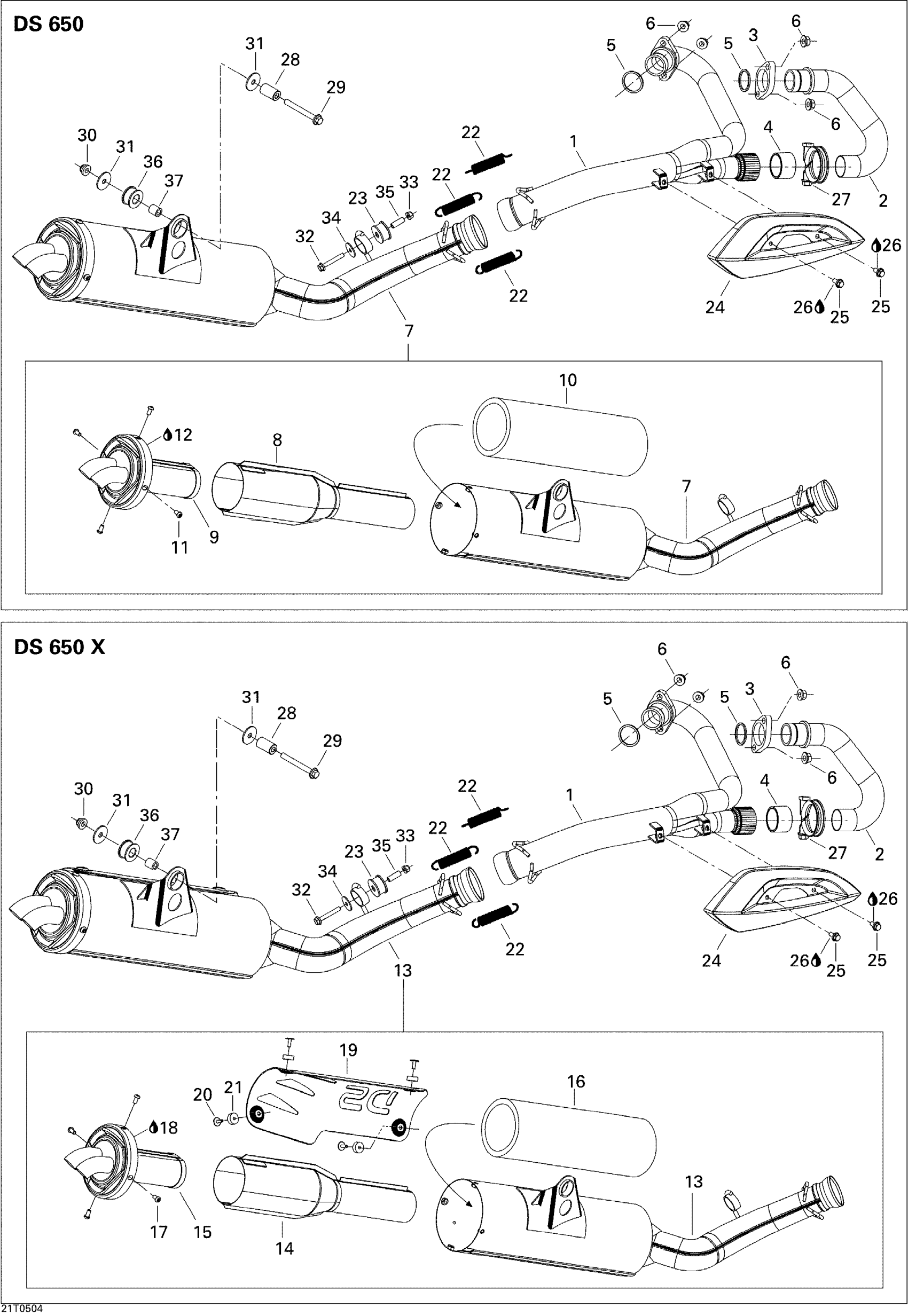

Can-Am DS 650/DS 650 X, 2005 Exhaust System Diagram

#

Description
Price

1

LH TUNED PIPE - Call your local BRP dealership

707600019

$221.51

2

RH TUNED PIPE - Call your local BRP dealership

707600196

Unavailable

3

EXHAUST CLAMP - Call your local BRP dealership

707600024

Unavailable

4

PIPE GASKET - Call your local BRP dealership

707600020

$13.82

5

PIPE GASKET - Call your local BRP dealership

707600069

Unavailable

6

Hex. Flange Nut M8

233081416

$1.63

7

Tuned Pipe | DS 650

707600065

Unavailable

8

Perforated Tube | DS 650

707600053

Unavailable

9

END PIECE - Call your local BRP dealership | DS 650

707600066

$323.05

10

Insulator | DS 650

707600089

Unavailable

11

Socket Screw Button Head M6 X 10 | DS 650

250000436

$1.74

12

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77

13

TUNED PIPE - Call your local BRP dealership | DS 650 X

707600188

Unavailable

14

Perforated Tube | DS 650

707600053

Unavailable

15

END PIECE - Call your local BRP dealership | DS 650

707600066

$323.05

16

Insulator | DS 650

707600089

Unavailable

17

Socket Screw Button Head M6 X 10 | DS 650

250000436

$1.74

18

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77

19

Heat Shield | DS 650 X

707600179

Unavailable

20

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

21

Rubber Washer | DS 650 X

250200034

Unavailable

22

Spring

415107100

$6.20

23

Anti-Vibration Rubber

707600702

$8.34

24

Heat Shield, viper Red | DS 650

707600223

Unavailable

24

HEAT SHIELD, SLATE GRAY - Call your local BRP dealership | DS 650 X

707600241

$36.12

25

Hex. Flange Screw M6 X 12

207661244

$1.70

26

Loctite 271, 10 ml

293800005

$20.77

27

GEAR CLAMP - Call your local BRP dealership

293650093

Unavailable

28

SPACER - Call your local BRP dealership

707600049

$9.97

29

Hex. Flange Screw M8 X 70

207687044

$6.11

30

Hex. Flange Elastic Nut M8

233281414

$1.14

31

Flat Washer

224081301

$0.86

32

Hex. Flange Screw M6 X 40

207664044

$2.18

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

34

Washer

224060251

$0.57

35

Spacer

707600070

$11.98

36

Vibration Damper

707603323

$11.98

37

Bushing

293900106

$4.42
