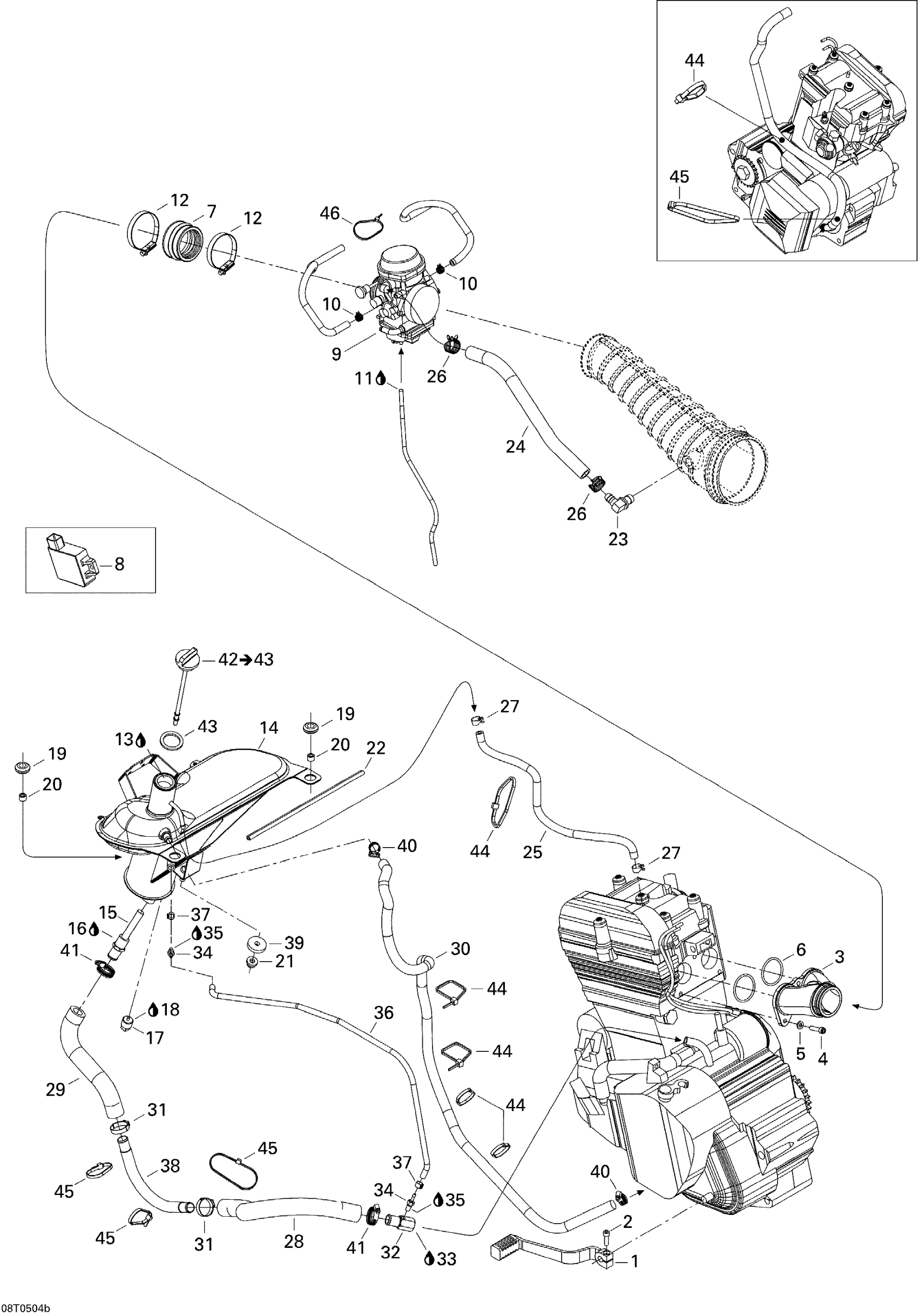

Can-Am DS 650/DS 650 X, 2005 Engine And Engine Support 2 Diagram

#

Description
Price

1

Gearshift Lever

420248317

Unavailable

2

Socket Head Screw M6 X 20

205062047

Unavailable

3

Intake Adaptor

420267230

Unavailable

4

Socket Head Screw M6 X 25

205062544

$0.88

5

Flat Washer 6 mm

234061410

$1.04

6

O-Ring

293300059

$7.31

7

Carburator Flange 52 mm

420267240

$46.12

8

AMPLIFIER BOX - Call your local BRP dealership

420664170

Unavailable

9

Carburator Bsr42-4

707200142

Unavailable

10

Spring Clamp

414420700

$0.68

11

Glue Tube, Loctite 454, 20 G

413708300

$59.97

12

Norma Gear Clamp

293650090

$4.38

13

Not Available As Spare Part - Friction Washer

Unavailable

14

OIL TANK - Call your local BRP dealership

707000146

$298.43

15

STRAINER - Call your local BRP dealership

707000076

$11.62

16

Was 293800013 Loctite 56765

219704454

$65.35

17

Magnetic Cap

250000053

Unavailable

18

Was 293800013 Loctite 56765

219704454

$65.35

19

Grommet

293720062

$4.16

20

Spacer

707000058

$12.17

21

Hex. Flange Elastic Nut M8

233281414

$1.14

22

TRIM 30000MM LONG - Call your local BRP dealership

219704405

Unavailable

23

Elbow Fitting

414523600

$3.99

24

OIL LINE - Call your local BRP dealership

414644800

$25.35

25

Hose

219704549

$47.66

26

Spring Clamp

414655700

$0.68

27

Spring Clamp

414415200

$0.83

28

HOSE 15.8 MM, METER - Call your local BRP dealership

707000098

Unavailable

29

HOSE 15.8 MM, METER - Call your local BRP dealership

707000098

Unavailable

30

HOSE 9.5 MM, METER - Call your local BRP dealership

709000022

Unavailable

31

Crimp Clamp

293650099

$4.60

32

Adaptor

707000185

Unavailable

33

Loctite 277, 10 ml

293800073

Unavailable

34

Hose Adaptor

707000240

Unavailable

35

Was 293800013 Loctite 56765

219704454

$65.35

36

HOSE 3.5 MM, METER - Call your local BRP dealership

707000243

$43.82

37

NORMA CLAMP - Call your local BRP dealership

293650120

$3.82

38

INTAKE TUBE - Call your local BRP dealership

707000059

Unavailable

39

RUBBER WASHER - Call your local BRP dealership

250200002

$4.95

40

Tridon Gear Clamp

293650171

$2.46

41

Norma Gear Clamp

293650124

$6.58

42

Oil Cap Ass'y | Includes 42 to 43

707000047

Unavailable

43

O-RING - Call your local BRP dealership

293250009

$8.43

44

Tie-Rap 180 mm

414115200

$0.09

45

Tie Wrap 368 mm

293750008

$0.85

46

Tie Wrap 142 mm

293750002

$0.88
