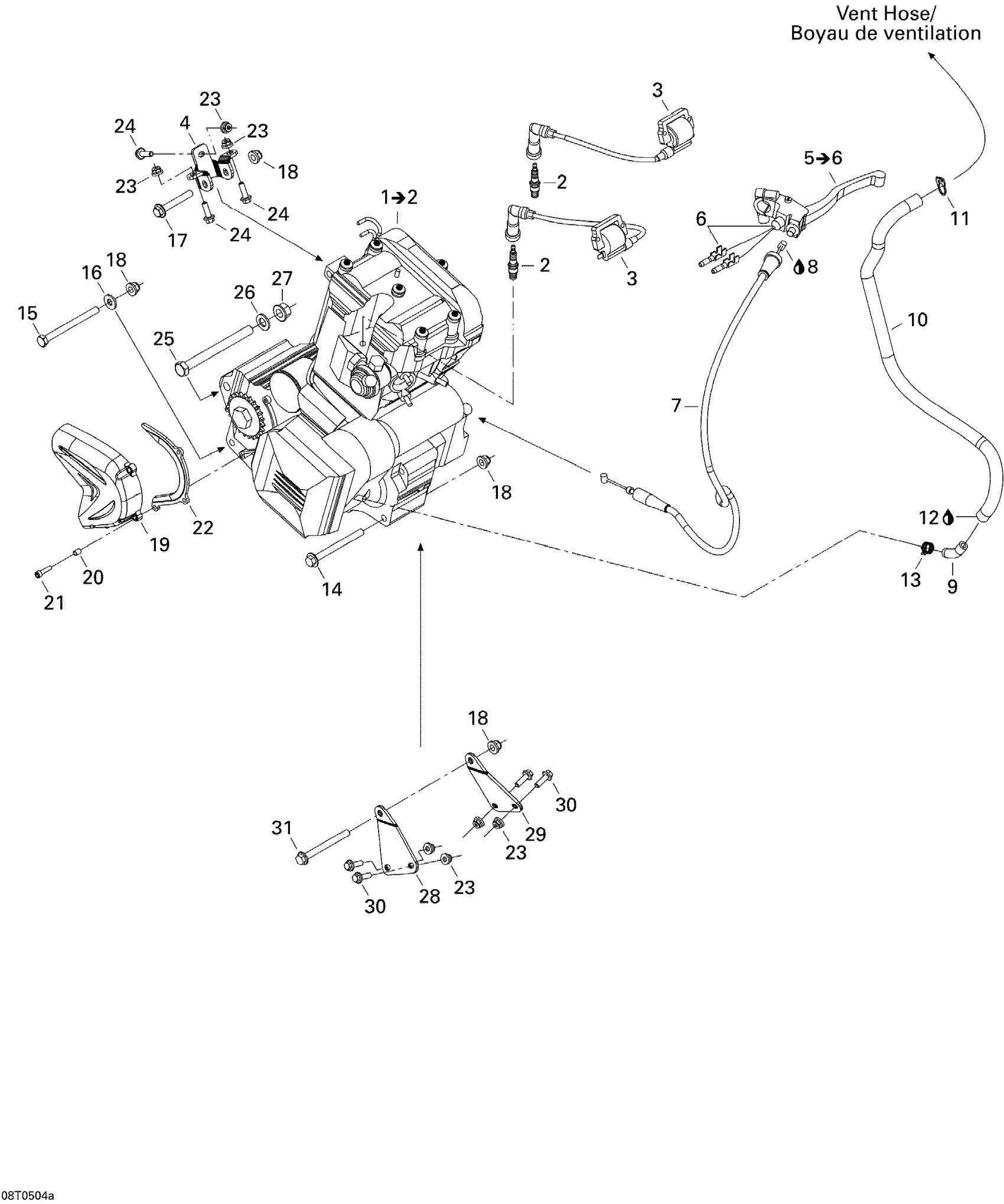

Can-Am DS 650/DS 650 X, 2005 Engine And Engine Support 1 Diagram

#

Description
Price

1

Rotax 4 Strokes Engine «654» | Includes 1 to 2

707000214

Unavailable

2

Spark Plug, NGK/DR8EA

707000008

$4.03

3

Ignition Coil

420265357

Unavailable

4

Support Bracket

707000029

Unavailable

5

Shifter Lever | Includes 5 to 6

707000035

Unavailable

6

LEVER SHIFTER SWITCH - Call your local BRP dealership

707000183

$39.97

7

SHIFTER LEVER CABLE - Call your local BRP dealership

707000027

Unavailable

8

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

9

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

10

Was 276000001 Hose 12.5 mm

219704394

$42.87

11

HOSE CLAMP - Call your local BRP dealership

293650119

$4.58

12

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

13

Spring Clamp

414655700

$0.68

14

Hex. Screw M10 X 110, Scotch Grip

230501046

Unavailable

15

Hex. Screw M10 X 120, Scotch Grip

230202046

Unavailable

16

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

17

Hex. Screw M10 X 70, Scotch Grip

207507046

$6.08

18

Hex. Flange Elastic Nut M10

233201436

$1.74

19

Pinion Cover

707000024

Unavailable

20

Spacer

707000065

$6.45

21

Socket Head Screw M6 X 25

205062544

$0.88

22

CHAIN GUARD - Call your local BRP dealership

707000163

$22.28

23

Hex. Flange Elastic Nut M8

233281414

$1.14

24

Hex. Flange Screw M8 X 25

207682544

$0.90

25

HEX. SCREW M14 X 150, SCOTCH GRIP - Call your local BRP dealership

230275044

$8.06

26

Flat Washer 14 mm

234071410

$1.38

27

ELASTIC FLANGED NUT M14 - Call your local BRP dealership

233271414

$11.14

28

RH SUPPORT ENGINE - Call your local BRP dealership

707000268

$13.82

29

LH SUPPORT ENGINE - Call your local BRP dealership

707000269

$13.82

30

Hex. Flange Screw M8 X 25

207682544

$0.90

31

Hex. Screw M10 X 100, Scotch Grip

230500046

$6.11
