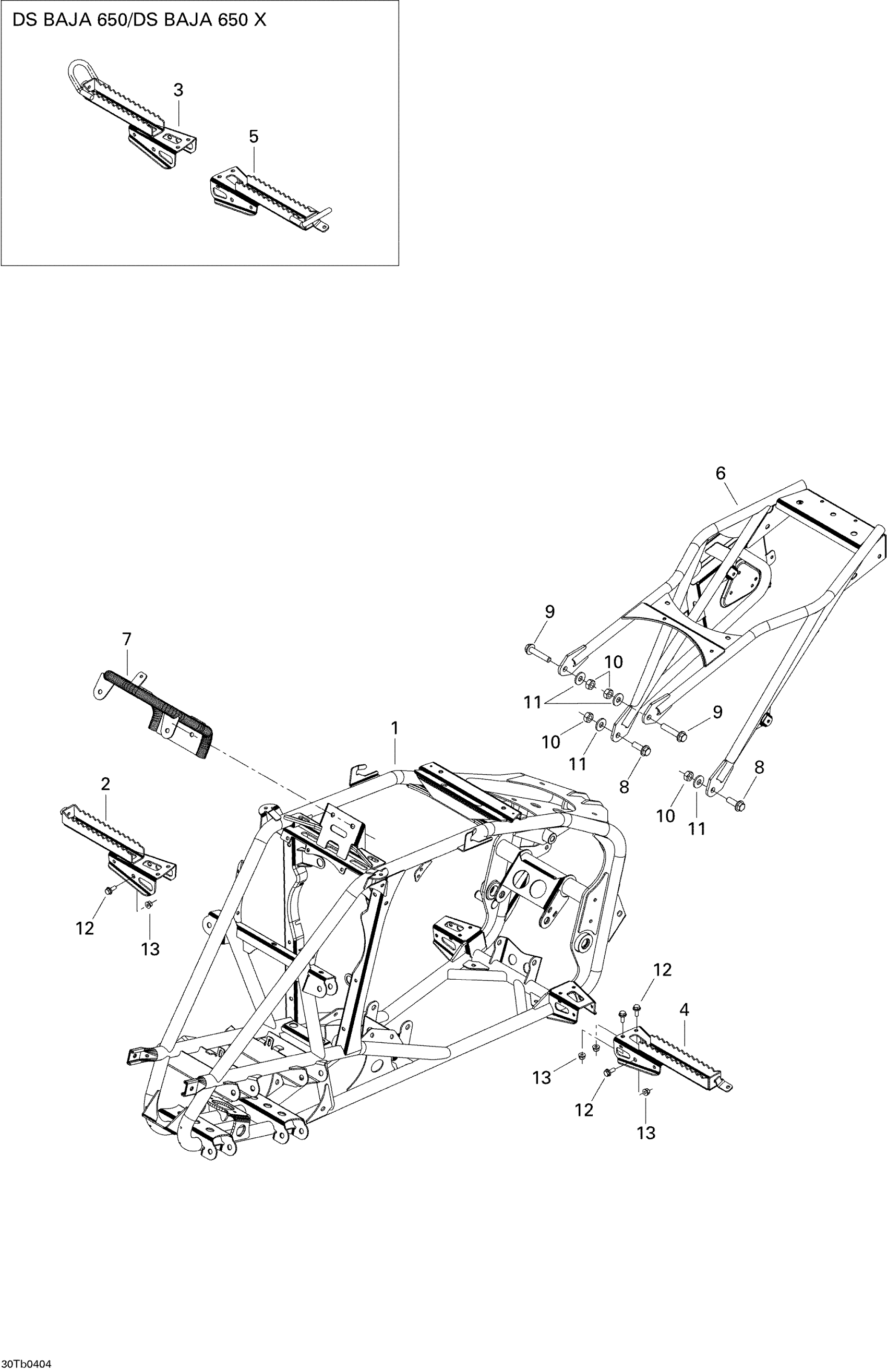

Can-Am DS 650/DS 650 Baja/X, 2004 Frame Diagram

#

Description
Price

1

Frame

705200678

Unavailable

2

RH Footrest, Black | DS650

705200684

Unavailable

3

RH FOOTREST, BLACK - Call your local BRP dealership | DS650 X

705200688

$60.74

4

LH Footrest, Black | DS650

705200691

Unavailable

5

LH FOOTREST, BLACK - Call your local BRP dealership | DS650 X

705200695

$58.43

6

Frame Extension

705200716

Unavailable

7

Box Support

705200717

Unavailable

8

Hex. Flange Screw M10 X 30, Scotch Grip

207503087

Unavailable

9

HEX. FLANGED SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership

207505087

$5.29

10

Hex. Nut M10

232001487

Unavailable

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Hex. Flange Screw M6 X 16

207661644

$0.61

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
