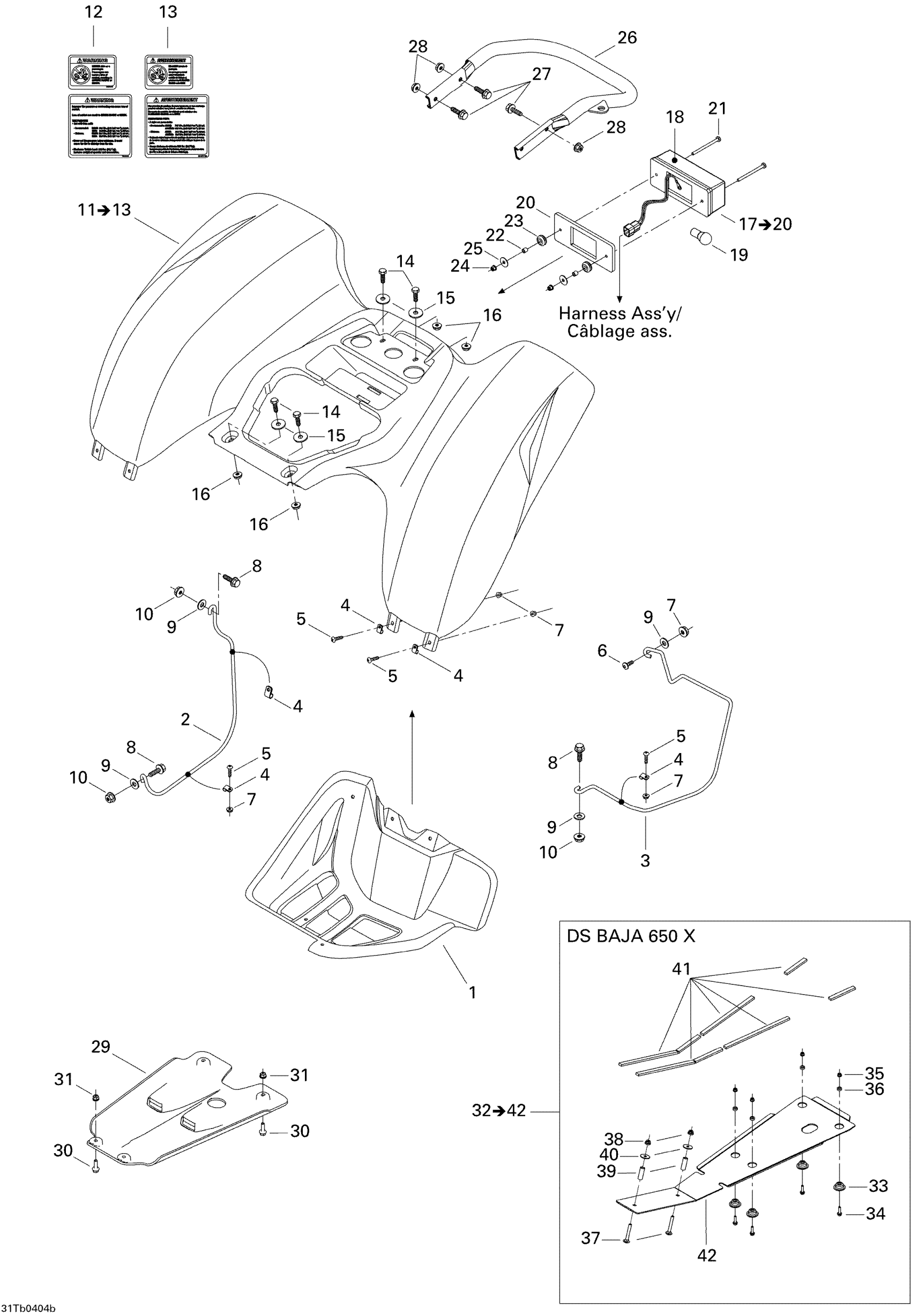

Can-Am DS 650/DS 650 Baja/X, 2004 Body, Rear View Diagram

#

Description
Price

1

RH FOOT PROTECTOR - Call your local BRP dealership

705000301

Unavailable

LH FOOT PROTECTOR - Call your local BRP dealership

705000302

Unavailable

2

RH FOOT PROTECTOR SUPPORT, INTERIOR - Call your local BRP dealership

705000639

Unavailable

LH FOOT PROTECTOR SUPPORT, INTERIOR - Call your local BRP dealership

705000642

Unavailable

3

RH FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership

705000117

Unavailable

LH FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership

705000120

Unavailable

4

Gear Clamp

293650150

Unavailable

5

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

6

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

250000032

Unavailable

7

Elastic Stop Nut M6

232561414

$1.55

8

Hex. Flange Screw M6 X 25

207662544

$0.53

9

Flat Washer

224061201

$1.11

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

11

Rear Fender Kit | DS 650 X / Includes 11 to 13

703500125

Unavailable

Rear Fender Kit | Includes 22 - 23.

703500159

Unavailable

12

Warning Decal, Tire And Passenger

704900040

Unavailable

13

Warning Decal, Tire And Passenger

704900102

Unavailable

14

Hex. Screw M6 X 18

207161844

$0.62

15

Flat Washer

224061201

$1.11

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

17

Tail Light Housing

710000102

Unavailable

18

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

19

Bulb

520000758

$7.49

20

GASKET - Call your local BRP dealership

710000129

Unavailable

21

PHILLIPS SCREW M5 X 70 - Call your local BRP dealership

208657041

Unavailable

22

Bushing

293900112

$9.30

23

Grommet

414036300

$2.22

24

Hex. Flange Elastic Nut M5

233251414

$1.66

25

Flat Washer

224060201

$1.12

26

Rear Bumper

705000143

Unavailable

27

Hex. Flange Screw M8 X 20

207682044

$0.92

28

Hex. Flange Elastic Nut M8

233281414

$1.14

29

Skid Plate | DS 650

705000304

Unavailable

Skid Plate

705000488

Unavailable

30

Hex. Flange Screw M6 X 20

207662044

$1.66

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

32

Protector Kit | Includes 27 to 36

705001166

Unavailable

33

CUP - Call your local BRP dealership

705200533

Unavailable

34

Hex. Flange Screw M6 X 25

207662544

$0.53

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

36

Bushing

293900028

$11.81

37

Carriage Bolt M8 X 60

207786044

$10.54

38

Hex. Flange Elastic Nut M8

233281414

$1.14

39

Bushing

293900051

Unavailable

40

Flat Washer

224081301

$0.84

41

Neoprene Seal (1PAC=3M)

219704364

$22.72

42

Motor Skid

705001133

Unavailable
