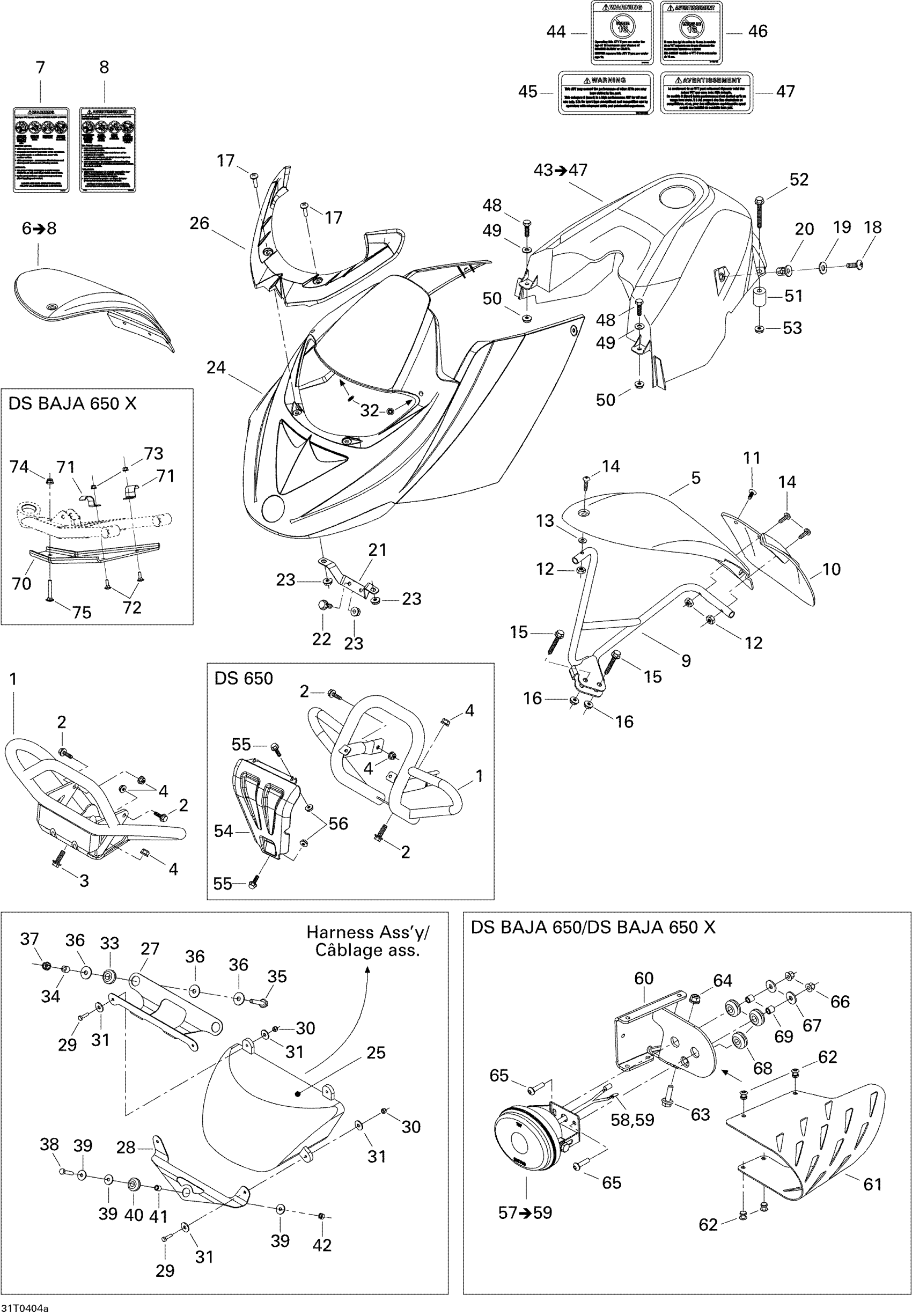

Can-Am DS 650/DS 650 Baja/X, 2004 Body, Front View Diagram

#

Description
Price

1

BUMPER DS - Call your local BRP dealership | DS 650

715000172

Unavailable

BUMPER DS - Call your local BRP dealership | DS 650

715000172

Unavailable

2

Hex. Flange Screw M8 X 25

207682544

$0.90

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

3

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.18

4

Hex. Flange Elastic Nut M8

233281414

$1.14

5

LH Front Fender Kit, Black | DS 650 X / Includes 8 to 10

703500127

Unavailable

LH Front Fender Kit | Includes 15 - 17.

703500160

Unavailable

6

RH FRONT FENDER, BLACK - Call your local BRP dealership | DS 650 X

705000360

Unavailable

RH Front Fender Kit

705000485

Unavailable

7

WARNING DECAL, DEATH AND INJURIES - Call your local BRP dealership

704901878

Unavailable

8

Warning Decal, Death And Injuries

704900002

Unavailable

9

RH FRONT FENDER SUPPORT - Call your local BRP dealership

705001090

Unavailable

LH FRONT FENDER SUPPORT - Call your local BRP dealership

705001091

$150.74

10

RH FRONT MUDGUARD - Call your local BRP dealership

705000095

Unavailable

LH FRONT MUDGUARD - Call your local BRP dealership

705000096

$20.74

11

Dart

414939500

$0.86

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

13

Flat Washer

224061201

$1.11

14

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

250000032

Unavailable

15

Hex. Flange Screw M8 X 35

207683544

$1.39

16

Hex. Flange Elastic Nut M8

233281414

$1.14

17

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

250000147

$3.57

18

Phillips Screw M6 X 20, Scotch Grip

250000043

Unavailable

19

BUSHING - Call your local BRP dealership

506117300

Unavailable

20

JACK NUT M6 - Call your local BRP dealership

732610057

$4.32

21

FASCIA BRACKET, BLACK - Call your local BRP dealership

705000146

$36.89

22

Hex. Flange Screw M6 X 16

207661644

$0.61

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

24

FRONT FASCIA, BLACK - Call your local BRP dealership | DS 650 X

705000888

$75.35

Front Fascia, Red | DS 650

705000889

Unavailable

25

Headlamp | Includes 25 to 26

705000805

Unavailable

25

BULB - Call your local BRP dealership

710000685

$8.43

26

Headlamp Cover | DS 650 X

705000806

Unavailable

Headlamp Cover(Orange | DS BAJA 650

705000871

Unavailable

Headlamp Cover, Yellow | DS BAJA 650 X

705000986

Unavailable

27

SUPERIOR LAMP BRAKET - Call your local BRP dealership

705000905

Unavailable

28

LAMP SUPPORT - Call your local BRP dealership

705000904

Unavailable

29

HEX. SCREW M4 X 16 - Call your local BRP dealership

207141644

Unavailable

30

Elastic Stop Nut M4

232541414

$0.48

31

Flat Washer 4 mm, Stainless

234042600

$0.92

32

Push Nut

732610072

$1.72

33

Grommet

709000582

$4.38

34

Bushing

293900105

$6.26

35

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

36

Flat Washer

224061201

$1.11

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

38

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

39

Washer

517124300

$0.16

40

Grommet

414036300

$2.22

41

Bushing

293900112

$10.14

42

Elastic Stop Nut M5

232551414

$0.72

43

Tank Cover Kit | DS 650 / Includes 44 to 48

703500265

Unavailable

Tank Cover Kit | DS 650 X / / Includes 44 to 48

703500335

Unavailable

44

Warning Decal, Under 16 Years Old

704900011

Unavailable

45

WARNING DECAL, PERFORMANCE - Call your local BRP dealership

704900089

Unavailable

46

Warning Decal, Under 16 Years Old | French Version

704900012

Unavailable

47

Warning Decal,, Performance

704900105

Unavailable

48

Hex. Screw M6 X 30

207063044

$0.98

49

Flat Washer

224061201

$1.11

50

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

51

SPACER - Call your local BRP dealership

705000114

Unavailable

52

Hex. Flange Screw M8 x 60

207686044

$2.56

53

Hex. Flange Elastic Nut M8

233281414

$1.14

54

Protective Plate

705000303

Unavailable

55

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

57

HEADLAMP - Call your local BRP dealership | DS 650 X / Includes 59 to 62

710000268

Unavailable

58

Female Terminal | DS 650 X

278001009

$2.55

59

Insulated Sheath

278001007

$3.22

60

RH HEADLAMP SUPPORT - Call your local BRP dealership | DS 650 X

705000397

$21.51

LH Headlamp Support | DS 650 X

705000398

Unavailable

61

RH HEADLAMP PROTECTOR - Call your local BRP dealership | DS 650 X

705000399

$14.58

LH HEADLAMP PROTECTOR - Call your local BRP dealership | DS 650 X

705000400

$15.02

62

Pop Rivet 3/16" | DS 650 X

390402000

$0.28

63

Hex. Flange Screw M6 X 20

207662044

$1.66

64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

65

SOCKET HEAD SCREW M5 X 20 - Call your local BRP dealership | DS 650 X

205452046

$1.20

66

Hex. Flange Elastic Nut M5

233251414

$1.66

67

Washer | DS 650 X

391301600

$0.48

68

Grommet

414036300

$2.22

69

Bushing

293900112

$10.14

70

LH Arm Protector | DS 650 X

705001055

Unavailable

RH Arm Protector | DS 650 X

705001056

Unavailable

71

BRAKET - Call your local BRP dealership | DS 650 X

705001057

$17.66

72

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

73

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

74

Hex. Flange Elastic Nut M8

233281414

$1.14

75

Carriage Bolt M8 X 50 | DS 650 X

207785044

$6.11
