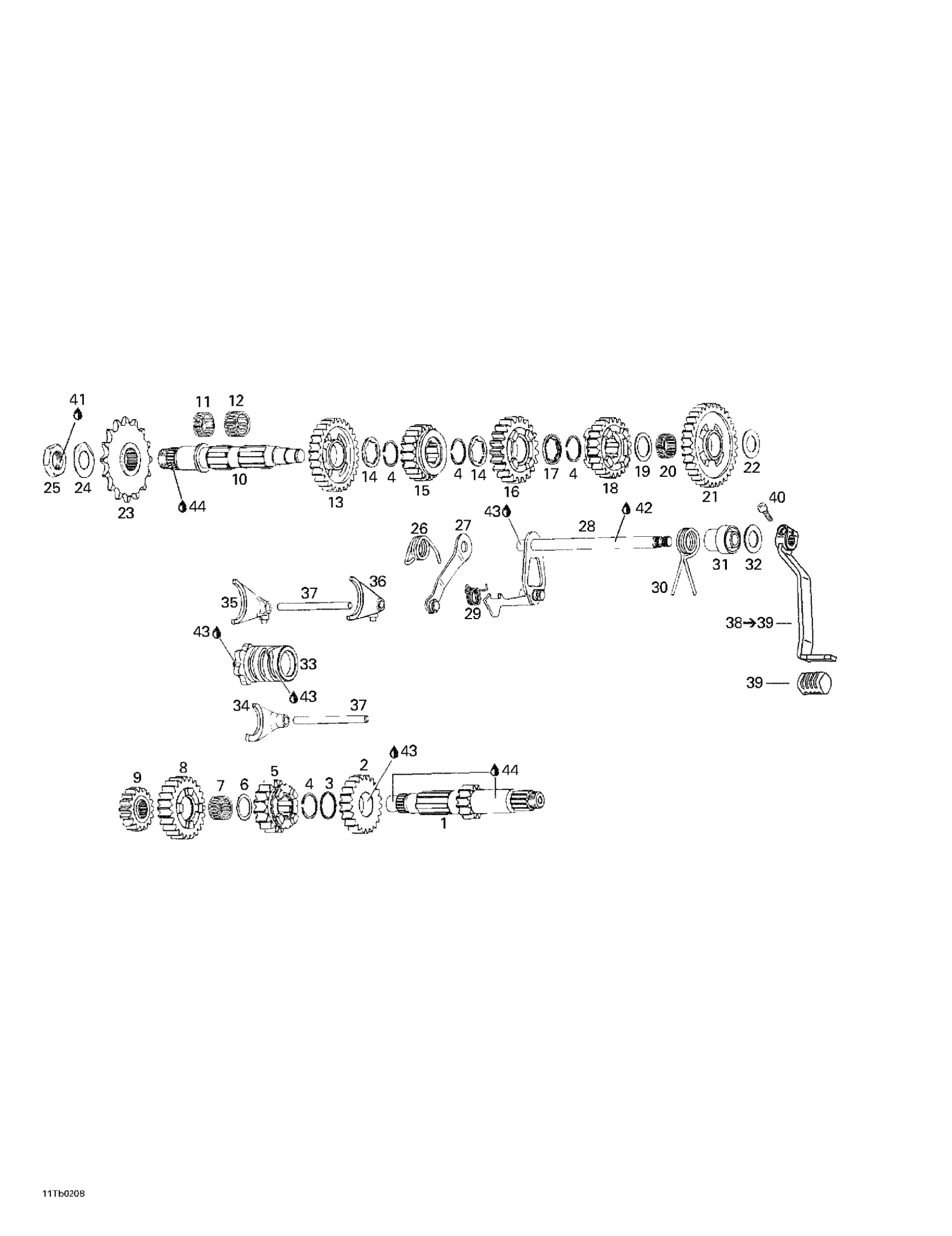

Can-Am DS 650 Baja, 2002 Transmission Diagram

#

Description
Price

1

Clutch Shaft (12 Teeth)

711220230

Unavailable

2

Intermediate Gear (21 Teeth)

711234715

Unavailable

3

Thrust Washer

711227825

$7.66

4

Circlip

420445302

$4.03

5

Pinion Gear (18 Teeth)

711634333

$280.74

6

Thrust Washer

711227445

$7.66

7

Needle Bearing

711232805

Unavailable

8

Intermediate Gear (23 Teeth)

711234725

Unavailable

9

Pinion Gear (15 Teeth)

711234675

Unavailable

10

Main Shaft

711220730

$317.99

11

NEEDLE BEARING - Call your local BRP dealership

420232520

$18.43

12

Needle Bearing

420232530

$26.89

13

Intermediate Gear (29 Teeth)

711634305

$151.51

14

Thrust Ring

711627051

$7.66

15

Pinion Gear (22 Teeth)

711634345

Unavailable

16

Intermediate Gear (26 Teeth)

711234705

$165.35

17

Angular Ring

711627061

$14.58

18

Pinion Gear (24 Teeth)

711634355

Unavailable

19

Thrust Washer

711244100

Unavailable

20

Needle Bearing

420232742

$17.66

21

Gear (33 Teeth)

711634290

Unavailable

22

THRUST WASHER - Call your local BRP dealership

420227430

$5.68

23

Chain Wheel

711236470

Unavailable

24

Tab Washer

420245391

$18.43

25

Ecrou Hex.M20 *Nut-Hex.M20

420242656

$17.66

26

Index Spring

711239095

$10.74

27

Index Lever

711248346

Unavailable

28

Shift-Shaft

711237929

Unavailable

29

Spring

711239075

Unavailable

30

Spring

711239082

$12.28

31

Spacer

711247900

$11.85

32

THRUST WASHER - Call your local BRP dealership

420227430

$5.68

33

Drum-Shift

711258275

$119.99

34

Fork-Shift

711258037

$73.05

35

Fork-Shift

711258027

$73.82

36

Fork-Shift

711258017

$75.35

37

Fork Spindle

711258782

$14.58

38

SHIFTER PEDAL - Call your local BRP dealership

711248317

Unavailable

39

Rubber Sleeve

711260205

$6.31

40

Socket Head Screw M6 X 20

205062044

$1.07

41

Loctite 243, 10 ml

293800060

$20.77

42

Grease, Super Lube

293550030

$24.67

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Was 420297616 Klueber Grease, 60g

219704464

$23.82
