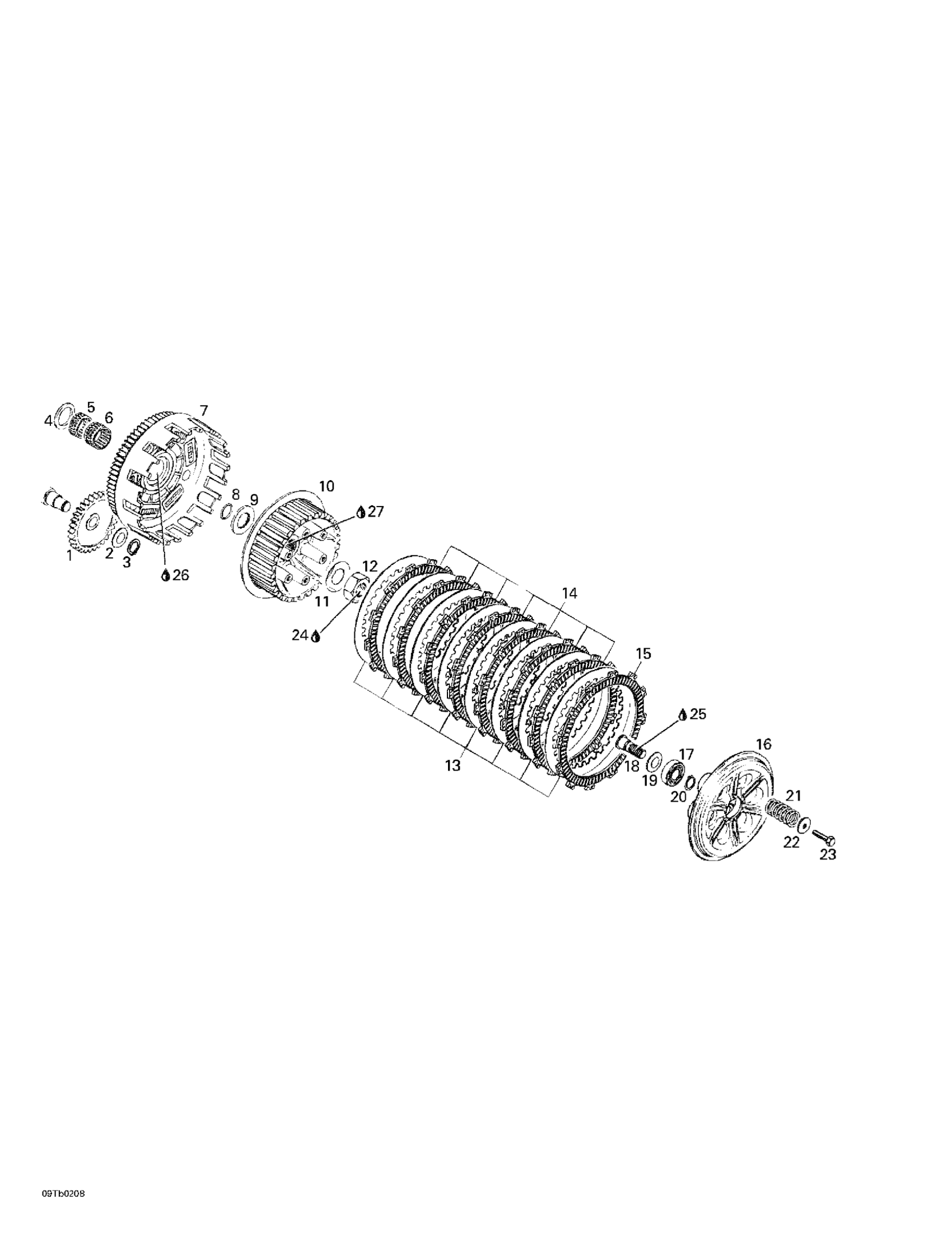

Can-Am DS 650 Baja, 2002 Clutch Diagram

#

Description
Price

1

Oil Pump Gear

711235272

$39.20

2

Thrust Washer

711227401

Unavailable

3

Retaining Ring

711945650

Unavailable

4

Thrust Washer

711427460

Unavailable

5

Needle Bearing

420932930

$26.12

6

Needle Bearing

711232890

Unavailable

7

Primary Drive Ass'y

711296365

$465.99

8

O-Ring

420250890

$2.50

9

Thrust Washer

711244950

$12.28

10

Clutch Hub

711259117

Unavailable

11

Tab Washer

711245325

Unavailable

12

Nut M18

711242607

$9.97

13

Plate 1,5 mm

420259262

$17.66

14

Friction Plate 3,5 mm

420259210

$15.08

15

FRICTION PLATE 3,5 MM - Call your local BRP dealership

420259215

Unavailable

16

Pressure Plate

711259122

Unavailable

17

Ball Bearing 6002

711232262

Unavailable

18

Rack-Actuation Clutch

711259202

Unavailable

19

Thrust Washer

711227401

Unavailable

20

Retaining Ring

711945650

Unavailable

21

CLUTCH SPRING - Call your local BRP dealership

420239162

$11.52

22

Washer

711244020

$4.72

23

Hex. Screw M6 X 25

207162544

$1.05

24

Loctite 243, 10 ml

293800060

$20.77

25

Grease, Super Lube

293550030

$24.67

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Was 420297616 Klueber Grease, 60g

219704464

$23.82
