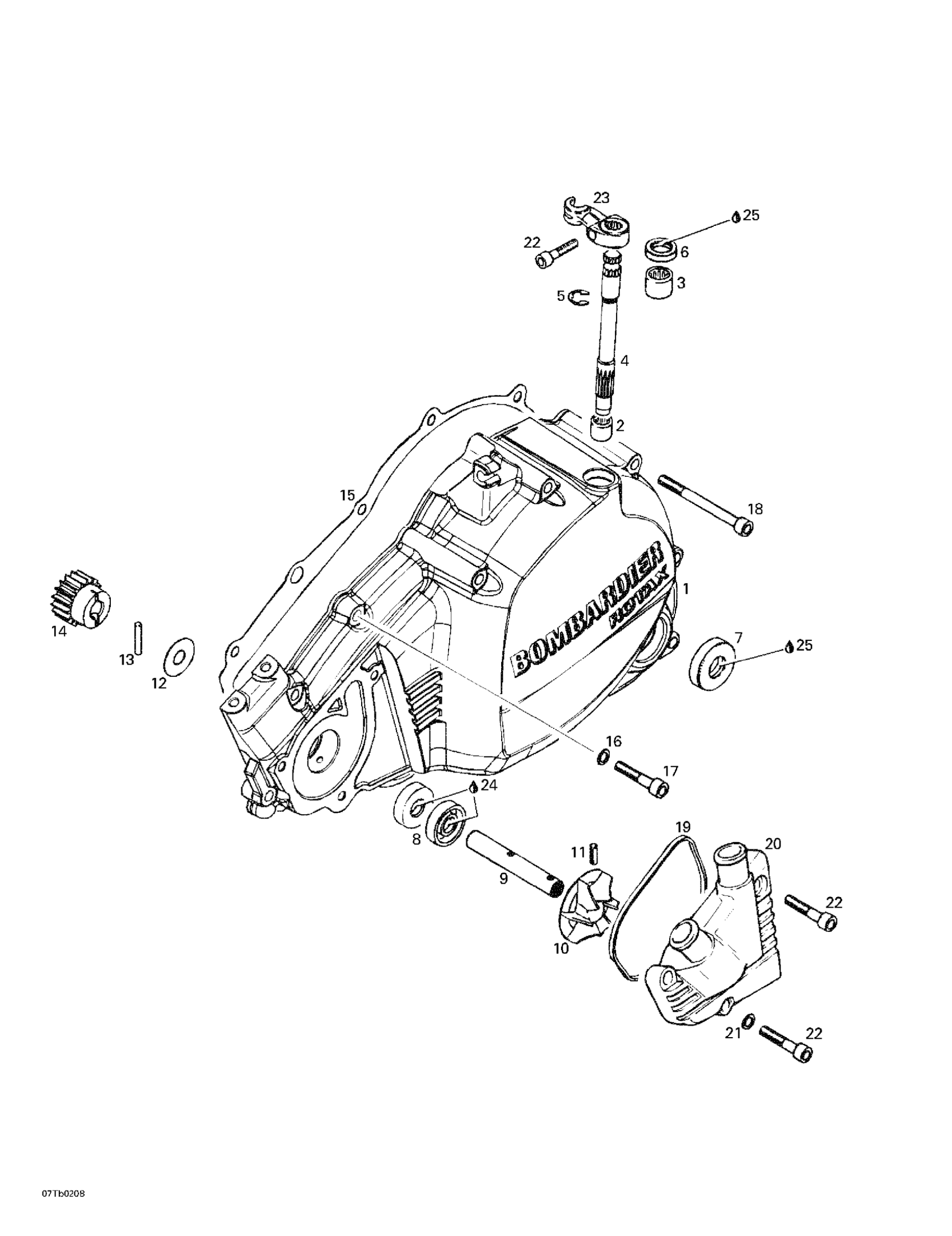

Can-Am DS 650 Baja, 2002 Clutch Housing Diagram

#

Description
Price

1

Clutch Cover

711610120

Unavailable

2

Needle Bushing

711232275

Unavailable

3

Needle Bushing

420232482

$15.57

4

Shaft-Release Clutch (11 Teeth)

711237022

Unavailable

5

RETAINING RING - Call your local BRP dealership

420845390

Unavailable

6

Oil Seal

711250992

Unavailable

7

Oil Seal

420250450

$16.89

8

Oil Seal

420230195

$12.65

9

Water Pump Shaft

711237040

Unavailable

10

Water Pump Impeller

420222272

$14.75

11

Spring Pin

420229280

$5.52

12

Thrust Washer

420827590

$3.86

13

Needle Pin

420232420

$3.86

14

Gear (18 Teeth)

711234620

Unavailable

15

Gasket

420230581

$17.66

16

Seal Washer

420230415

$1.77

17

Socket Head Screw M6 X 30

205063044

$1.42

18

Socket Head Screw M6 x 75

711240532

Unavailable

19

O-RING - Call your local BRP dealership

420850430

Unavailable

20

Waterpump Cover

711211270

Unavailable

21

Seal Washer

420230415

$1.77

22

Socket Head Screw M6 X 25

205062544

$0.88

23

Lever-Release Clutch

711248305

Unavailable

24

Dow Corning 111, 150 g

413707000

$57.82

25

Grease, Super Lube

293550030

$24.67
