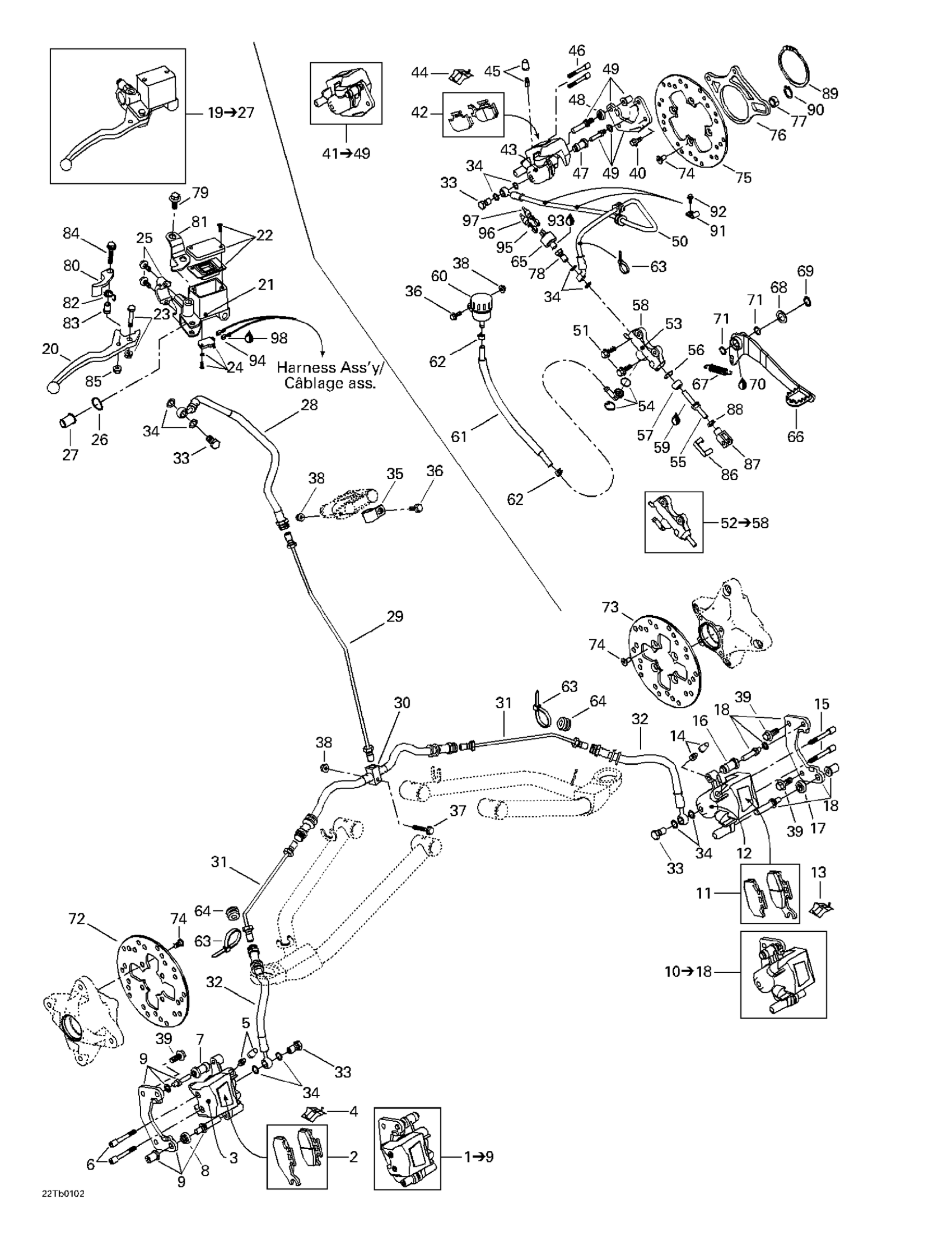

Can-Am DS 650, 7449, 2001 Hydraulic Brake Diagram

#

Description
Price

1

RH CALIPER - Call your local BRP dealership | Includes 1 To 9

705600043

$174.58

2

Brake Pad Kit

705600004

Unavailable

3

Piston Set

705600078

$36.89

4

Spring

705600079

Unavailable

5

Bleeding Screw

705600080

Unavailable

6

Pin Set (2)

705600081

Unavailable

7

Compression Boot

705600082

Unavailable

8

Compression Boot

705600083

Unavailable

9

RH BRAKE SUPPORT - Call your local BRP dealership

705600062

Unavailable

10

LH CALIPER - Call your local BRP dealership | Includes 10 To 18

705600044

Unavailable

11

Brake Pad Kit

705600014

Unavailable

12

Piston Set

705600078

$36.89

13

Spring

705600079

Unavailable

14

Bleeding Screw

705600080

Unavailable

15

Pin Set (2)

705600081

Unavailable

16

Compression Boot

705600082

Unavailable

17

Compression Boot

705600083

Unavailable

18

LH BRAKE SUPPORT - Call your local BRP dealership

705600061

$47.66

19

MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27

705600045

Unavailable

20

ARM LEVER - Call your local BRP dealership

705600057

Unavailable

21

Piston Kit

705600058

Unavailable

22

Cap Set

705600084

$23.05

23

BOLT KIT - Call your local BRP dealership

705600085

$13.05

24

SWITCH KIT - Call your local BRP dealership

705600086

$19.97

25

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

26

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

27

COMPRESSION BOOT - Call your local BRP dealership

705600089

$9.74

28

Brake Handle Hose

705600007

Unavailable

29

Vertical Hose

705600047

Unavailable

30

Flexible Hose

705600048

Unavailable

31

Horizontal Tube

705600070

Unavailable

32

Brake Hose

705600071

Unavailable

33

Banjo Bolt (M10 x 1.25 thread)

705600609

Unavailable

34

Washer

414920600

Unavailable

35

Open Clamp

705600040

$12.91

36

Hex. Flange Screw M6 X 20

207662044

Unavailable

37

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

39

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

40

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

Unavailable

41

Rear Caliper | Includes 39 To 47

705600599

Unavailable

42

Brake Pad Kit

705600014

Unavailable

43

Piston Set

705600078

$36.89

44

Spring

705600079

Unavailable

45

Bleeding Screw

705600080

Unavailable

46

Pin Set (2)

705600081

Unavailable

47

Compression Boot

705600082

Unavailable

48

Compression Boot

705600083

Unavailable

49

BRAKE SUPPORT ASS'Y - Call your local BRP dealership

705600017

Unavailable

50

BRAKE LINE - Call your local BRP dealership

705601393

$69.97

51

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

Unavailable

52

Master Cylinder Ass'y

705600050

Unavailable

53

Piston Set

705600063

Unavailable

54

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

55

Rod Ass'y

705600065

Unavailable

56

Circlip

705600068

Unavailable

57

Compression Boot

705600090

Unavailable

58

Master Cylinder

705600117

$167.66

59

Not Available As Spare Part - Friction Washer

Unavailable

60

Oil Tank, Brake Fluid Reservoir

705600182

$36.89

61

Hose

705600108

Unavailable

62

Spring Clamp

414415200

$0.83

63

Tie-Rap 180 mm

414115200

$0.09

64

Grommet

293720046

Unavailable

65

Interrupteur *Brake Switch

710001345

Unavailable

66

Brake Pedal

705600094

Unavailable

67

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

$9.20

68

WASHER - Call your local BRP dealership

503107800

$2.03

69

CIRCLIP - Call your local BRP dealership

293370012

Unavailable

70

Synthetic Grease, 400 G

293550010

Unavailable

71

O-RING - Call your local BRP dealership

293300053

$5.35

72

RH BRAKE DISC - Call your local BRP dealership

705600042

$63.05

73

LH BRAKE DISC - Call your local BRP dealership

705600093

$61.51

74

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

75

Brake Disc

705500059

Unavailable

76

Caliper Support

705500066

Unavailable

77

Caliper Guide

705500068

Unavailable

78

BANJO BOLT - Call your local BRP dealership

705600092

Unavailable

79

HEX. SCREW M10 X 16 - Call your local BRP dealership

250000029

Unavailable

80

LEVER ARM - Call your local BRP dealership

705600095

$31.51

81

Lever Stopper

705600096

$12.28

82

SPRING - Call your local BRP dealership

705600055

$5.35

83

SNAP RING - Call your local BRP dealership

705600097

$9.97

84

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

85

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

86

Pin Kit

219702305

Unavailable

87

Yoke

705600100

Unavailable

88

Hex. Jam Nut M8

232180600

Unavailable

89

CIRCLIP - Call your local BRP dealership

293370014

$8.43

90

CIRCLIP - Call your local BRP dealership

293370015

$4.05

91

CLIP - Call your local BRP dealership

414351600

$2.89

92

Hex. Flange Screw M6 X 16

210261650

$1.22

93

Was 293800013 Loctite 56765

219704454

Unavailable

94

Female Terminal

710000082

$6.03

95

Female Terminal | DS 650 X

278001009

Unavailable

96

Insulated Sheath

278000770

Unavailable

97

Insulated Sheath

278001007

Unavailable

98

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable
