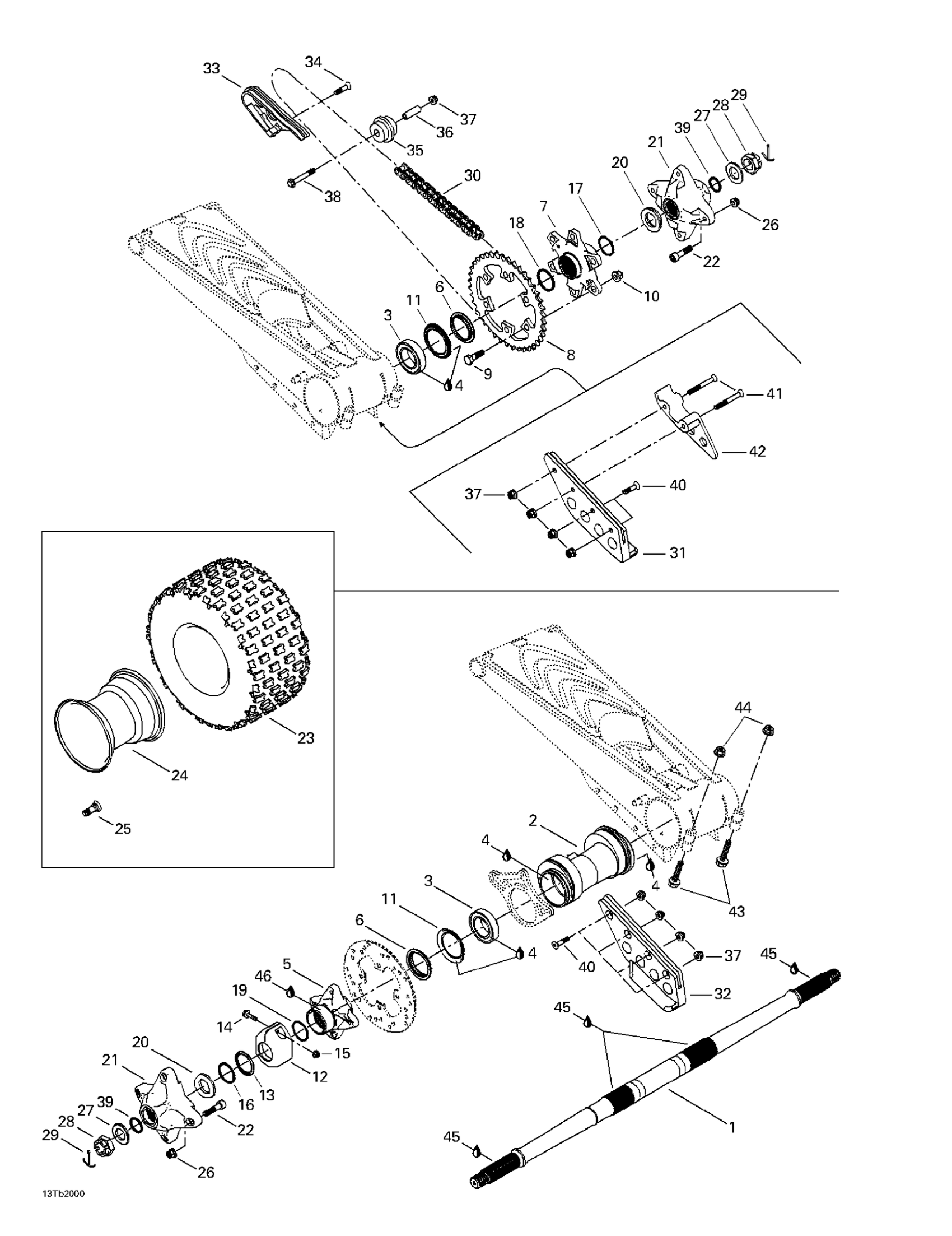

Can-Am DS 650, 7449, 2001 Drive System, Rear Diagram

#

Description
Price

1

Drive Axle

705500051

Unavailable

2

CHAIN TIGHTENER - Call your local BRP dealership

705500056

Unavailable

3

Cone Bearing

293350043

$32.28

4

Synthetic Grease, 400 G

293550010

Unavailable

5

Disc Brake Hub Ass'y

705500190

Unavailable

6

WEAR RING - Call your local BRP dealership

705500191

Unavailable

7

Sprocket Hub

705500192

Unavailable

8

Sprocket, 40 Teeth

705500054

Unavailable

9

Screw, Modified

250000034

Unavailable

10

Elastic Stop Nut M12

232521416

$1.40

11

Joint Etanche *Oil Seal

293250222

$18.43

12

Adjusting Nut

705500204

Unavailable

13

THRUST WASHER - Call your local BRP dealership

705500206

Unavailable

14

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

16

RING RETAINER - Call your local BRP dealership

705500065

$5.68

17

RING RETAINER - Call your local BRP dealership

705500108

$5.52

18

O-Ring

293300059

$7.31

19

O-RING - Call your local BRP dealership

293300060

$5.35

20

RING SUPPORT - Call your local BRP dealership

705500067

Unavailable

21

Wheel Hub

705500069

Unavailable

22

SCREW-SOCKET DIN.912 S.GRIP - Call your local BRP dealership

205504044

Unavailable

23

Rear Tire

705500063

Unavailable

24

Rear Rim

705500064

Unavailable

25

Rim Valve With Cap

705400193

$6.69

26

Flange Nut M10

732610084

$5.49

27

HARDENED WASHER - Call your local BRP dealership

250200004

$5.45

28

HEX. CASTELLATED NUT M24 - Call your local BRP dealership

250100006

$9.40

29

Cotter Pin

371003400

$0.69

30

Chain

705500052

$234.58

31

RH Protector

705500053

Unavailable

32

LH Protector

705500114

Unavailable

33

Slider-Shoe

705500071

Unavailable

34

Socket Head Screw M8 X 20, Scotch Grip

205882044

Unavailable

35

Chain Roller

705500070

Unavailable

36

Bushing

705500115

Unavailable

37

Hex. Flange Elastic Nut M8

233281414

$1.14

38

Hex. Flange Screw M8 x 60

207686044

$2.56

39

O-Ring

293300064

Unavailable

40

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205383544

$1.20

41

SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership

205387044

$3.75

42

PROTECTOR - Call your local BRP dealership

705500116

$16.12

43

Hex. Flange Screw M10 X 60

207606044

$2.78

44

Hex. Flange Elastic Nut M10

233201414

$1.26

45

Graisse *Grease

293550062

$15.35

46

Loctite 243, 10 ml

293800060

$20.77
