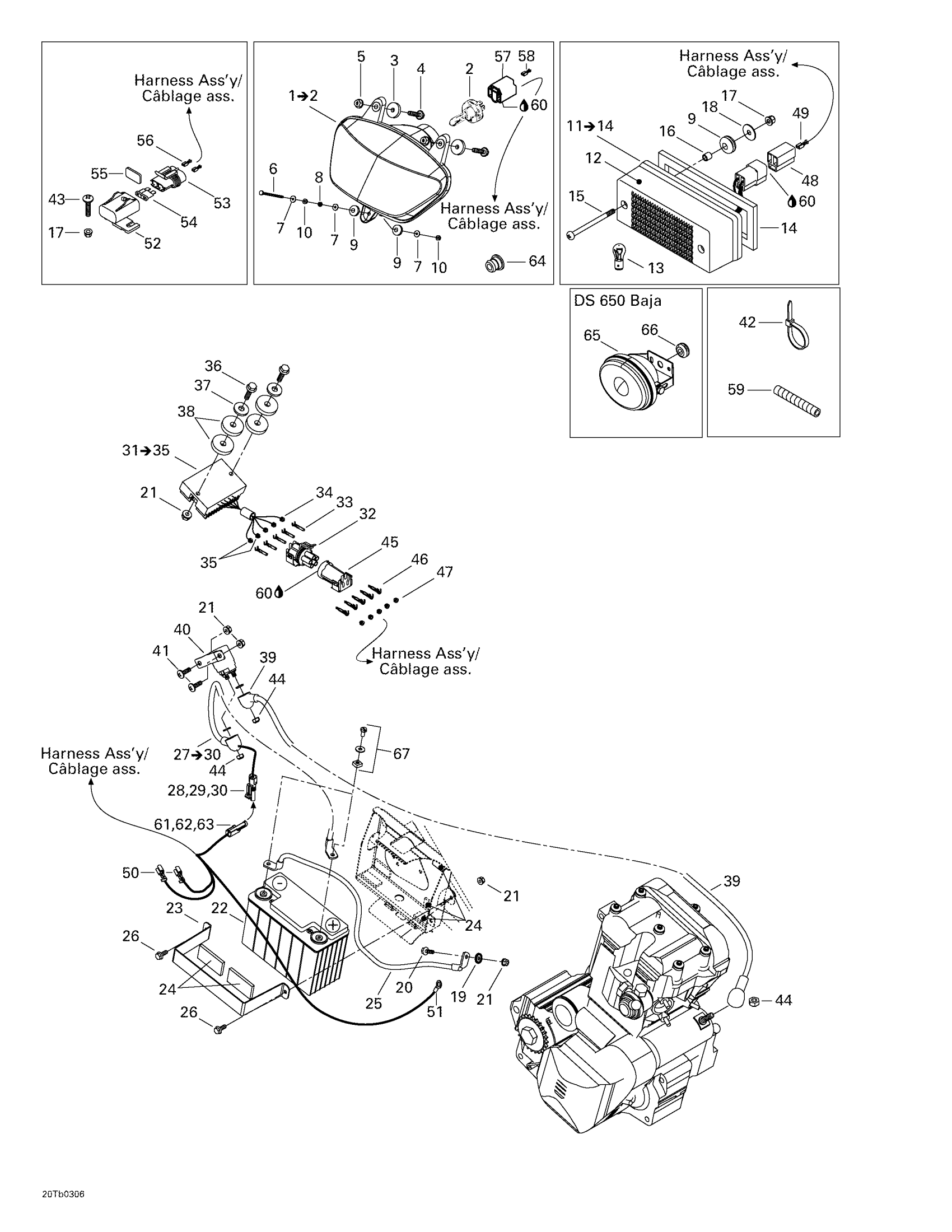

Can-Am DS 650, 2003 Electrical System 1 Diagram

#

Description
Price

1

HEADLAMP - Call your local BRP dealership

710000053

Unavailable

2

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

3

RUBBER WASHER - Call your local BRP dealership

250200002

Unavailable

4

Hex. Flange Screw M8 X 35

207683544

$1.39

5

Hex. Flange Elastic Nut M8

233281414

$1.14

6

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

7

Washer

517124300

$0.16

8

Nut

414806900

Unavailable

9

Grommet

414036300

$2.22

10

Hex. Flange Elastic Nut M5

233251414

$1.66

11

Tail Light Housing

710000102

Unavailable

12

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

13

Bulb

520000758

$7.49

14

GASKET - Call your local BRP dealership

710000129

Unavailable

15

PHILLIPS SCREW M5 X 70 - Call your local BRP dealership

208657041

Unavailable

16

Bushing

293900112

$10.14

17

Hex. Flange Elastic Nut M5

233251414

$1.66

18

Flat Washer

224060201

$1.15

19

External Serrated Lock Washer 6 mm

234461608

$0.92

20

Hex. Flange Screw M6 X 20

207662044

$1.66

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

22

Battery, 13 Amperes | Includes 7 to 8

710000283

Unavailable

23

RUBBER STRAP, BLACK - Call your local BRP dealership

710000087

Unavailable

24

PROTECTOR - Call your local BRP dealership

293830083

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Hex. Flange Screw M6 X 16

207661644

$0.61

27

Not Available As Spare Part - Friction Washer

Unavailable

28

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

29

Female Terminal

409007300

$0.36

30

Cap

710000049

Unavailable

31

Rectifier Ass'y | Includes 24 to 28

710000257

Unavailable

32

Female Housing, 5 Circuit

710000106

Unavailable

33

Female Terminal

409007300

$0.36

34

Wire Seal

278000218

$3.48

35

Wire Seal

710000048

$5.10

36

Hex. Flange Screw M6 X 35

207663544

$0.74

37

Washer

224060251

$0.57

38

RUBBER WASHER - Call your local BRP dealership

250200002

Unavailable

39

POSITIVE CABLE - Call your local BRP dealership | Includes 35 to 40

710000069

Unavailable

40

Starter Relay

515176011

$51.97

41

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

42

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 368 mm

293750008

$0.85

43

Forming Screw M5 x 16

250000676

$0.83

44

Elastic Stop Nut M6

232561414

$1.55

45

MALE HOUSING, 5 CIRCUITS - Call your local BRP dealership

710000107

Unavailable

46

Male Terminal

409004300

$5.46

47

Wire Seal

710000048

$5.10

48

Female Housing

409204300

Unavailable

49

Female Terminal

561503100

Unavailable

50

Female Terminal

409010700

$5.08

51

Open Barrel

278000992

$1.79

52

Fuse Holder Cap

278001326

$6.03

53

Fuse Holder

278001325

$8.57

54

Fuse, 15 Amperes

278000343

$2.72

55

Cushion

278000805

$3.22

56

Female Terminal

710000113

$6.03

57

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

58

FEMALE TERMINAL - Call your local BRP dealership

515175321

Unavailable

59

Tubing 6 Mm 3000Mm Long

219704425

$13.14

Was 409901700 Tubing (9 mm)

219704399

$79.97

Tubing 10 MM 1000MM Long

219704407

$2.20

Was 409901800 Tubing (13 mm)

219704400

$9.40

Tubing 16 Mm 1000Mm Long

219704408

$6.23

60

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

61

Female Housing, 1 Circuit

278000161

$8.98

62

MALE TERMINAL - Call your local BRP dealership

278001576

Unavailable

63

WIRE SEAL - Call your local BRP dealership

278001505

Unavailable

64

Plug

705000286

Unavailable

65

HEADLAMP - Call your local BRP dealership | DS 650 X / Includes 59 to 62

710000268

Unavailable

66

Grommet

414036300

$2.22

67

Battery Bolt Kit

250000282

$2.95
