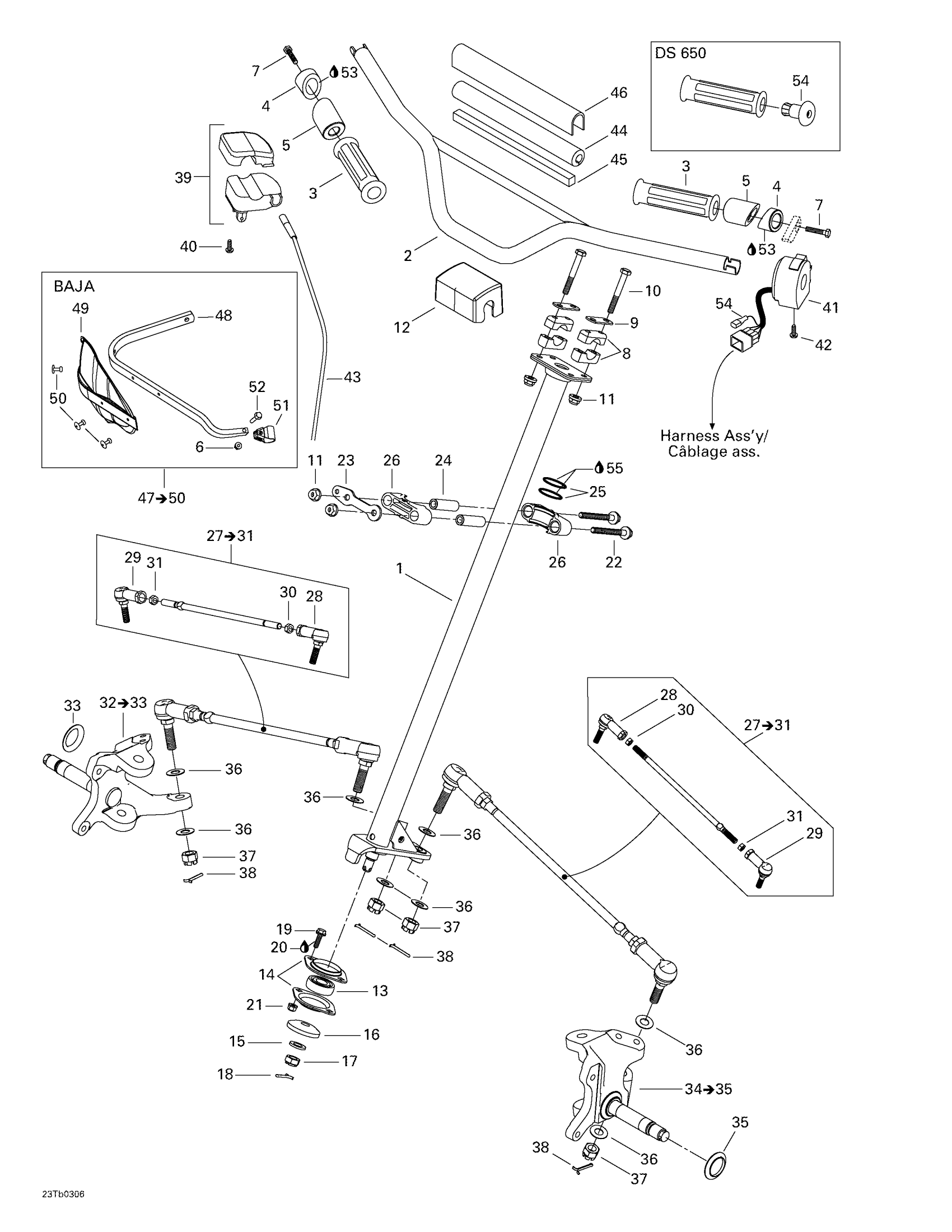

Can-Am DS 650, 2003 Steering System Diagram

#

Description
Price

1

Main Tube

709400067

Unavailable

2

HANDLE BAR - Call your local BRP dealership

709400153

Unavailable

3

Handle Grip

709400493

$14.75

4

Small Bracket | DS 650 X

709400161

$20.74

5

Large Bracket | DS 650 X

709400162

$16.89

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

7

Socket Head Screw M8 X 40 | DS 650 X

205384044

Unavailable

8

Steering Support

709400919

$20.74

9

Stiffner

709400509

$4.43

10

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

$1.80

11

Hex. Flange Elastic Nut M8

233281414

$1.14

12

COVER - Call your local BRP dealership

705000371

$7.66

13

Ball Bearing

709400439

$18.43

14

FLANGE, BEARING - Call your local BRP dealership

709400152

$8.83

15

Flat Washer 12 mm

234021410

$0.68

16

WASHER - Call your local BRP dealership

250200017

Unavailable

17

HEX. CASTELLATED NUT M12 - Call your local BRP dealership

232220413

$2.14

18

Cotter Pin

211400017

$0.25

19

Hex. Flange Screw M6 X 20

207662044

$1.66

20

Loctite 243, 10 ml

293800060

$20.77

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

22

Hex. Flange Screw M8 X 75

207687544

$7.23

23

STOPPER PLATE - Call your local BRP dealership

709400053

$10.57

24

BUSHING - Call your local BRP dealership

709400072

Unavailable

25

O-Ring

293300068

$5.29

26

Half Bushing

709400471

$13.63

27

ROD-TIE ASS'Y - Call your local BRP dealership

709400489

Unavailable

28

RH Ball Joint

709402302

$35.35

29

LH Ball Joint

709402303

$35.35

30

Nut Hexagonal RH.

232026414

$1.48

31

LH HEX. JAM NUT M12 - Call your local BRP dealership

732610020

$1.69

32

RH Knuckle | Includes 32 - 33.

709400043

Unavailable

33

WEAR RING - Call your local BRP dealership

705400056

$13.82

34

LH Knuckle | Includes 39 - 40.

709400044

Unavailable

35

WEAR RING - Call your local BRP dealership

705400056

$13.82

36

Hardened Washer

706200281

$2.34

37

Hex. Castellated Nut M12

232221414

$2.61

38

Cotter Pin

211400013

$0.32

39

THROTTLE HANDLE - Call your local BRP dealership

709400016

$55.35

40

SCREW M5 X 30 - Call your local BRP dealership

205353060

Unavailable

41

MULTI FUNCTION SWITCH - Call your local BRP dealership

710000072

Unavailable

42

SCREW M5 X 30 - Call your local BRP dealership

205453046

Unavailable

43

THROTTLE CABLE - Call your local BRP dealership

709400048

Unavailable

44

Steering Cover Foam

709400087

Unavailable

45

FOAM INSERT - Call your local BRP dealership

709400094

$5.35

46

Steering Cover

709400158

Unavailable

Steering Cover | DS 650.

709400198

Unavailable

47

RH PROTECTOR ASSY - Call your local BRP dealership | DS 650 X

709400177

$57.66

LH Protector Ass’y | DS 650 X

709400179

Unavailable

48

RH HANDLE PROTECTOR - Call your local BRP dealership | DS 650 X

709400159

$36.89

LH Handle Protector | DS 650 X

709400160

Unavailable

49

Protector Plate | DS 650 X

705000461

Unavailable

50

Pop Rivet 3/16"

293150103

$0.54

51

HANDLE BRACKET - Call your local BRP dealership | DS 650 X

709400174

$7.66

52

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

53

Loctite 406, 7 Oz

293800100

$36.99

54

END-PIECE - Call your local BRP dealership | DS 650

709400189

Unavailable

55

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable
